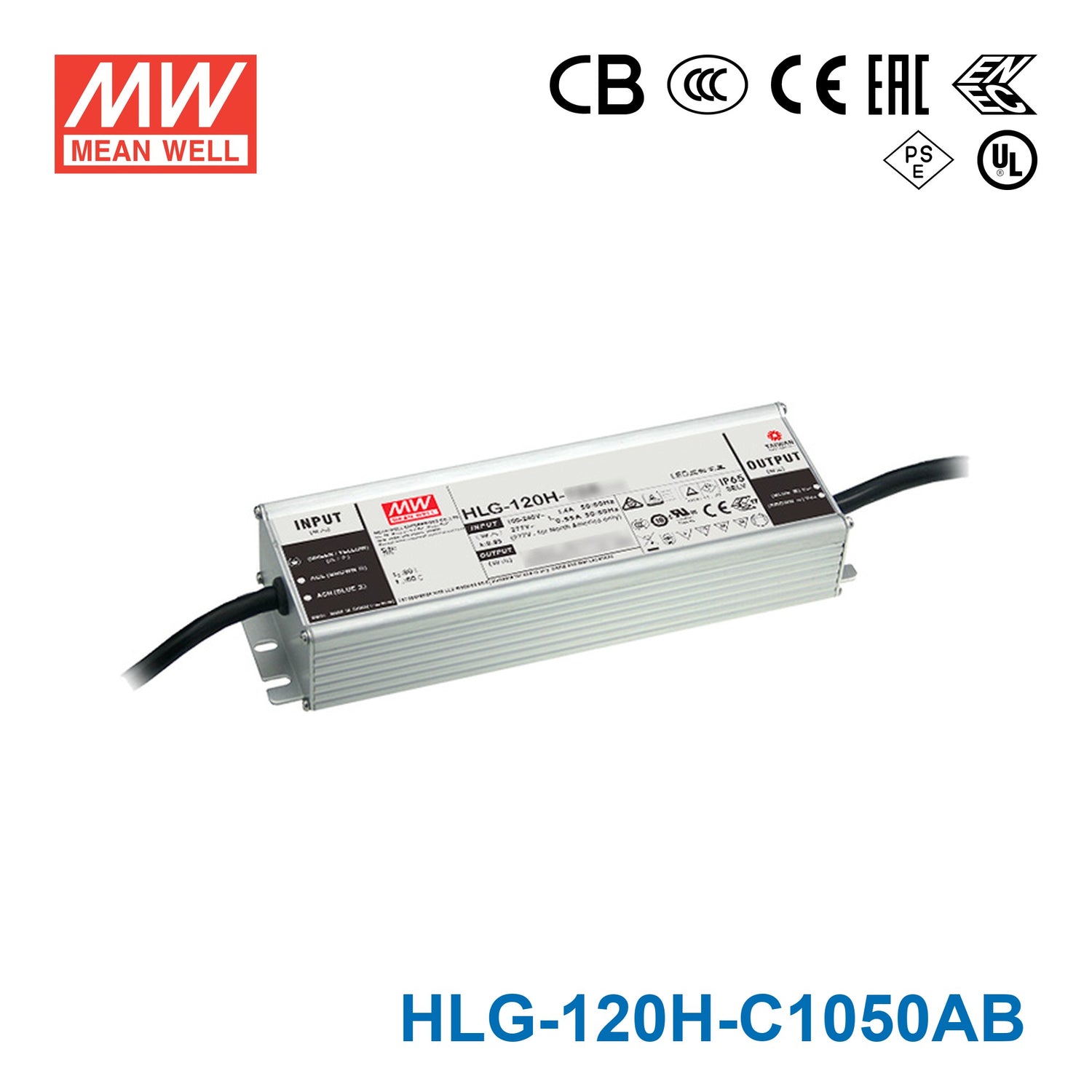

Mean Well HLG-120H-C1050AB Power Supply

Description

Features

Universal AC input (up to 305VAC) / Full range

High efficiency up to 93.5%

Built-in active PFC function, PF> 0.9 for 60% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

IP67 / IP65 design for indoor or outdoor installations

Class 2 power unit / Pass LPS

Output current adjustable through output cable or internal potentiometer

Cooling by free air convection

Suitable for dry, damp and wet location

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 100W/120W)

Optional CQC models available (A/Blank type)

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	±10% rated output voltage (A-Type only)
Current adjustment range	50%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	2500ms, 50ms, 16ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved, ENEC EN61347-1, Design refer to UL60950-1, EN60950-1
EMC standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm)
Connection Output	A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	220x 68x 38.8

Specifications

Brand

Mean Well
Series

HLG-C Series
Power Rating

155.4 Watt
Output Voltage

148 Volt
Rated Current

1.05 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

10V PWM,1-10V,Built-in Potentiometer,Resistance
Standards Met

CB,CCC,CE,EAC,ENEC,PSE,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

8.66 in
Width

2.68 in
Height

1.53 in
Weight

2.29 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-120H-C1050AB with a 1-10V dimmer for LED downlight brightness control?

Yes. The HLG-120H-C1050AB accepts a 1-10V or PWM dimming signal, making it straightforward to integrate with standard commercial dimming systems. It delivers 1050mA constant current across a 74-148V range, so you can dim high-power LED downlights smoothly while maintaining consistent color output.

Is the HLG-120H-C1050AB suitable for dimmable LED high-bay fixtures in a retail space?

Yes. At 155.4W and 1050mA constant current, the HLG-120H-C1050AB can power high-output LED fixtures used in retail environments. The built-in dimming input allows you to adjust light levels for different display areas or time-of-day schedules, and the adjustable output lets you fine-tune the drive current to the fixture's LED module.

Can the HLG-120H-C1050AB drive a series string of LED modules for channel-letter signs with dimming?

Yes, as long as the total forward voltage of the LED string falls within 74-148V. The driver provides regulated 1050mA constant current, and the dimming input lets you reduce brightness for nighttime operation or energy savings. The wide 90-305VAC input handles most commercial electrical supplies.

What dimming methods does the HLG-120H-C1050AB support?

The HLG-120H-C1050AB supports both 1-10V analog and PWM dimming signals through its built-in dimming input. It also has an adjustable potentiometer for setting the baseline output current and voltage. This combination allows both manual trimming and automated dimming control from a building management system or standalone dimmer.

How many LEDs can I run in series with the HLG-120H-C1050AB?

That depends on each LED's forward voltage. The HLG-120H-C1050AB operates in constant current mode at 1050mA with a CC voltage range of 74-148V. Your series string's total forward voltage must land within that range. For example, LEDs with a 3V forward voltage could be strung roughly 24-49 units in series, but always verify against the actual LED datasheet values.

Can the HLG-120H-C1050AB handle temperature extremes in an unheated outdoor sign cabinet?

Yes. It operates from -40°C to +90°C, which covers extreme cold in winter and heat buildup inside enclosed sign cabinets in summer. The IP65 rating also protects against dust and water jets, though the cabinet itself provides additional environmental shielding.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HLG-120H-C350A Power Supply 150.5W 350mA - Adjustable	150.5W	430V	0.35A	IP65	$49.31	View
Mean Well HLG-120H-C1050B Power Supply 155.4W 1050mA - Dimmable	155.4W	148V	1.05A	IP65	$50.49	View
Mean Well HLG-120H-C1050A Power Supply 155.4W 1050mA - Adjustable	155.4W	148V	1.05A	IP65	$49.31	View

Mean Well HLG-120H-C1050AB Power Supply 155.4W 1050mA - Adjustable and Dimmable
