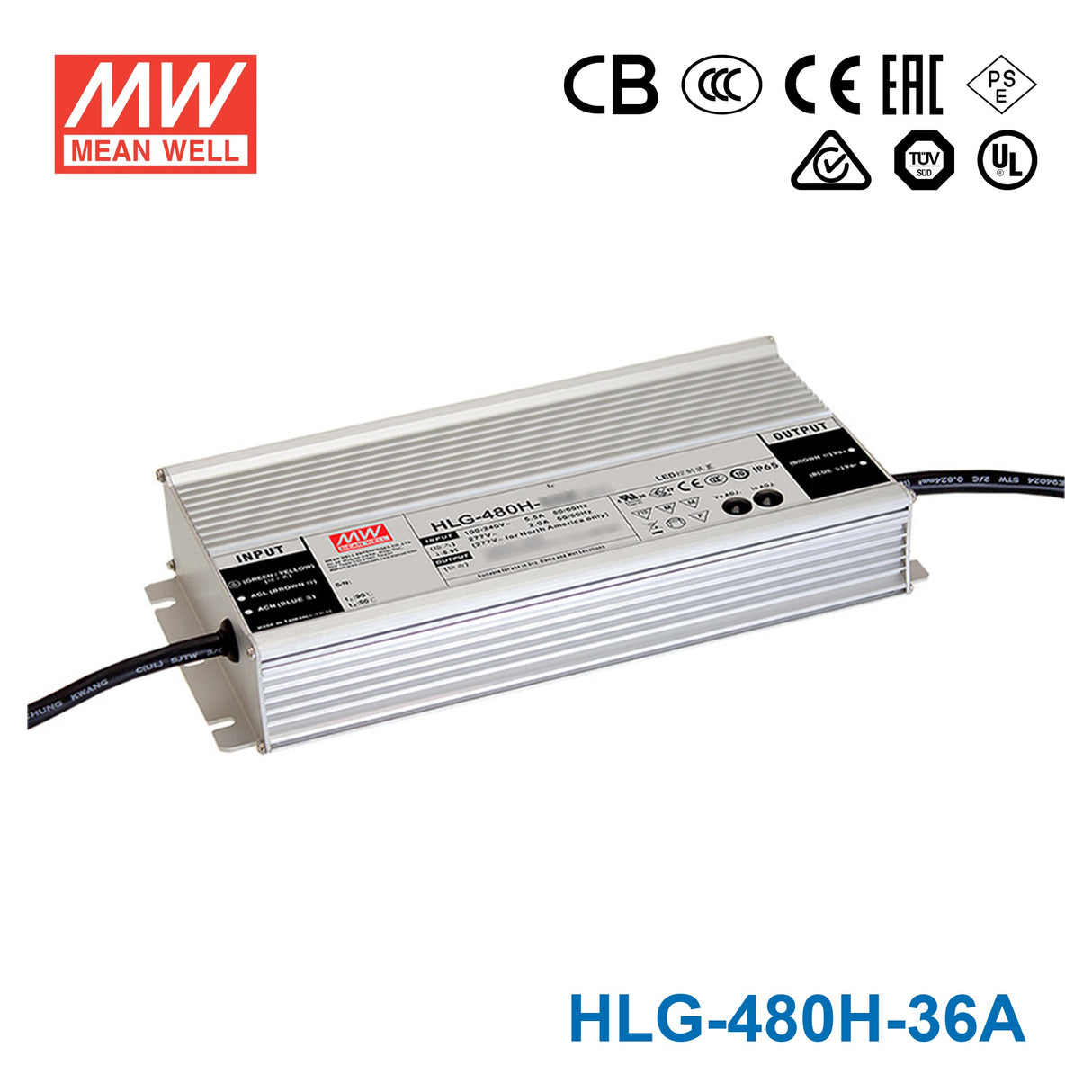

Mean Well HLG-480H-36A Power Supply 480W 36V - Adjustable
The HLG-480H is a 480W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating480 Watt
-
Output Voltage36 Volt
-
Rated Current13.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6.17 lb
::specification::
Frequently Asked Questions
Can I use the HLG-480H-36A for a large 36V LED strip project where I need to adjust the output voltage?
Yes. The HLG-480H-36A provides 480W at 36V (13.3A) with a built-in potentiometer for output voltage and current adjustment. This lets you dial in the precise voltage your 36V LED strips need within the 18-36V constant-current range, which is helpful for compensating voltage drop in long cable runs.
Is the HLG-480H-36A suitable for 36V LED grow light panels in a greenhouse?
Yes. At 480W it can power high-output 36V LED grow-light arrays. The adjustable output lets you match the driver voltage to your panel's exact forward voltage requirement, maximizing electrical efficiency. The -40°C to +90°C operating range and IP65 rating handle typical greenhouse humidity and temperature fluctuations.
Can the HLG-480H-36A drive 36V LED fixtures in a retail display or showroom?
Yes. With 480W at 36V and adjustable output, it can power extensive 36V LED track lighting, cove lighting, or display case illumination. The ability to fine-tune voltage ensures optimal brightness and efficiency for each fixture string. Its compact 262 x 125 x 43.8 mm size allows installation in ceiling voids or equipment rooms.
How many meters of 36V LED strip can the HLG-480H-36A power?
Divide 480W by your strip's wattage per meter. A 36V strip rated at 12W/m could run up to 40 meters (480W / 12W per meter = 40m). A strip at 20W/m would allow 24 meters. Always check your strip's rated power per meter and keep total draw at or below 480W.
Is the HLG-480H-36A appropriate for a fully exposed outdoor rooftop installation?
Not recommended without additional protection. The HLG-480H-36A is rated IP65, which guards against dust and low-pressure water spray but is not designed for direct rain exposure, submersion, or standing water. For exposed rooftop installations, mount it inside a weatherproof enclosure or choose the IP67-rated HLG-480H-36 instead.
