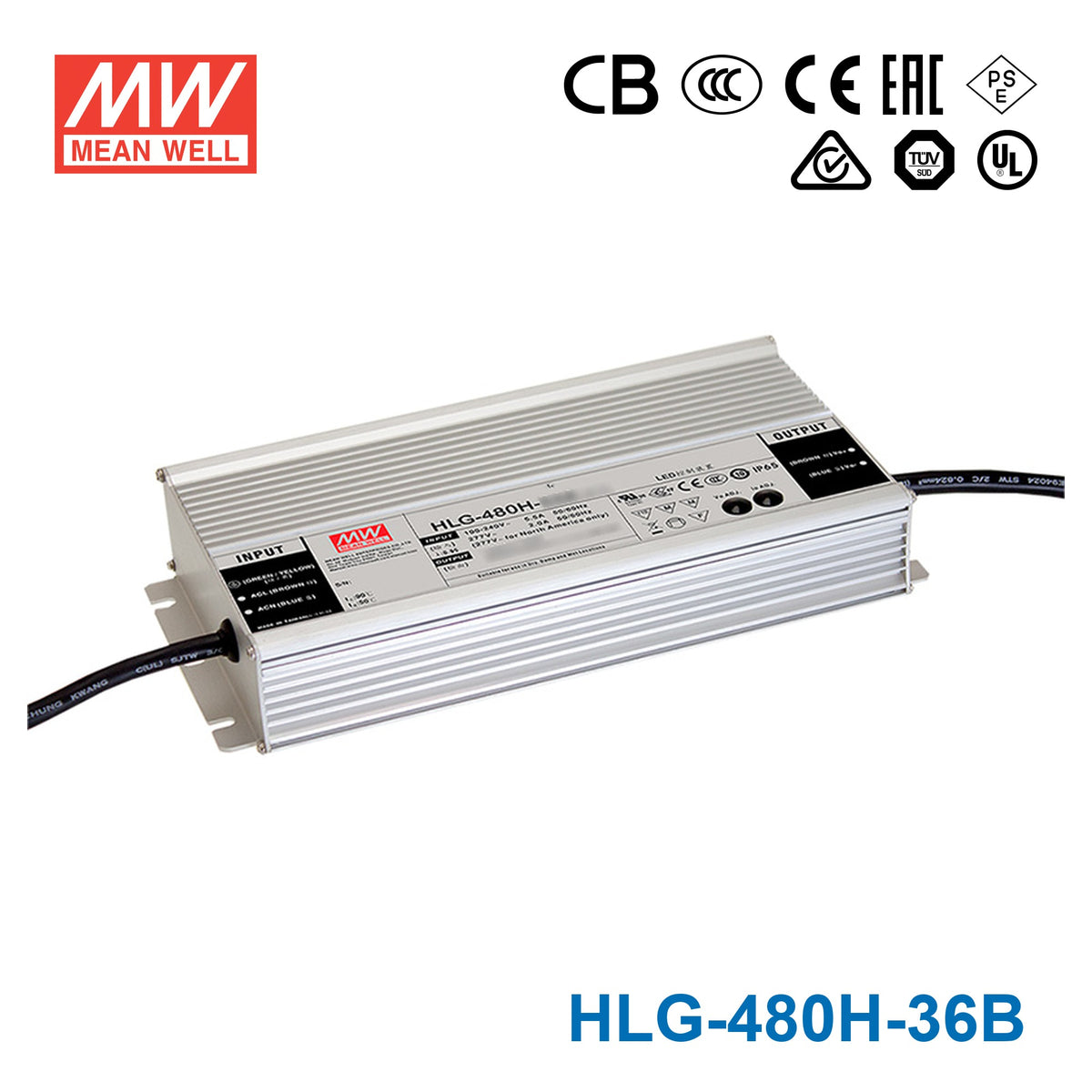

Mean Well HLG-480H-36B Power Supply 480W 36V- Dimmable
The HLG-480H is a 480W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating480 Watt
-
Output Voltage36 Volt
-
Rated Current13.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6.17 lb
::specification::
Frequently Asked Questions
Can I use the HLG-480H-36B for outdoor 36V LED strip lighting exposed to rain?
Yes. The HLG-480H-36B delivers 480W at 36V and carries an IP67 waterproof rating, meaning it can withstand temporary submersion up to 1 meter. It is well suited for fully exposed outdoor LED strip installations where rain, snow, or washdown conditions are expected.
Is the HLG-480H-36B suitable for powering dimmable 36V LED flood lights?
Yes. The B suffix indicates a dimming signal input (1-10V, PWM, or resistance), so you can control brightness externally. With 480W available at 36V and 13.3A, it can drive high-power 36V LED flood light arrays while allowing scene-level dimming through a compatible controller.
Can the HLG-480H-36B power 36V LED modules in an outdoor commercial sign?
Yes. At 480W and 36V output, it handles large signage loads. The IP67 waterproof enclosure means you can mount it outdoors without an additional weatherproof box. Its wide 90-305VAC input also accommodates varying mains voltages found at commercial sites around the world.
How many meters of 36V LED strip can the HLG-480H-36B drive?
That depends on the strip's power consumption per meter. The HLG-480H-36B provides up to 480W at 36V. For instance, if your strip uses 20W/m, you could run up to 24 meters (480W / 20W per meter = 24m). Always check your strip's rated power per meter and keep total load at or below 480W.
Can the HLG-480H-36B operate in extreme cold or hot environments?
Yes. It is rated for an operating temperature range of -40°C to +90°C, which covers extreme winter cold and high-ambient industrial or desert environments. Combined with its IP67 waterproof aluminium casing, it is designed for harsh outdoor conditions year-round.
