Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

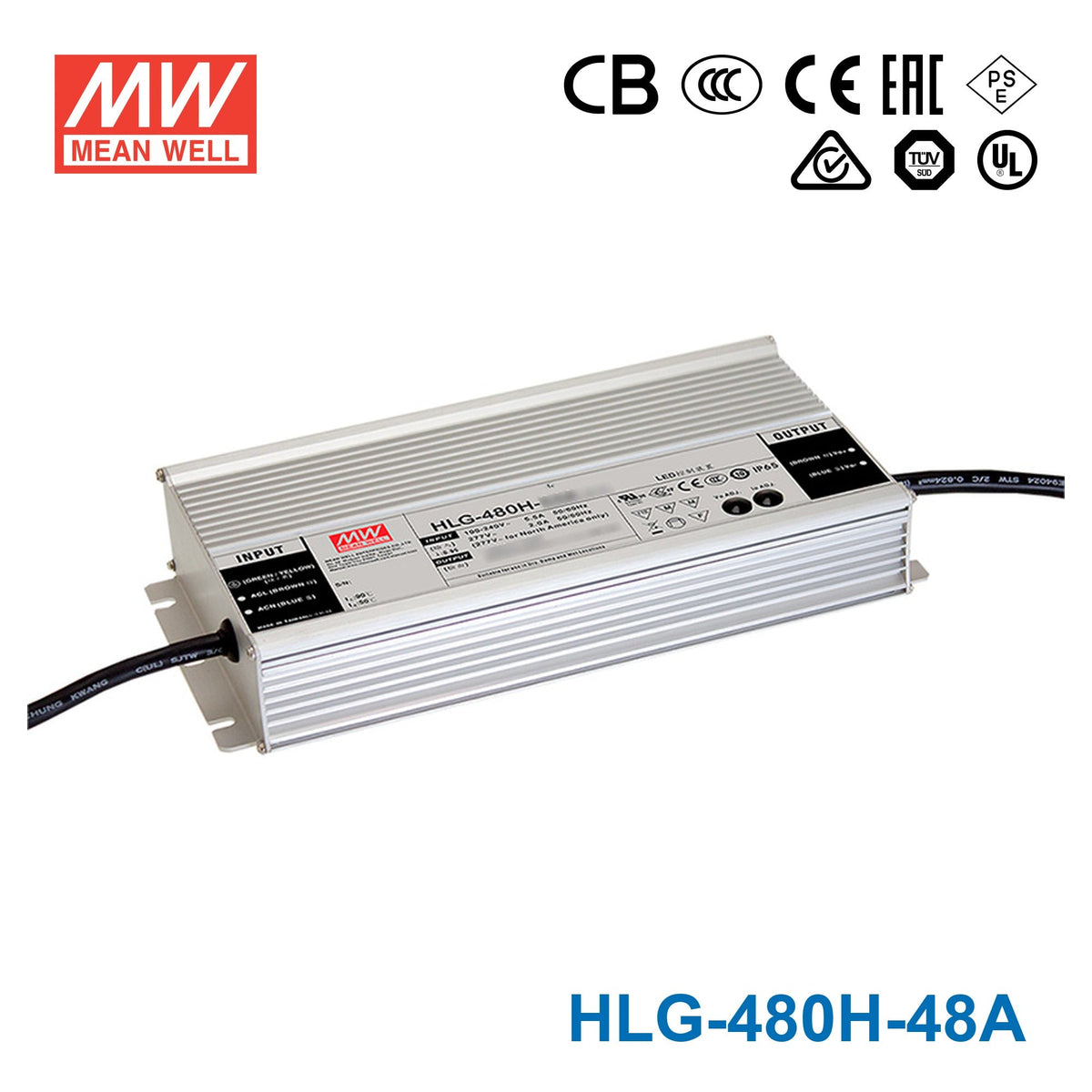

Mean Well HLG-480H-48A Power Supply 480W 48V - Adjustable
The HLG-480H is a 480W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating480 Watt
-
Output Voltage48 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6.17 lb
::specification::
Frequently Asked Questions
Can I use the HLG-480H-48A to fine-tune output for a 48V LED lighting array?
Yes. The A suffix indicates a built-in potentiometer for adjusting output voltage and current. With a CC range of 24-48V, you can trim the 48V output to precisely match your LED array's optimal drive point. This is useful for maximizing efficiency or extending LED lifespan by avoiding over-driving.
Is the HLG-480H-48A suitable for powering 48V LED strips in a long commercial corridor?
Yes. At 480W and 48V, it can handle long LED strip runs common in commercial corridors. The 48V output reduces voltage drop over distance compared to lower-voltage drivers, and the adjustable output lets you compensate for any remaining drop by trimming the voltage slightly upward at the source.
Can the HLG-480H-48A drive 48V LED horticultural lighting in a greenhouse?
Yes. With 480W at 48V and 10A, it has capacity for high-power grow light panels. The adjustable output lets you dial in the exact drive current for different growth stages. However, its IP65 rating protects against water jets and dust but not submersion, so keep it away from direct flooding or standing water in the greenhouse.
How many meters of 48V LED strip can the HLG-480H-48A handle?
Divide 480W by the strip's power rating per meter. A 48V strip consuming 10W/m could run up to 48 meters (480W / 10W per meter = 48m). Always verify your strip's rated power per meter and ensure total load remains at or below 480W.
Is the HLG-480H-48A rated for damp indoor environments like parking garages?
Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, which covers the splashing, dripping, and humidity found in parking garages, loading docks, and similar damp indoor spaces. For fully submerged or rain-exposed locations, choose the IP67-rated HLG-480H-48 or HLG-480H-48B.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-480H Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-480H-24B Power Supply 480W 24V- Dimmable | 480W | 24V | 20A | IP67 | $142.65 | View |
| Mean Well HLG-480H-24 Power Supply 480W 24V | 480W | 24V | 20A | IP67 | $124.13 | View |

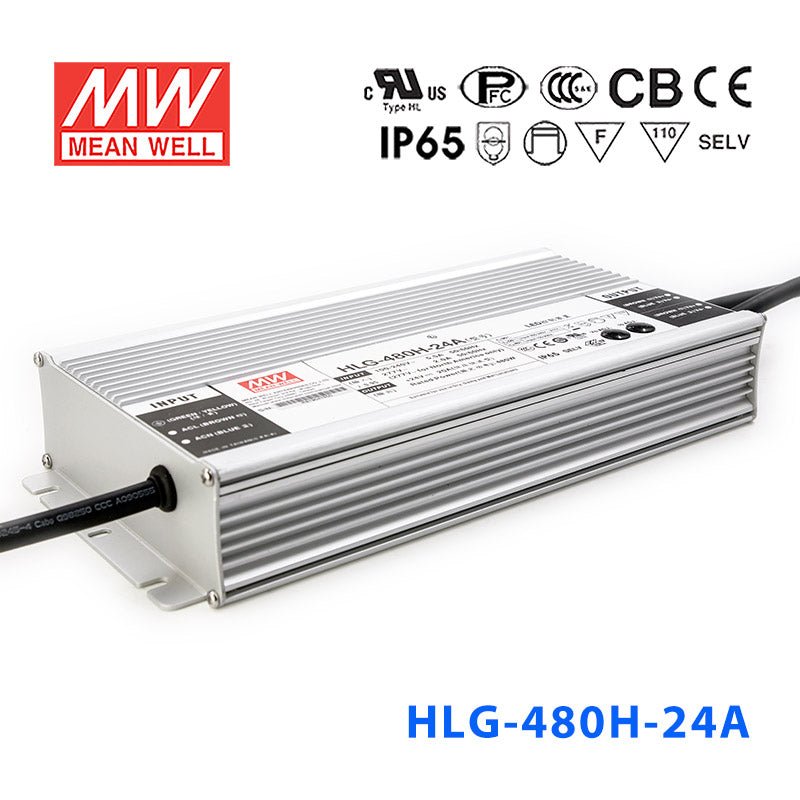

| Mean Well HLG-480H-24A Power Supply 480W 24V - Adjustable | 480W | 24V | 20A | IP65 | $138.61 | View |
| Mean Well HLG-480H-48B Power Supply 480W 48V- Dimmable | 480W | 48V | 10A | IP67 | $142.65 | View |
| Mean Well HLG-480H-54AB Power Supply 480W 54V - Adjustable and Dimmable | 480W | 54V | 8.9A | IP65 | $151.52 | View |
