Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

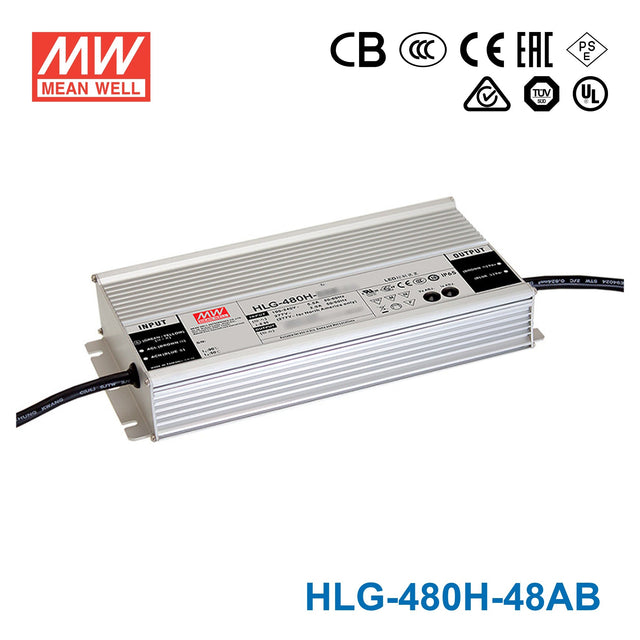

Mean Well HLG-480H-48AB Power Supply 480W 48V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-480H-48AB Power Supply 480W 48V - Adjustable and Dimm...
The HLG-480H is a 480W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating480 Watt
-
Output Voltage48 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6.17 lb
::specification::
Frequently Asked Questions
Can I use the HLG-480H-48AB to power a large 48V LED strip installation with dimming?
Yes. The HLG-480H-48AB delivers 480W at 48V and includes both an output adjustment potentiometer and a 1-10V/PWM dimming input. This makes it well suited for lengthy 48V LED strip runs in commercial or architectural projects where brightness control is required.
Is the HLG-480H-48AB suitable for powering 48V LED signage with brightness scheduling?
Yes. With 480W of output at 48V and built-in dimming capability, this driver can handle large channel letter signs or illuminated sign cabinets running on 48V LED modules. The dimming input allows connection to a timer or automation controller for day/night brightness scheduling.
Can the HLG-480H-48AB drive 48V LED high-bay or warehouse lighting?
Yes. At 480W and 10A of output current, the HLG-480H-48AB can power high-output 48V LED fixtures used in warehouses or industrial spaces. The adjustable output lets you fine-tune voltage to match your fixture string, and the dimming input supports occupancy-based or daylight-harvesting dimming.
How many meters of 48V LED strip can the HLG-480H-48AB support?
That depends on the strip's rated power per meter. The HLG-480H-48AB supplies up to 480W at 48V. For example, a strip rated at 20W/m could run up to 24 meters (480W / 20W per meter = 24m). Always check your strip's rated power per meter and keep total load at or below 480W.
Can the HLG-480H-48AB be mounted in a covered outdoor location?
Yes. Its IP65 rating protects against dust ingress and low-pressure water jets, so it is suitable for covered patios, soffits, or ventilated outdoor enclosures. For fully exposed or submersible installations, consider the IP67-rated HLG-480H-48B instead.
What are the differences between the HLG-480H-48, 48A, 48AB, and 48B?
All four share the same 480W / 48V / 10A core specs and aluminium casing. The base HLG-480H-48 has no output adjustment or dimming and is IP67 waterproof. The -48A adds an output adjustment potentiometer (IP65). The -48AB adds both adjustment and 1-10V/PWM dimming (IP65). The -48B provides dimming input only and retains IP67 waterproofing.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-480H Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-480H-24B Power Supply 480W 24V- Dimmable | 480W | 24V | 20A | IP67 | $142.65 | View |
| Mean Well HLG-480H-24 Power Supply 480W 24V | 480W | 24V | 20A | IP67 | $124.13 | View |
| Mean Well HLG-480H-24A Power Supply 480W 24V - Adjustable | 480W | 24V | 20A | IP65 | $138.61 | View |
| Mean Well HLG-480H-48B Power Supply 480W 48V- Dimmable | 480W | 48V | 10A | IP67 | $142.65 | View |
| Mean Well HLG-480H-54AB Power Supply 480W 54V - Adjustable and Dimmable | 480W | 54V | 8.9A | IP65 | $151.52 | View |
