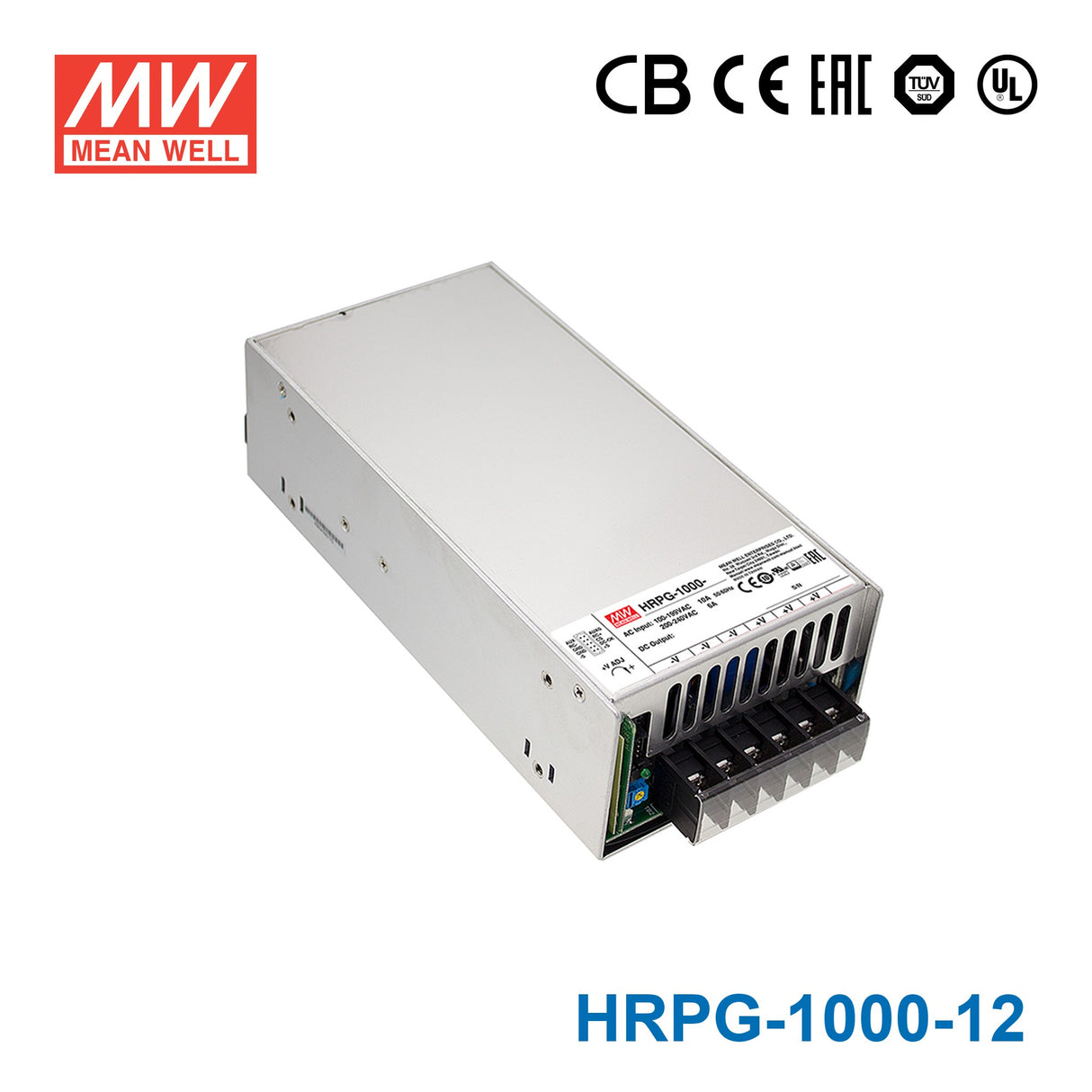

Mean Well HRPG-1000-12 Power Supply 960W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPG-1000-12 Power Supply 960W 12V
HRPG-1000 is a single output enclosed type AC/DC power supply providing 1000 W output power for a wide range of industrial applications. This series operates for 90-264 VAC input voltage and offers models with different rated voltage ranging between 12 and 48 V that can satisfy the demands for all kinds of industrial equipments. Each model is cooled by the built-in fan with speed control, working for the temperature up to 70°C. Moreover, HRPG-1000 has various built-in functions such as auxiliary power, remote sense and remote on-off control, offering vast design flexibility for industrial application.
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓PF>0.95
- ✓High efficiency up to 94%
- ✓Withstand 300VAC surge input for 5 seconds
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Built-in cooling fan ON-OFF control • Current sharing up to 4000W (3+1)
- ✓Built-in DC OK signal
- ✓Built-in remote ON-OFF control
- ✓Standby 5V@0.3A
- ✓Built-in remote sense function
- ✓No load power consumption<0.75W (Note.6)
- ✓5 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating960 Watt
-
Output Voltage12 Volt
-
Rated Current80 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-1000-12 for a high-current 12V industrial system?
Yes, if the system needs 12V constant voltage and stays within 80A and 960W. That output level is suited to larger 12V industrial, automation, or embedded loads that need substantially more current than smaller open-frame supplies provide.
Is the HRPG-1000-12 suitable for 12V rack equipment or a low-profile power shelf?
It can be a strong fit for 12V rack or shelf applications because it combines 960W output with a 1U low profile form factor. Its dimensions are 218.0 × 105.0 × 63.5 mm, which helps when vertical space is limited.
Can this model power multiple 12V loads in one automation or IT enclosure?
It can supply grouped 12V loads as long as the combined requirement remains within 80A and 960W. The PF is greater than 0.95 and the efficiency is up to 90%, which can be useful in larger systems where input quality and heat matter.
Would the HRPG-1000-12 work for 12V burn-in, test, or embedded production fixtures?
Yes, for 12V fixtures that need a regulated high-current source up to 80A. The 90-264VAC input range also supports deployment across sites with different AC input standards.
How does the HRPG-1000-12 compare with the other HRPG-1000 outputs?
The standard HRPG-1000 models listed are 12V 960W 80A, 15V 960W 64A, 24V 1008W 42A, and 48V 1008W 21A. The related HRPG-1000N3 models listed are 12V 1000W 80A, 24V 1000W 42A, 28V 1000W 28A, and 21V 1000W 21A, so selection comes down to required voltage first and then current and wattage at that voltage.
Is the HRPG-1000-12 suitable for outdoor or high-temperature environments?
The operating temperature range is -40°C to +70°C, so the thermal range is broad for protected equipment spaces. No IP rating is listed in the provided specs, so outdoor exposure or washdown use should not be assumed from this information alone.
