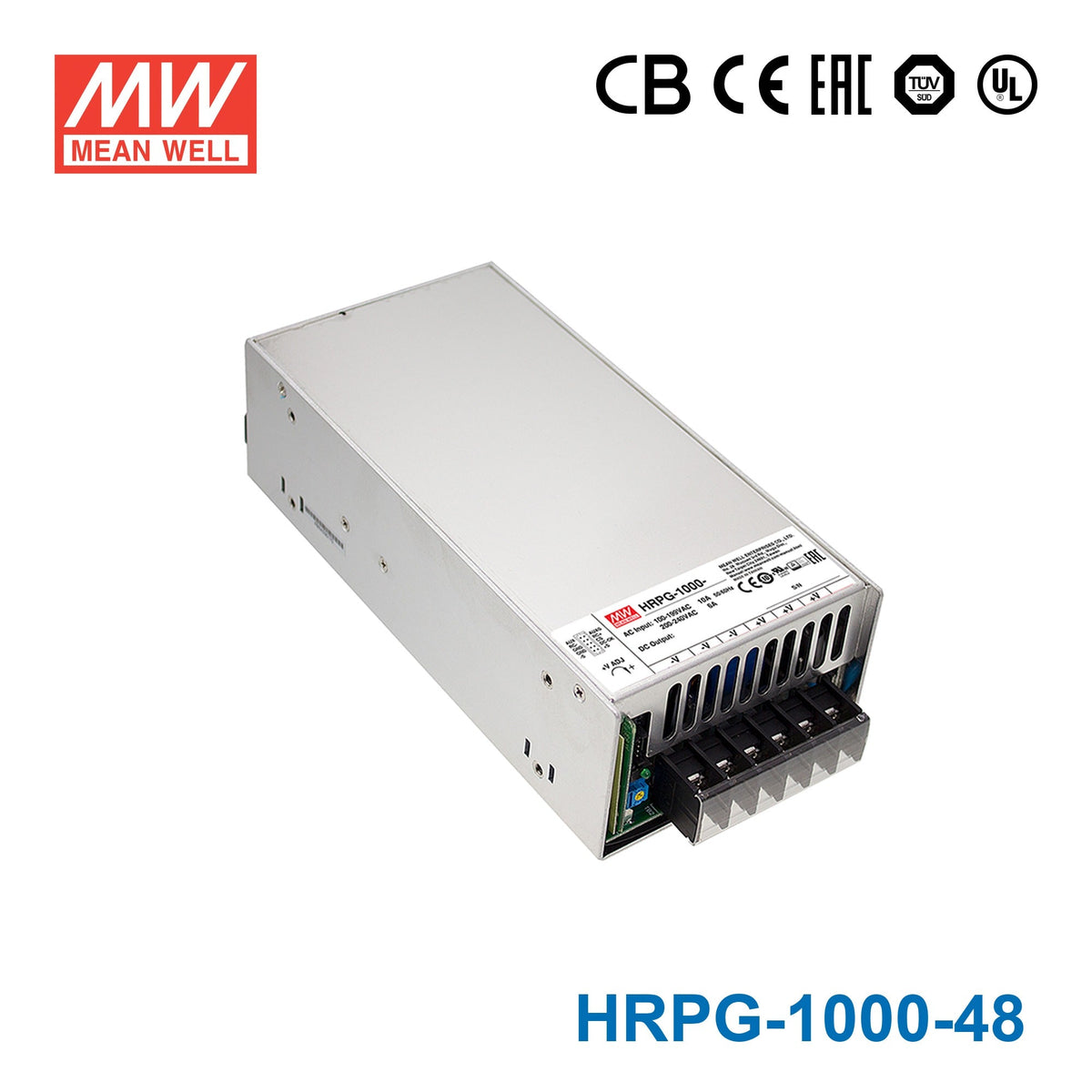

Mean Well HRPG-1000-48 Power Supply 1008W 48V

HRPG-1000 is a single output enclosed type AC/DC power supply providing 1000 W output power for a wide range of industrial applications. This series operates for 90-264 VAC input voltage and offers models with different rated voltage ranging between 12 and 48 V that can satisfy the demands for all kinds of industrial equipments. Each model is cooled by the built-in fan with speed control, working for the temperature up to 70°C. Moreover, HRPG-1000 has various built-in functions such as auxiliary power, remote sense and remote on-off control, offering vast design flexibility for industrial application.

Features

• Universal AC input / Full range
• Built-in active PFC function
• PF>0.95
• High efficiency up to 94%
• Withstand 300VAC surge input for 5 seconds
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Built-in cooling fan ON-OFF control • Current sharing up to 4000W (3+1)
• Built-in DC OK signal
• Built-in remote ON-OFF control
• Standby 5V@0.3A
• Built-in remote sense function
• No load power consumption<0.75W (Note.6)
• 5 years warranty

Applications

• Factory control or automation apparatus
• Test and measurement instrument
• Laser related machine
• Aging equipment
• RF application
