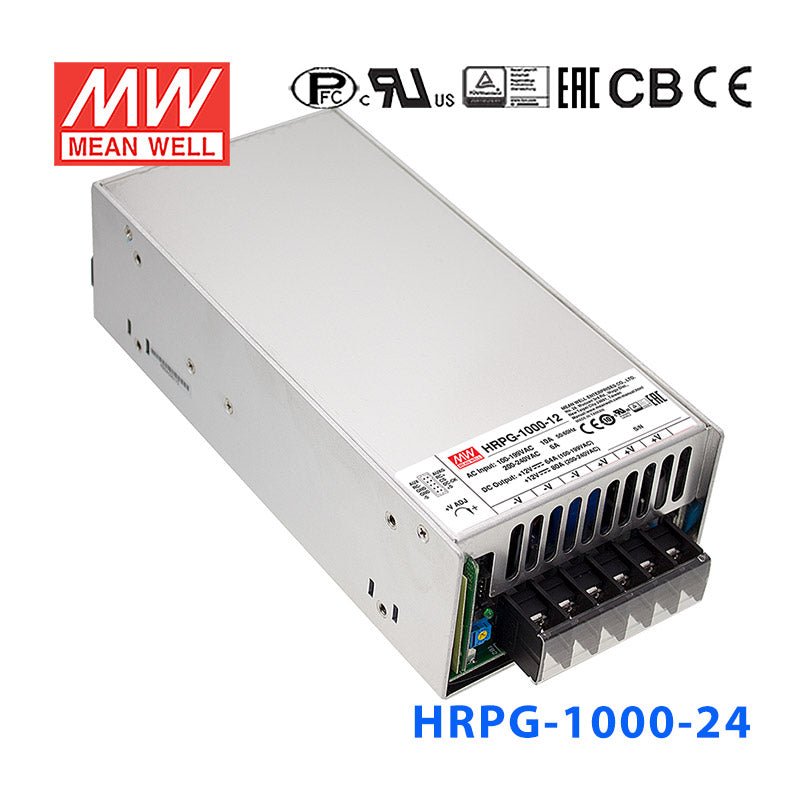

Mean Well HRPG-1000-24 Power Supply 1008W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPG-1000-24 Power Supply 1008W 24V
HRPG-1000 is a single output enclosed type AC/DC power supply providing 1000 W output power for a wide range of industrial applications. This series operates for 90-264 VAC input voltage and offers models with different rated voltage ranging between 12 and 48 V that can satisfy the demands for all kinds of industrial equipments. Each model is cooled by the built-in fan with speed control, working for the temperature up to 70°C. Moreover, HRPG-1000 has various built-in functions such as auxiliary power, remote sense and remote on-off control, offering vast design flexibility for industrial application.
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓PF>0.95
- ✓High efficiency up to 94%
- ✓Withstand 300VAC surge input for 5 seconds
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Built-in cooling fan ON-OFF control • Current sharing up to 4000W (3+1)
- ✓Built-in DC OK signal
- ✓Built-in remote ON-OFF control
- ✓Standby 5V@0.3A
- ✓Built-in remote sense function
- ✓No load power consumption<0.75W (Note.6)
- ✓5 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating1008 Watt
-
Output Voltage24 Volt
-
Rated Current42 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-1000-24 for a 24V PLC, industrial control, or automation cabinet?
Yes, this model is built for constant-voltage 24V systems and can supply up to 42A, with a total output rating of 1008W. That makes it suitable for larger 24V control and automation loads that need much more capacity than the 156W, 201.6W, 336W, 451.2W, or 648W 24V versions in the same series.
Is the HRPG-1000-24 a good fit for a centralized 24V power bus in industrial equipment?
It can be, because it provides 1008W at 24V from a single constant-voltage source and accepts 90-264VAC input. The 1U low-profile design and 218.0 x 105.0 x 63.5 mm dimensions also make it easier to place in equipment where high 24V power density matters.
Can this power supply support 24V embedded or machine electronics with sustained higher current demand?
Yes, the HRPG-1000-24 is intended for fixed 24V loads and provides up to 42A. Compared with smaller 24V models in the HRPG family, it offers substantially more current headroom for larger embedded, automation, or industrial systems that stay within its 1008W rating.
How does the HRPG-1000-24 compare with other 1000-class HRPG models?
The HRPG-1000 family includes HRPG-1000-12 at 960W, 12V, 80A; HRPG-1000-15 at 960W, 15V, 64A; this HRPG-1000-24 at 1008W, 24V, 42A; and HRPG-1000-48 at 1008W, 48V, 21A. Related HRPG-1000N3 models are 1000W, 12V, 80A; 1000W, 24V, 42A; 1000W, 28V, 28A; and 1000W, 21V, 21A for the -12, -24, -36, and -48 versions respectively.
Can the HRPG-1000-24 be used in cold or hot operating areas?
Its specified operating range is -40C to +70C, so it is rated for both low-temperature and elevated-temperature operation. No IP rating is provided in the specs, so the listed data does not confirm outdoor, wet-location, or dust-exposed use.
