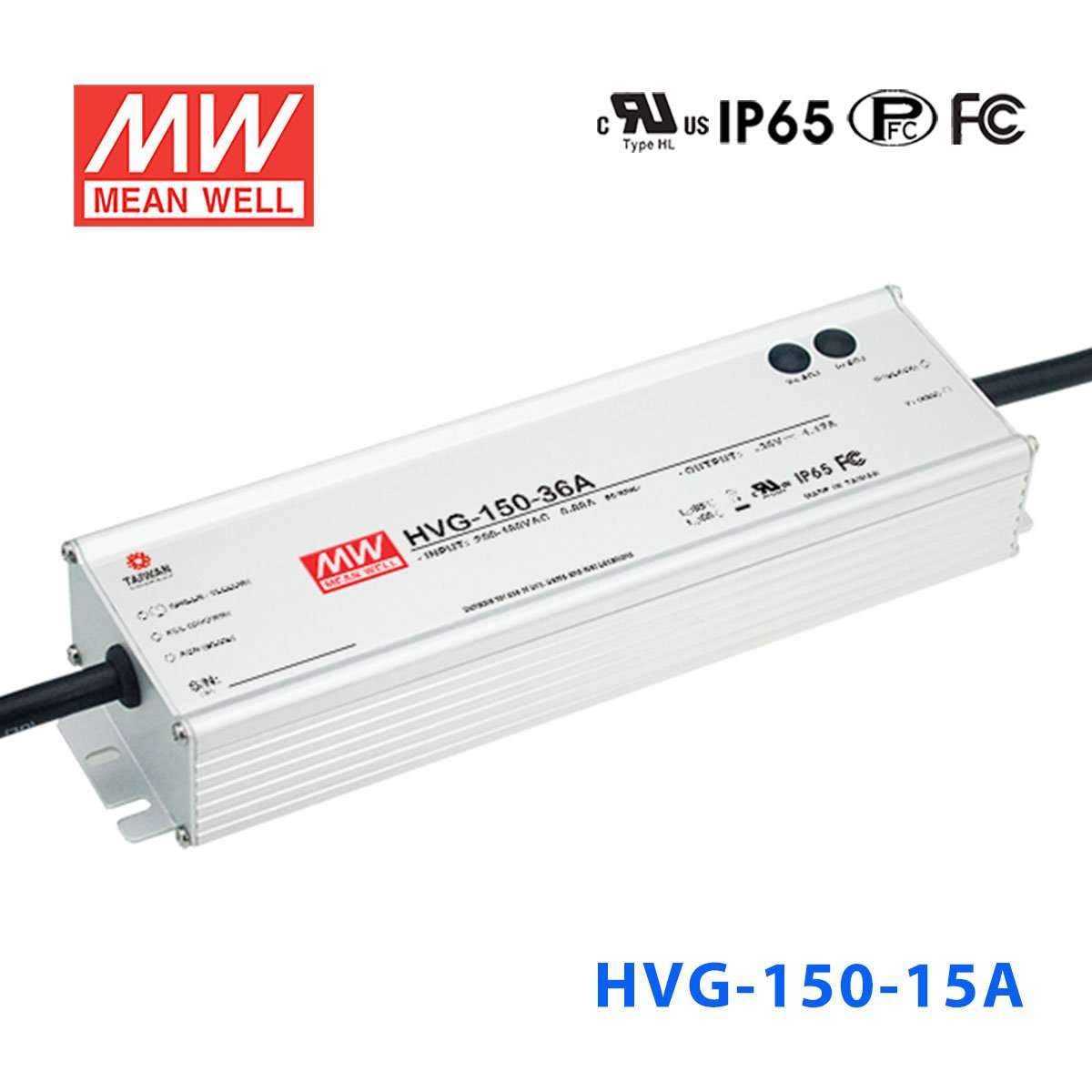

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HVG-150-15A Power Supply 150W 15V - Adjustable 10A

Name: Mean Well HVG-150-15A Power Supply 150W 15V - Adjustable 10A
Brand: Mean Well
SKU: HVG-150-15A
Price: 78.72 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVG-150-15A

$78.72 USD

Shipping calculated at checkout.

Select model — 9 in this family

HVG-150-15A

HVG-100-15A Adjustable Backorder $75.83 USD

HVG-100-15AB Adjustable and Dimmable Backorder $77.79 USD

HVG-100-15B Dimmable Backorder $77.72 USD

HVG-150-15A Adjustable Backorder $78.72 USD

HVG-150-15AB Adjustable and Dimmable Backorder $81.81 USD

HVG-150-15B Dimmable Backorder $80.73 USD

HVG-65-15A Adjustable Low stock $59.16 USD

HVG-65-15AB Adjustable and Dimmable Backorder $61.98 USD

HVG-65-15B Dimmable Backorder $61.05 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HVG-150-15A is the 15V output model of this series: rated current 10A, rated power 150W, typical efficiency 89%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HVG-150 series is a 150W AC/DC LED power supply featuring the dual mode constant voltage and constant current output. HVG-150 operates from 180~528 VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91.5%, with the fanless design, the series is able to operate from -40℃ through as high as +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifet ime>50000 hours
5 years warranty

Specifications

HVG-150-15ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 15V
CONSTANT CURRENT REGION^Note.4: 8.25~15V
RATED CURRENT: 10A
RATED POWER: 150W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 13.5 ~ 17V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 5.5 ~ 10A
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.5%
SETUP, RISE TIME^Note.6: 500ms, 80ms /230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 18ms/347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC [@ load≧60% only for 12V model]; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD) ” section)
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.) 347VAC: 0.5A
AC CURRENT (Typ.) 480VAC: 0.38A
INRUSH CURRENT (Typ.): COLD START 35A(twidth=790μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 18 ~ 21V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(-40 ~ +75℃ for 12V model, -40 ~ +80℃ for 15V model)(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃(+75℃ for 12V model, +80℃ for 15V model)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.7: UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@ load≧55% load,@ load≧60% only for 12V model ) ; EN61000-3-3, FCC Part 15 Subpart,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1796.5K hrs min. Telcordia SR-332(Bellcore) ; 158.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 245*68*38.8mm (L*W*H)
PACKING: 1.24Kg; 12pcs/15.9Kg/0.78CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A (this model): Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVG-150-15A Block Diagram — Block Diagram

HVG-150-15A OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

HVG-150-15A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVG-150-15A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVG-150-15A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

HVG-150-15A Dimensions (mm) — Dimensions (mm)

HVG-150-15A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVG-150-15A datasheetHVG-150-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates2

UL Certificate(HVG-150)(EN) PDF Download

FCC Certificate(HVG-150)(EN) PDF Download

Test reports1

Test Report(HVG-150-15)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-150-15A for a 15V LED strip lighting project?

Yes, if your strip system is designed for 15V and the total load stays within 150W. At 15V, that equals a maximum of 10A, and you should check your strip rated power per meter before sizing the run.

Is this driver suitable for 15V illuminated signage or channel letter lighting?

It can be used for 15V signage lighting loads that stay within the unit's 150W and 10A output limits. The IP65 water-resistant housing also makes it a fit for sign applications exposed to outdoor weather rather than dry indoor-only spaces.

Can this power supply run 15V architectural accent lighting in demanding temperatures?

This model is rated for operation from -40°C to +80°C, so it is suited to lighting systems that see very cold starts or high ambient heat. Your 15V lighting load still needs to stay within 150W total output.

Can I use this for a 15V linear lighting or display lighting system?

Yes, for 15V linear or display lighting where the driver capacity does not exceed 150W. Because the output is 15V and 10A, it is best matched to 15V systems rather than 12V, 20V, 24V, or higher-voltage products.

How much 15V LED strip can the HVG-150-15A support?

The maximum strip load is 150W total, which is 10A at 15V. To estimate strip length, use 150W ÷ your strip's rated watts per meter, and check your strip rated power per meter before final sizing.

Is the HVG-150-15A okay for outdoor or wet-location lighting?

The HVG-150-15A is rated IP65, making it suitable for outdoor and wet-location use where protection from weather is needed. It is not the IP67 waterproof variant, so choose based on the specific exposure level your project requires.
