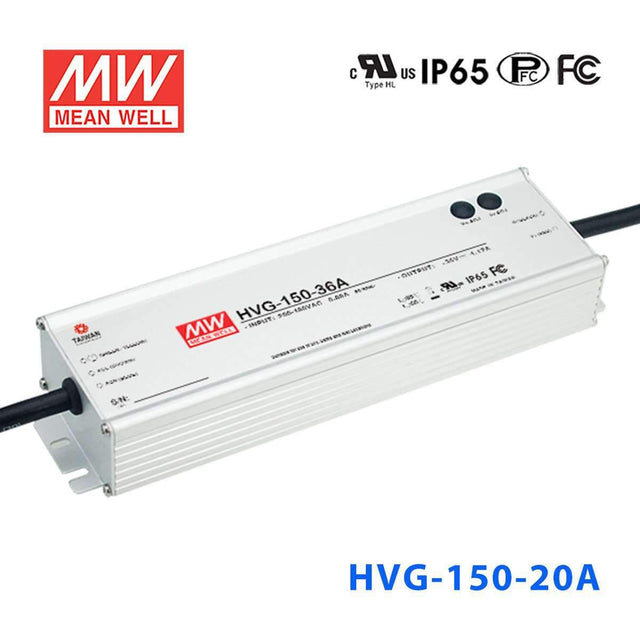

Mean Well HVG-150-20A Power Supply 150W 20V - Adjustable
The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating150 Watt
-
Output Voltage20 Volt
-
Rated Current7.5 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVG-150-20A for a 20V LED strip lighting project?
Yes, if your strip system is designed for 20V and the total load does not exceed 150W. At 20V, that corresponds to 7.5A maximum, and you should check your strip rated power per meter before sizing the run.
Is this driver suitable for 20V signage or lightbox lighting?
It can be used for 20V signage and lightbox lighting loads that stay within 150W and 7.5A. The IP65 water-resistant housing also supports use in outdoor sign environments where weather protection is needed.
Can the HVG-150-20A be used in hot or cold outdoor lighting conditions?
This model is rated for operation from -40°C to +85°C, so it is built for a wider temperature span than many indoor-only power supplies. Your 20V lighting load still needs to remain within the 150W output limit.
Can I use this for 20V linear or commercial lighting equipment?
Yes, for 20V lighting equipment that fits within the 11-20V constant current range and the 150W maximum output. It also accepts 180-528VAC input, which can help in sites with varied AC supply conditions.
How much 20V LED strip can the HVG-150-20A support?
The maximum supported strip power is 150W total, which is 7.5A at 20V. To estimate strip length, use 150W ÷ your strip's rated watts per meter, and check your strip rated power per meter before final sizing.
Is the HVG-150-20A suitable for outdoor or wet-location use?
This unit is rated IP65 water-resistant, so it is suited to outdoor and wet-location lighting where the driver needs weather protection. It is not the waterproof IP67 version, so enclosure choice should match the exposure level of the job.
