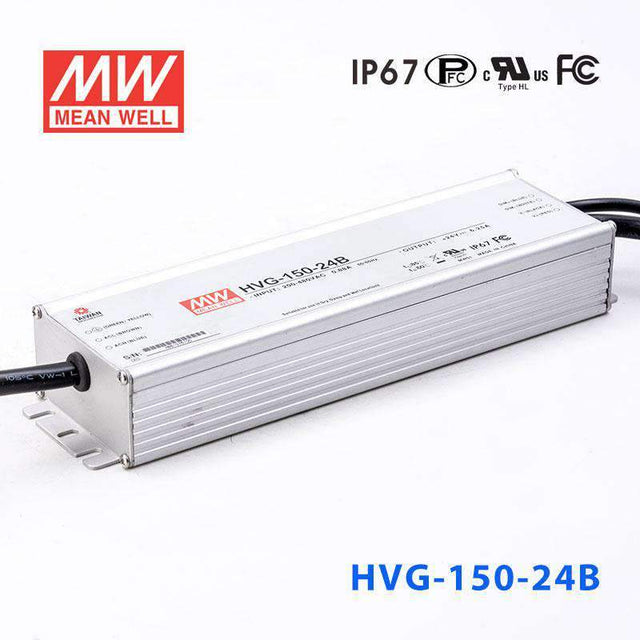

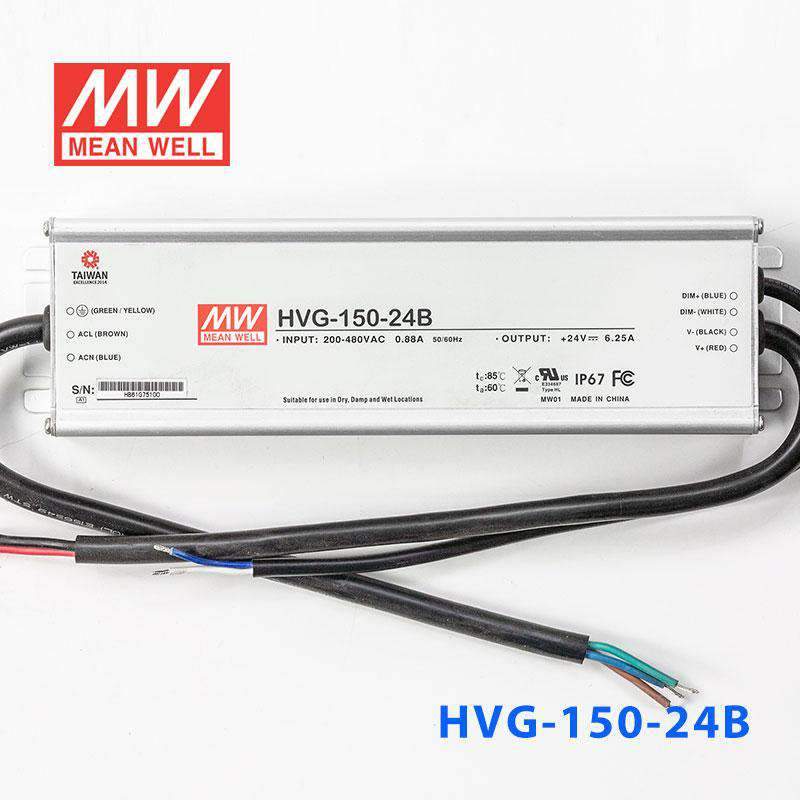

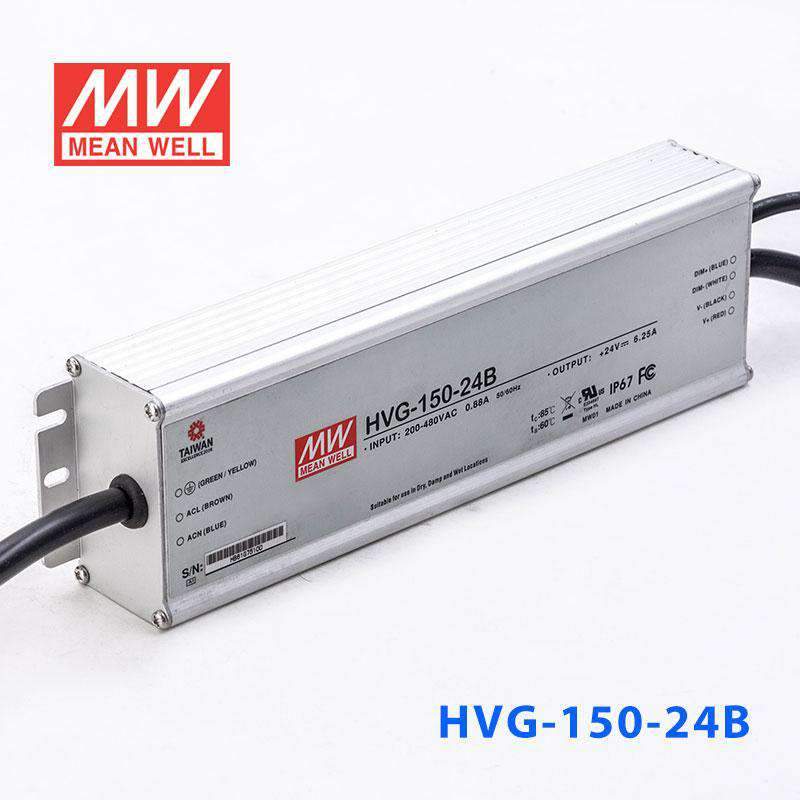

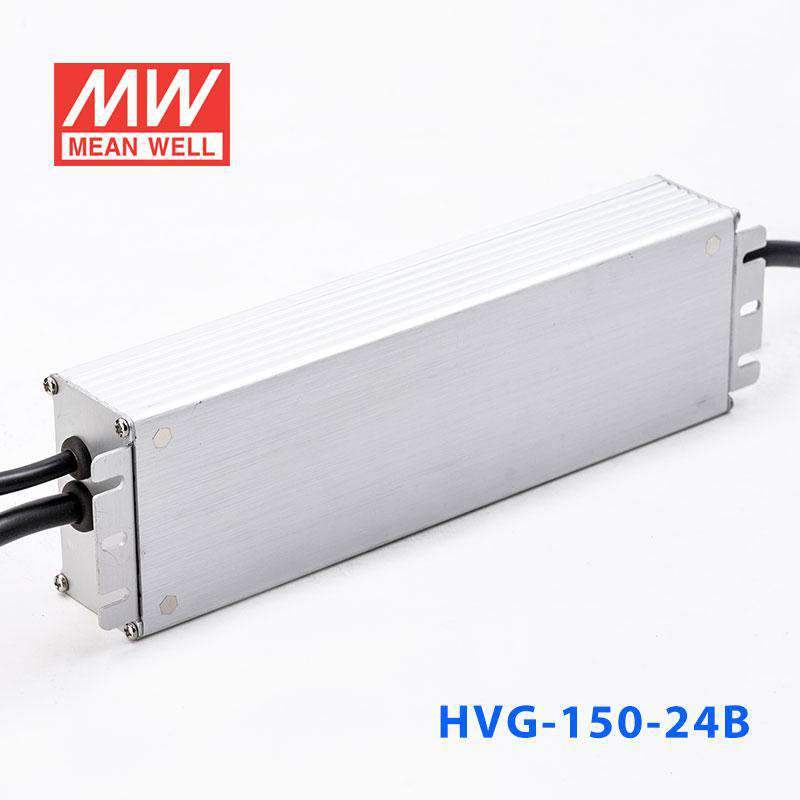

Mean Well HVG-150-24B Power Supply 150W 24V - Dimmable
The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVG-150-24B for outdoor 24V LED strip lighting?
Yes, if the strip is designed for 24V operation and the total load stays within 150W. This driver provides 24V at up to 6.25A and uses an IP67 waterproof enclosure, which is more suitable for outdoor exposure than the IP65 versions.
Is the HVG-150-24B suitable for 24V sign lighting or illuminated letters?
It can be used for 24V signage loads that are compatible with the driver's constant current operating mode and stay within the 150W limit. The 13-24V CC range and 6.25A output make it a fit for higher-power 24V sign assemblies.
Can this model power 24V facade or landscape lighting?
Yes, for 24V lighting systems that match the output profile and do not exceed 150W. Its IP67 housing and -40°C to +85°C operating temperature range support use in demanding outdoor environments.
Is the HVG-150-24B waterproof enough for wet environments?
Yes, it is rated IP67 waterproof. That gives it a higher environmental protection rating than the IP65 water-resistant versions, while still keeping the same 150W, 24V, 6.25A output.
How much 24V LED strip can I run from this driver?
The maximum strip length is calculated as 150W divided by the strip's watts per meter. Check your strip rated power per meter, use the formula length = 150W / strip W per meter, and confirm the strip is compatible with 24V output.
