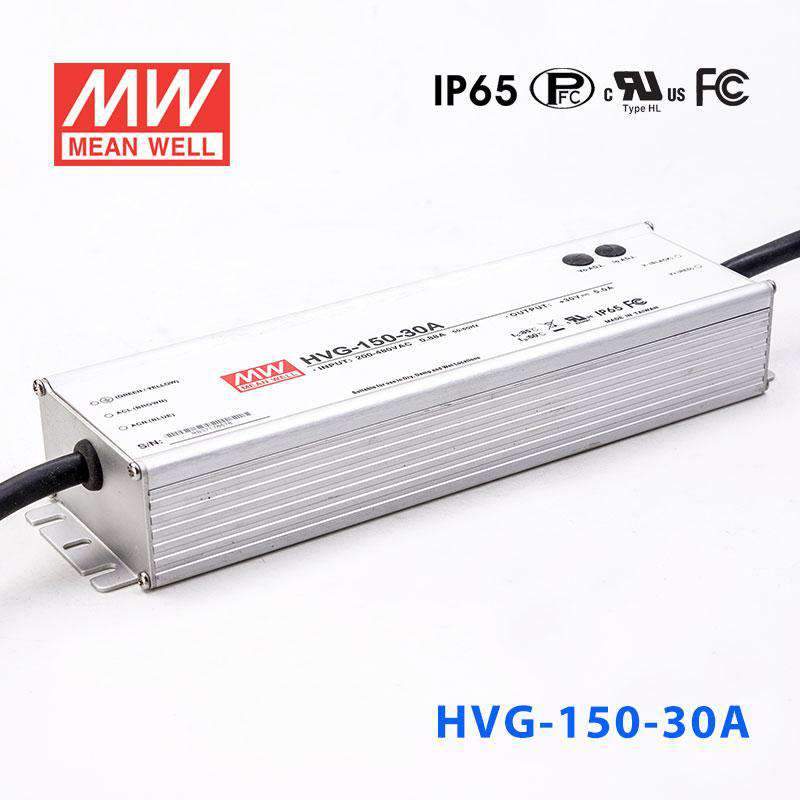

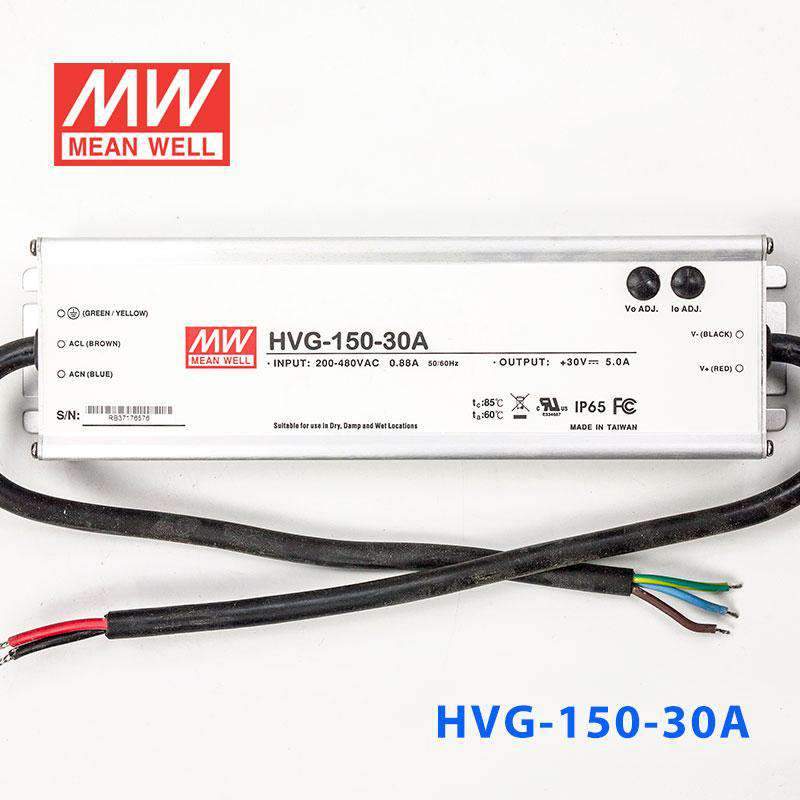

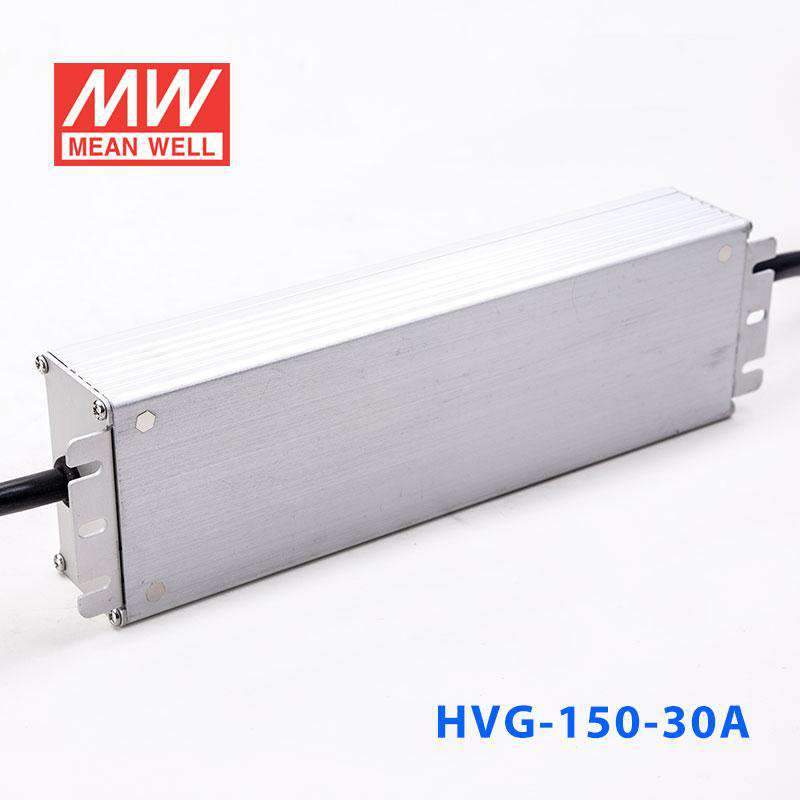

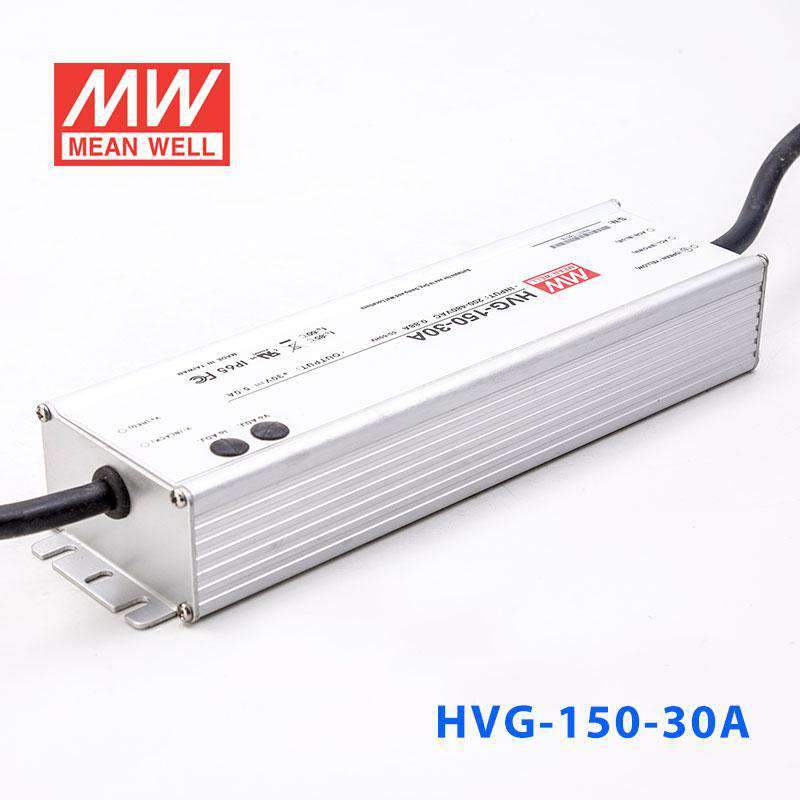

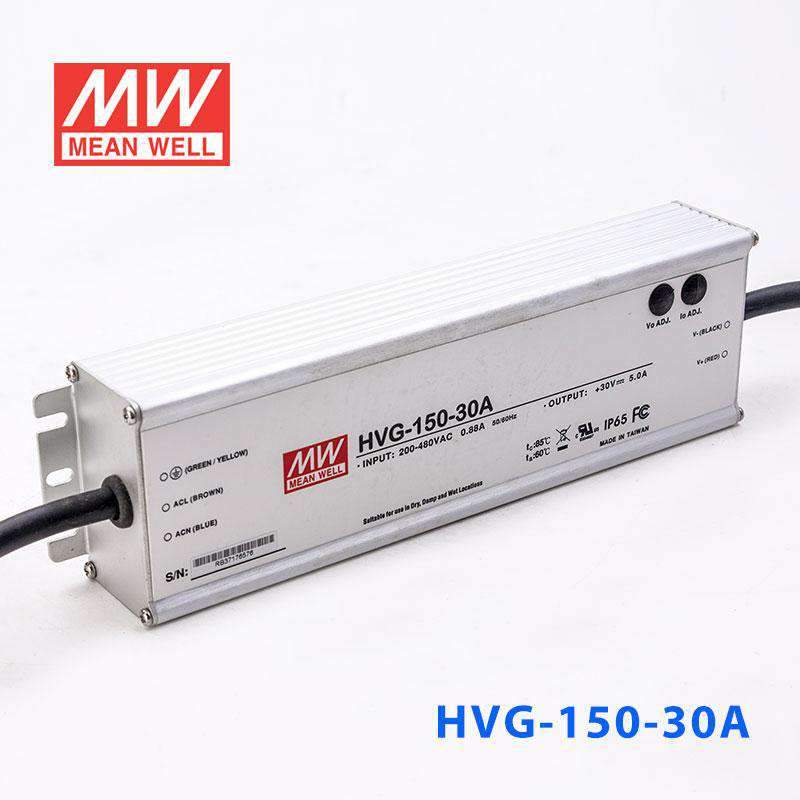

Mean Well HVG-150-30A Power Supply 150W 30V - Adjustable
The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating150 Watt
-
Output Voltage30 Volt
-
Rated Current5 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVG-150-30A for 30V LED strip or linear lighting?
Yes, if the load is designed for 30V operation and does not exceed 150W. This driver outputs 30V at up to 5A and works in constant current mode across a 16-30V range, so the connected strip or fixture needs to match that output profile.
Is this driver suitable for 30V signage or illuminated display lighting?
It can be used for 30V signage and display lighting loads that stay within the 150W rating. The 30V output and 5A maximum current make it suitable for higher-power 30V assemblies in this size class.
Can the HVG-150-30A be used for architectural lighting fixtures?
Yes, for 30V architectural fixtures that are compatible with the 16-30V constant current operating range. The aluminium casing and wide 180-528VAC input are useful in commercial lighting systems where enclosure durability and broad AC input tolerance matter.
Is the HVG-150-30A suitable for outdoor or wet locations?
This version is rated IP65, so it is water-resistant rather than fully waterproof. It is suitable where dust and water spray are expected, and it is rated for operation from -40°C to +85°C.
How do I size this driver for a 30V LED strip run?
Use the strip's power per meter and divide 150W by that value to estimate the maximum run length. The formula is maximum length = 150W / strip W per meter, and you should check your strip rated power per meter and confirm it is a 30V-compatible load.
