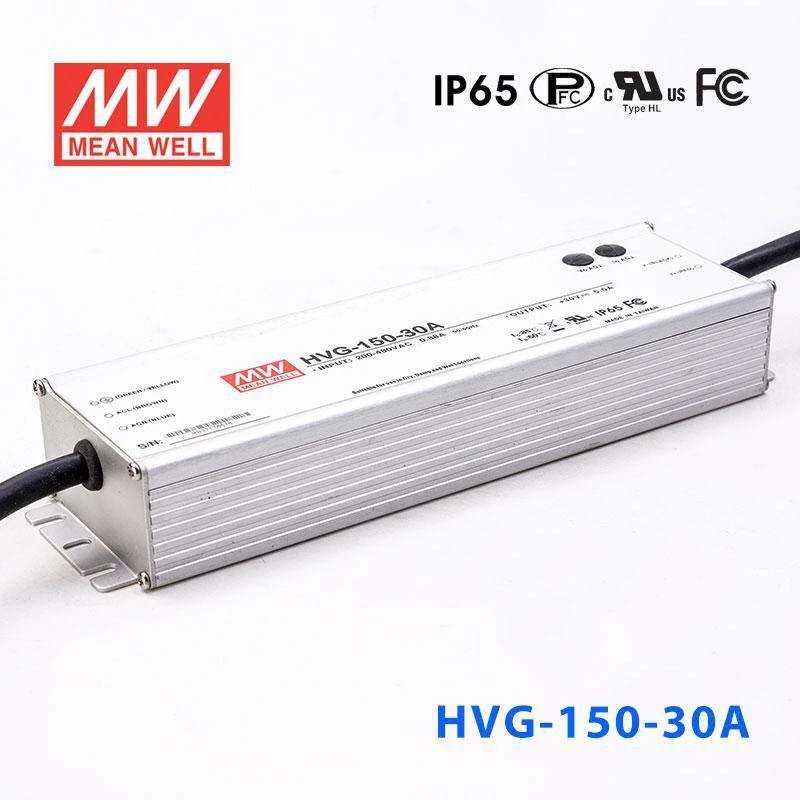

Mean Well HVG-150-30AB Power Supply 150W 30V

Name: Mean Well HVG-150-30AB Power Supply 150W 30V - Adjustable and Dimmable 5A
Brand: Mean Well
SKU: HVG-150-30AB
Price: 81.81 USD
Availability: InStock

Overview

HVG-150-30AB is the 30V output model of this series: rated current 5A, rated power 150W, typical efficiency 91%. Type AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP65).

HVG-150 series is a 150W AC/DC LED power supply featuring the dual mode constant voltage and constant current output. HVG-150 operates from 180~528 VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91.5%, with the fanless design, the series is able to operate from -40℃ through as high as +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
Typical lifet ime>50000 hours
5 years warranty

Specifications

HVG-150-30ABSpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 30V
CONSTANT CURRENT REGION^Note.4: 16.5~30V
RATED CURRENT: 5A
RATED POWER: 150W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: Adjustable for AB-Type only (via the built-in potentiometer) 27 ~ 33V
CURRENT ADJ. RANGE: Adjustable for AB-Type only (via the built-in potentiometer) 2.75 ~ 5A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 80ms /230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 18ms/347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC [@ load≧60% only for 12V model]; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD) ” section)
EFFICIENCY (Typ.): 91%
INRUSH CURRENT (Typ.): COLD START 35A(twidth=790μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 34 ~ 38V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(-40 ~ +75℃ for 12V model, -40 ~ +80℃ for 15V model)(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃(+75℃ for 12V model, +80℃ for 15V model)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.7: UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@ load≧55% load,@ load≧60% only for 12V model ) ; EN61000-3-3, FCC Part 15 Subpart,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1796.5K hrs min. Telcordia SR-332(Bellcore) ; 158.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 245*68*38.8mm (L*W*H)
PACKING: 1.24Kg; 12pcs/15.9Kg/0.78CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVG-150-30AB Block Diagram — Block Diagram

HVG-150-30AB DIMMING OPERATION — DIMMING OPERATION

HVG-150-30AB OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

HVG-150-30AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVG-150-30AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVG-150-30AB Dimensions (mm) — Dimensions (mm)

HVG-150-30AB WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVG-150-30AB datasheetHVG-150-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates2

UL Certificate(HVG-150)(EN) PDF Download

FCC Certificate(HVG-150)(EN) PDF Download

Test reports1

Test Report(HVG-150-30)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-150-30AB for a 30V LED strip lighting project?

Yes, if the LED strip is designed to run at 30V and its total load stays within 150W. This driver delivers up to 5A with a constant current range of 16.5~30V, so the strip or lighting load needs to match that output range.

Is this driver suitable for 30V illuminated signage or channel letter lighting?

It can be suitable for signage that uses a 30V LED load within the driver's 150W and 5A limits. The IP65 water-resistant housing also makes it a practical option for sign lighting where the power supply may be exposed to dust or rain but not intended for full submersion.

Can I use this power supply for architectural or commercial linear lighting?

Yes, for 30V linear lighting loads that operate within 16.5~30V constant current and do not exceed 150W. Its wide operating temperature range of -40°C to +85°C also suits demanding indoor or semi-exposed commercial environments.

Can this model run a dimmable 30V LED lighting load?

Yes, this model is the adjustable and dimmable version in the 150W 30V group. It is rated for 30V output at 5A and is intended for LED lighting applications that need that electrical range.

How do I estimate the maximum LED strip length this driver can support?

Use the strip's rated power per meter and divide 150W by that number. For example, maximum length = 150W / watts per meter, and you should also confirm the strip is a 30V load within the 16.5~30V constant current range.

Is the HVG-150-30AB okay for outdoor or wet locations?

It has an IP65 water-resistant rating, so it is built to resist dust and water spray. That makes it suitable for outdoor or damp locations where the driver may face weather exposure, but IP65 is not the same as submersible protection.

How does the HVG-150-30AB compare with other 30V models in the HVG series?

Within the 30V HVG range, the listed siblings are 65.1W 2.17A, 96W 3.2A, 150W 5A, 240W 8A, 321W 10.7A, and 480W 16A versions. At the 150W level, the sibling variants are HVG-150-30A, HVG-150-30AB, HVG-150-30B, and HVG-150-30D, with the AB model sharing the same 150W, 30V, and 5A core output rating.
