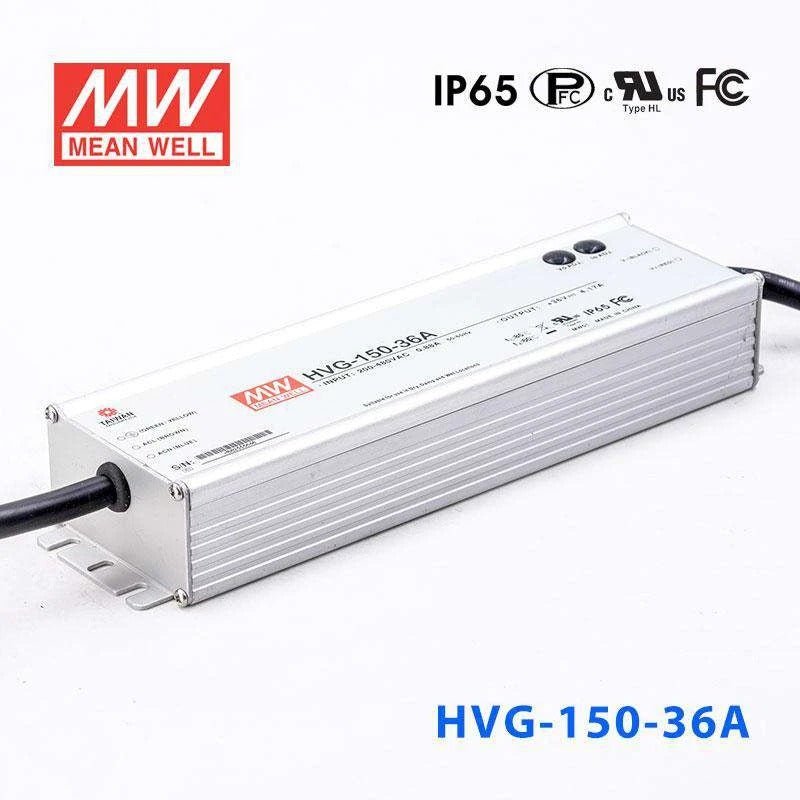

Mean Well HVG-150-36AB Power Supply 150W 36V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-150-36AB Power Supply 150W 36V - Adjustable and Dimmable
The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating150.12 Watt
-
Output Voltage36 Volt
-
Rated Current4.17 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVG-150-36AB for a dimmable 36V LED strip project?
Yes, if the strip is designed for 36V and its total load stays within 150.12W. This model is adjustable and dimmable, with 4.17A output and a 19-36V constant current range.
Is this model appropriate for 36V sign lighting or illuminated displays?
It can be used for 36V signage or display lighting loads that stay within 19-36V constant current and do not exceed 150.12W. The IP65 water-resistant housing also suits locations where the driver may face dust or rain exposure.
Can the HVG-150-36AB power commercial linear LED lighting?
Yes, for 36V linear LED lighting that fits within the driver's 4.17A and 150.12W ratings. Its -40°C to +85°C operating temperature range also supports demanding commercial environments.
Can I use this driver for dimmable 36V facade or accent lighting?
Yes, this version is the adjustable and dimmable 36V model in the 150.12W group. It is intended for LED lighting loads that operate within the 19-36V constant current range and stay under 4.17A.
How much 36V LED strip can this driver support?
Maximum strip length is calculated by dividing 150.12W by the strip's rated watts per meter. Check your strip rated power per meter and confirm it is a 36V load within the 19-36V constant current range before sizing the run.
Is the HVG-150-36AB suitable for wet or outdoor areas?
This driver is rated IP65 water-resistant, so it is designed to handle dust and water spray. That makes it suitable for many outdoor or damp lighting locations, though IP65 is not the same as IP67 waterproof protection.
