Can I use the HVG-150-36B for outdoor 36V LED strip lighting?

Yes, if the strip is rated for 36V and the total load stays within 150.12W and 4.17A. This version has IP67 waterproof protection, which makes it better suited to exposed outdoor environments than water-resistant models.

Is the HVG-150-36B suitable for wet-location sign lighting?

It can be used for 36V signage or display lighting loads that fit within the 19-36V constant current range and stay under 150.12W. The IP67 waterproof enclosure makes it well suited to wet outdoor locations.

Can this driver be used for 36V landscape or facade lighting?

Yes, for 36V LED lighting loads that operate within 19-36V constant current and do not exceed 4.17A. Its IP67 rating and -40°C to +85°C operating temperature range support demanding exterior conditions.

Can I use the HVG-150-36B for dimmable 36V lighting applications?

Yes, this is the dimmable version in the 150.12W 36V group. It is designed for 36V LED lighting loads within the 19-36V constant current range and up to 4.17A.

How do I estimate the maximum 36V LED strip length for this driver?

Use the strip's rated watts per meter and divide 150.12W by that number. That gives the maximum estimated length, and you should also verify the strip is a 36V load within the 19-36V constant current range.

Is the HVG-150-36B fully suitable for outdoor weather exposure?

This model is rated IP67 waterproof, so it offers stronger water and dust protection than IP65 versions. That makes it a strong option for outdoor lighting environments where the driver may be directly exposed to weather.

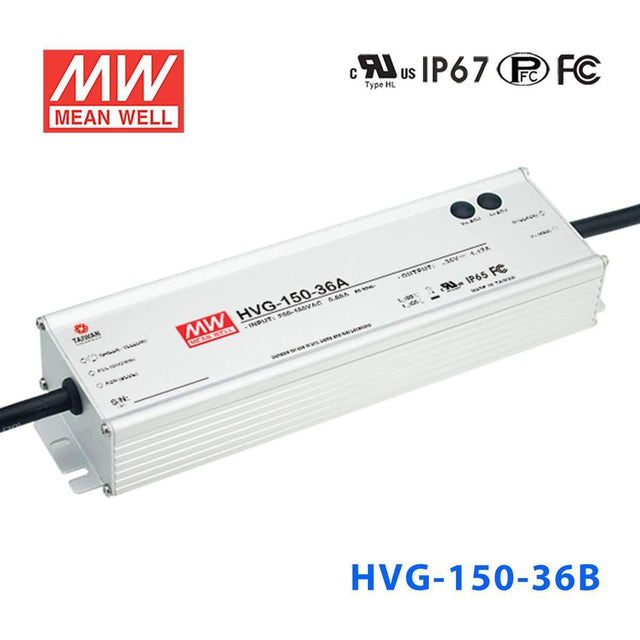

Mean Well HVG-150-36B Power Supply - 150W 36V - Dimmable

Name: Mean Well HVG-150-36B Power Supply 150W 36V - Dimmable
Brand: Mean Well
SKU: HVG-150-36B
Price: 80.73 USD
Availability: InStock

The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -40~+85℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

150.12 Watt
Output Voltage

36 Volt
Rated Current

4.17 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

10V PWM,1-10V,Resistance
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

9.65 in
Width

2.68 in
Height

1.53 in
Weight

2.73 lb
