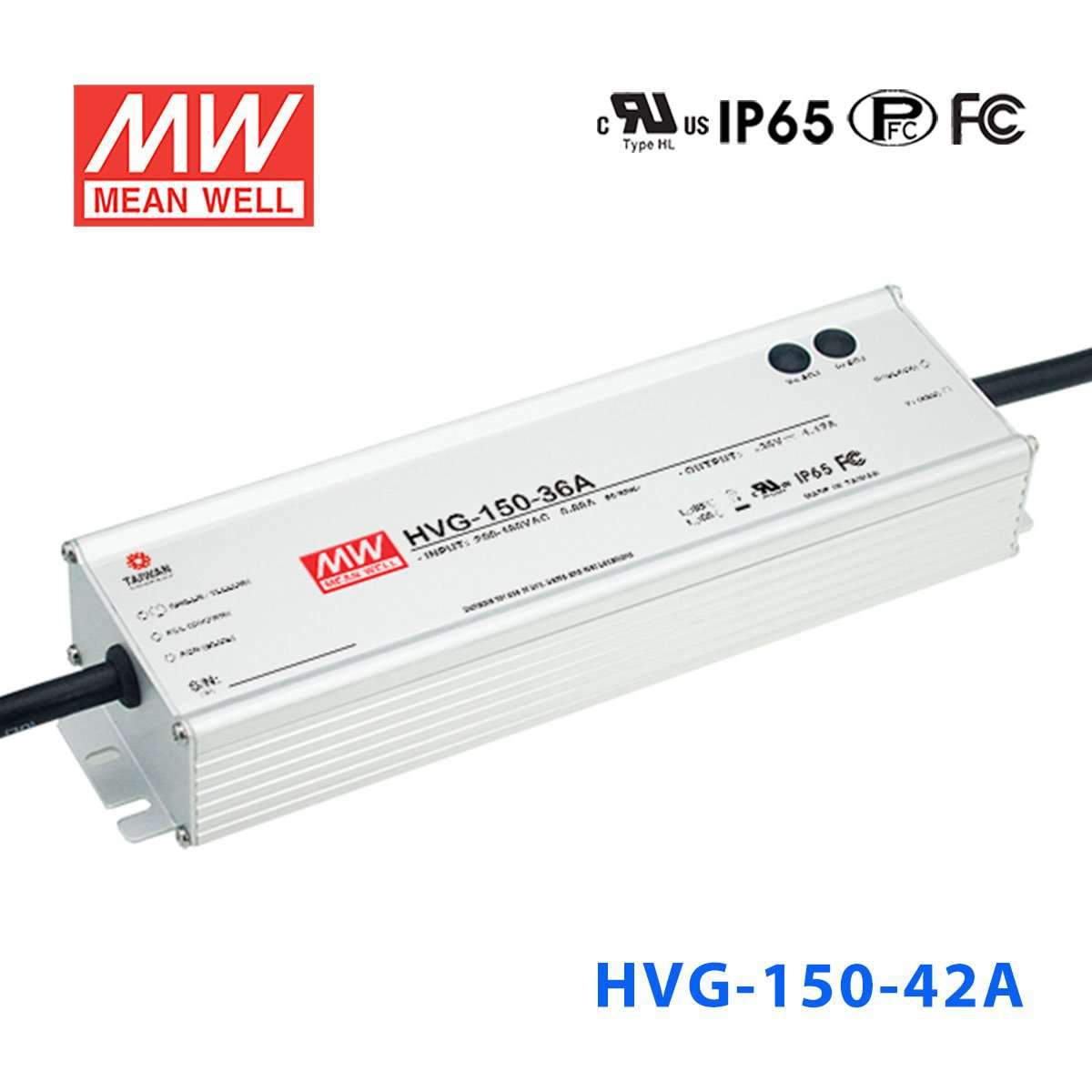

Mean Well HVG-150-42A Power Supply 150W 42V - Adjustable

Name: Mean Well HVG-150-42A Power Supply 150W 42V - Adjustable
Brand: Mean Well
SKU: HVG-150-42A
Price: 77.67 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU:

HVG-150-42A

$77.67 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -40~+85℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

150.36 Watt
Output Voltage

42 Volt
Rated Current

3.58 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

9.65 in
Width

2.68 in
Height

1.53 in
Weight

2.73 lb

Frequently Asked Questions

Can I use the HVG-150-42A for a 42V LED strip lighting run?

It can work with a 42V lighting load if that load is designed for constant current operation and falls within the 23-42V CC range. The driver provides up to 3.58A and 150.36W, so the total strip load must stay at or below those limits.

Is this driver suitable for a 42V illuminated sign or light box?

Yes, it can be used for 42V signage lighting when the sign load is compatible with constant current output. Keep the total demand within 150.36W and 3.58A, and the IP65 housing helps in water-resistant sign enclosures.

Can the HVG-150-42A power architectural linear lighting?

It is suitable for constant current linear lighting systems that operate within 23-42V. With 150.36W available at 42V and a wide operating temperature range of -40°C to +85°C, it fits demanding indoor or protected outdoor lighting environments.

Can I use this for outdoor LED lighting projects?

The IP65 rating means it is water-resistant and suitable for outdoor or damp locations where exposure to water is expected but full submersion is not. Its aluminium casing and -40°C to +85°C operating range also support harsh environmental conditions.

How much 42V LED strip can this driver support?

Use the power limit: 150.36W maximum. Strip length estimate is 150.36W divided by your strip's watts per meter, so if a 42V strip is rated at 10W per meter, the calculation is 150.36 ÷ 10 = 15.036 meters; check your strip rated power per meter and confirm it is compatible with 42V constant current output.

What is the difference between the HVG-150-42A, HVG-150-42AB, and HVG-150-42B?

All three 42V models share the same main electrical ratings: 150.36W output power, 42V output, 3.58A output current, and a 23-42V CC range. In the same series, the nearby higher-power 42V options are HVG-240-42A/AB/B at 239.4W and 5.7A, and HVG-320-42A/AB/B at 319.2W and 7.6A, while the lower-power HVG-100-42A/AB/B models are 95.76W and 2.28A.
