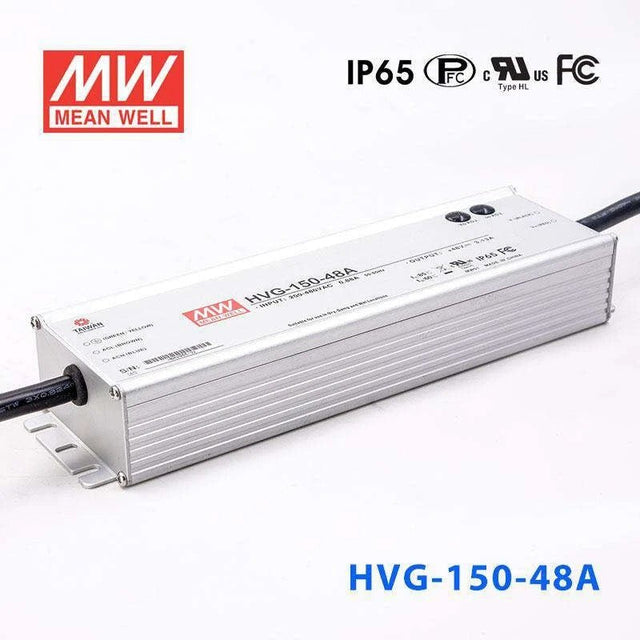

Mean Well HVG-150-48AB Power Supply 150W 48V - Adjustable and Dimmable

Name: Mean Well HVG-150-48AB Power Supply 150W 48V - Adjustable and Dimmable
Brand: Mean Well
SKU: HVG-150-48AB
Price: 81.81 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU:

HVG-150-48AB

$81.81 USD ~~$307.50~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -40~+85℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

150.24 Watt
Output Voltage

48 Volt
Rated Current

3.13 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

10V PWM,1-10V,Built-in Potentiometer,Resistance
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

9.65 in
Width

2.68 in
Height

1.53 in
Weight

2.73 lb

Frequently Asked Questions

Can I use the HVG-150-48AB for dimmable 48V LED strip lighting?

Yes, if the lighting load is built for 48V constant current operation within the 26-48V range. This driver supports up to 150.24W and 3.13A, so the connected load must not exceed those ratings.

Is the HVG-150-48AB suitable for 48V illuminated signage?

It is suitable for 48V constant current signage and display lighting that stays within the driver's 26-48V CC range. The unit provides up to 150.24W, and its IP65 housing is intended for water-resistant environments.

Can this driver be used for commercial 48V linear fixtures?

Yes, for commercial linear fixtures that require constant current output from 26V to 48V. The 150.24W power rating, 3.13A output current, and operating temperature range of -40°C to +85°C support demanding lighting applications.

Is this driver appropriate for outdoor lighting enclosures?

The IP65 water-resistant rating makes it suitable for damp and outdoor lighting enclosures where protection from water exposure is needed. Its aluminium casing also supports use in tougher environments.

How much 48V LED strip can this 150.24W driver run?

Estimate strip length by dividing 150.24W by your strip's wattage per meter. If the strip is rated at 18W per meter, 150.24 ÷ 18 = 8.35 meters; check your strip rated power per meter and confirm it is compatible with 48V constant current output.

What are the main 48V HVG series options around this model?

This model is 150.24W, 48V, and 3.13A. The lower-power 48V siblings are HVG-65-48A/AB/B at 65.3W and 1.36A and HVG-100-48A/AB/B at 96W and 2A, while the higher-power options are HVG-240-48A/AB/B at 240W and 5A, HVG-320-48A/AB/B at 321.6W and 6.7A, and HVG-480-48A/AB/B at 480W and 10A.
