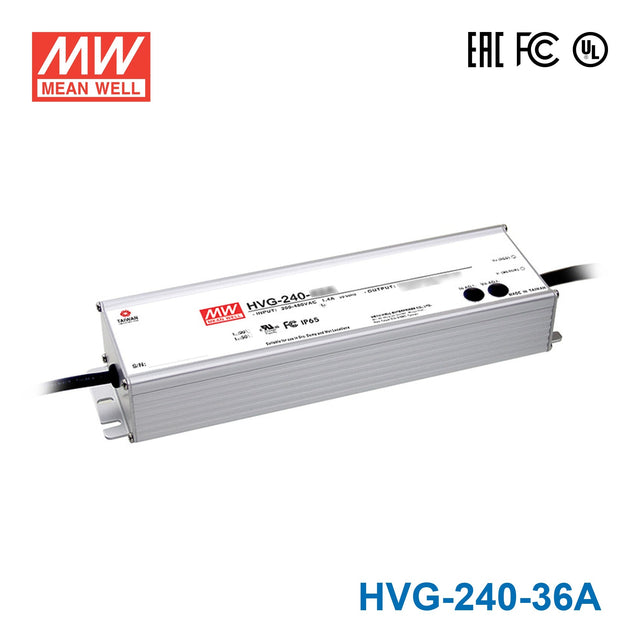

Mean Well HVG-240-36A Power Supply 240W 36V - Adjustable
The HVG-240 is a 240W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating241.2 Watt
-
Output Voltage36 Volt
-
Rated Current6.7 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.01 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.89 lb
::specification::
Frequently Asked Questions
Can I use the HVG-240-36A for 36V outdoor LED signage?
It can be used for 36V LED signage loads when the load matches the driver's 36V output and stays within 241.2W and 6.7A. Its IP65 water-resistant rating suits outdoor or damp locations, but the connected lighting load also needs to be rated appropriately for that environment.
Is this driver suitable for 36V architectural or facade lighting?
Yes, it is sized for 36V architectural lighting products that need constant current operation within the 18-36V CC range. The 241.2W maximum output and IP65 housing make it relevant for higher-power lighting runs in indoor or weather-exposed areas.
Can the HVG-240-36A run a 36V LED strip lighting project?
It can support a 36V LED strip or linear lighting product if that product is compatible with 36V constant current output and the total load does not exceed 241.2W. For strip-length planning, use 241.2W divided by the strip's rated watts per meter, and check your strip rated power per meter.
Would this work for wet-location lighting around building exteriors?
The driver itself is IP65 water-resistant, so it is intended for outdoor or damp-area exposure rather than dry indoor use only. It is not described here as IP67 waterproof, so for harsher washdown or full-weather exposure, that rating difference matters.
How much 36V LED strip can this power?
Use the driver's 241.2W maximum output for the estimate. The math is: maximum length = 241.2W divided by your strip's watts per meter, and you should check your strip rated power per meter and confirm it is compatible with 36V constant current operation.
How does the HVG-240-36A compare with other HVG-240 output options?
In the HVG-240 family, the listed outputs are 24V at 240W and 10A, 30V at 240W and 8A, 36V at 241.2W and 6.7A, 42V at 239.4W and 5.7A, 48V at 240W and 5A, and 54V at 243W and 4.5A. This 36A version shares the same 36V, 241.2W, and 6.7A electrical rating as HVG-240-36AB and HVG-240-36B.
