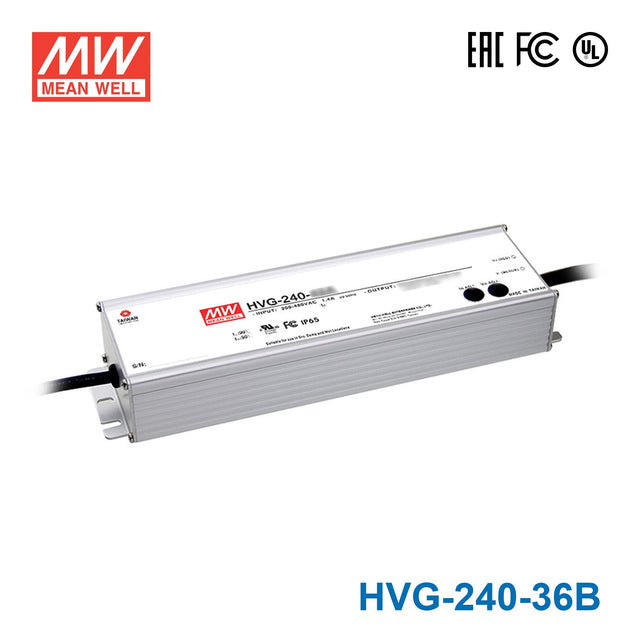

Mean Well HVG-240-36B Power Supply 240W 36V - Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 50A(twidth=850 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+90°C (refer to output derating curve) |
| Safety standards | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 254.2 x 68 x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating241.2 Watt
-
Output Voltage36 Volt
-
Rated Current6.7 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.01 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.89 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-240-36B for fully exposed outdoor 36V LED lighting?
This model is better suited to exposed outdoor lighting than the IP65 versions because it is rated IP67 waterproof. The lighting load still needs to match 36V output, 6.7A current, and 241.2W maximum power within the 18-36V constant current range.
Is this a suitable driver for 36V landscape or exterior accent lighting?
Yes, it can fit 36V exterior lighting products that require constant current operation and stay within 241.2W. Its IP67 enclosure is intended for harsh outdoor conditions, which makes it more appropriate where stronger weather protection is needed.
Can the HVG-240-36B be used for 36V illuminated signage in wet weather?
It can be used for 36V sign lighting loads when the electrical requirements match 36V, 6.7A, and 241.2W maximum output. The IP67 waterproof rating is the key environmental advantage for sign installations exposed to rain or washdown conditions.
How much 36V LED strip can this driver handle?
Estimate the maximum strip length by dividing 241.2W by the strip's watts per meter. That gives a wattage-based limit only, so check your strip rated power per meter and confirm the strip is compatible with 36V constant current operation.
Is the HVG-240-36B better for wet locations than the 36A or 36AB?
From the listed specs, the main environmental difference is the enclosure rating: this 36B version is IP67 waterproof, while HVG-240-36A and HVG-240-36AB are IP65 water-resistant. All three share the same 241.2W, 36V, and 6.7A electrical rating.
How does the 36B compare with the other HVG-240 output voltages?
The HVG-240 family is listed as 24V at 240W and 10A, 30V at 240W and 8A, 36V at 241.2W and 6.7A, 42V at 239.4W and 5.7A, 48V at 240W and 5A, and 54V at 243W and 4.5A. Within the 36V group, the A, AB, and B versions all share the same 241.2W and 6.7A rating.
