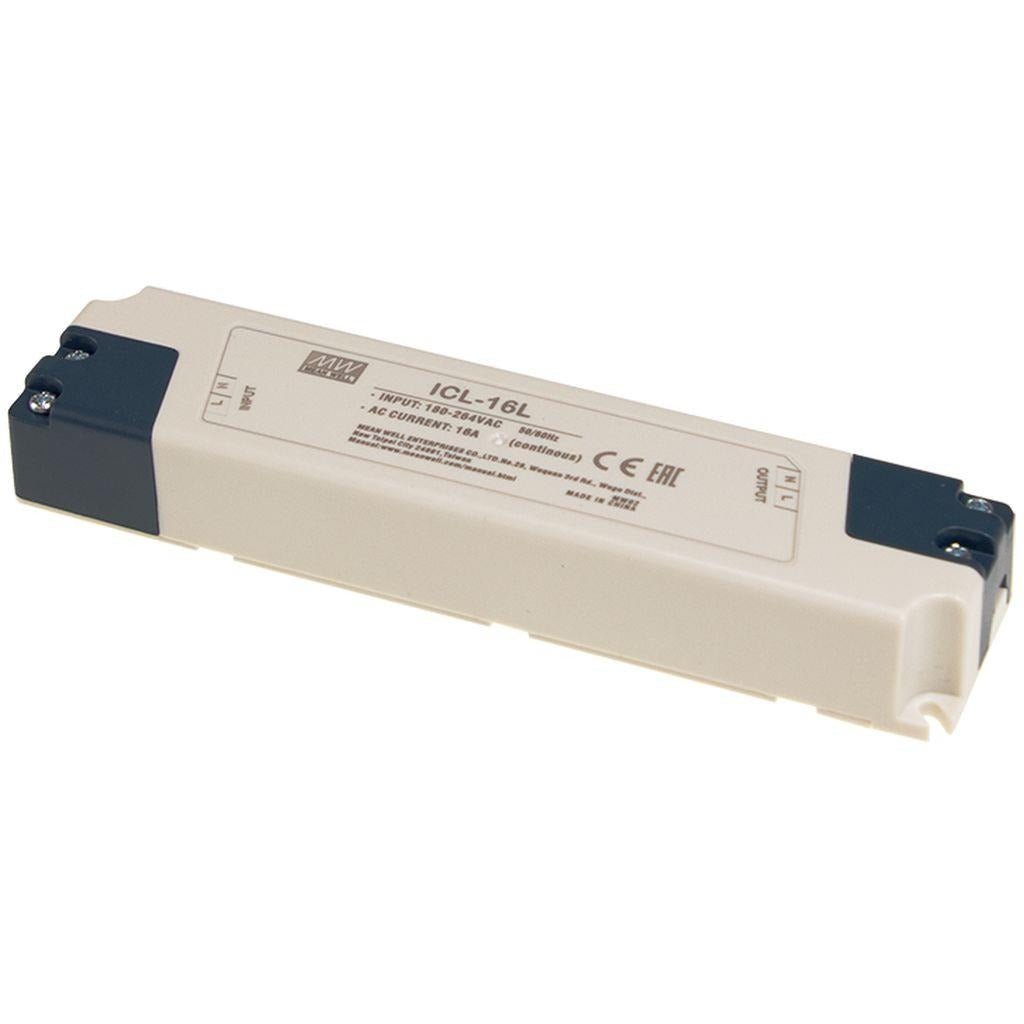

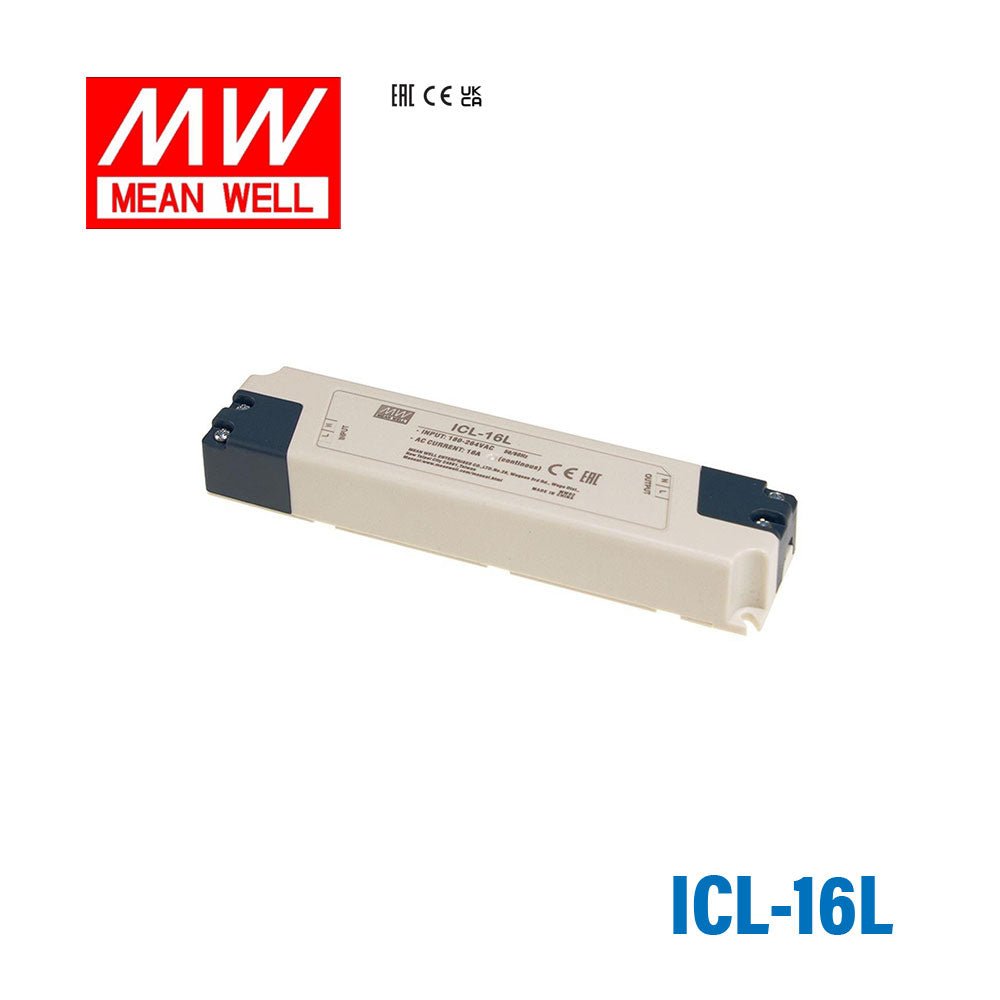

Mean Well ICL-16L AC Inrush Current Limiter

integrated bypass relay, no simple NTC, internal thermal protection
SKU:
ICL-16L

$44.91 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

 23A inrush limiting current, 16A continuous
180~264VAC AC input
Integrated bypass relay, no simple NTC
Internal thermal protection
-30~+70°C wide working temperature
Terminal type with screws
3 years warranty

General Specification

AC input voltage  180~264VAC
Inrush current limiting 23A
AC input power 3680VA
Internal protection Thermal fuse protects overload and fire
Working temperature -30~+70°C
Operating altitude 5000 meters
Safety standards LVD BS EN/EN62368-1 approved
EMC standards EN55032 class B, EN61000-4-2,3,4,5,6,8,11
Case No PLM-40
Dimension (LxWxH) 175x42x24
Packing 98pcs / 14kg

Specifications

  • Brand
    Mean Well
  • Series
    ICL
  • Rated Current
    16 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Standards Met
    CE,EAC
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    6.89 in
  • Width
    1.65 in
  • Height
    0.94 in
  • Weight
    0.29 lb

File Downloads

::specification::
