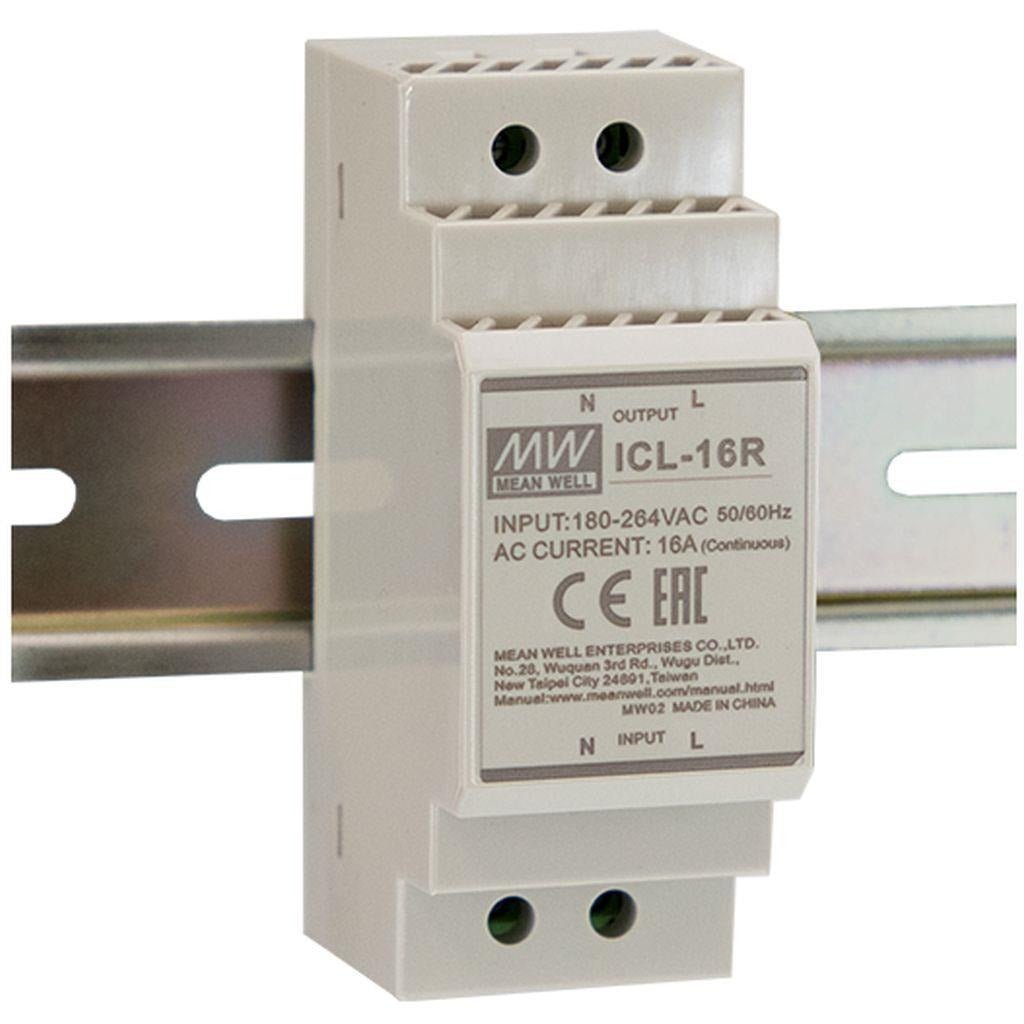

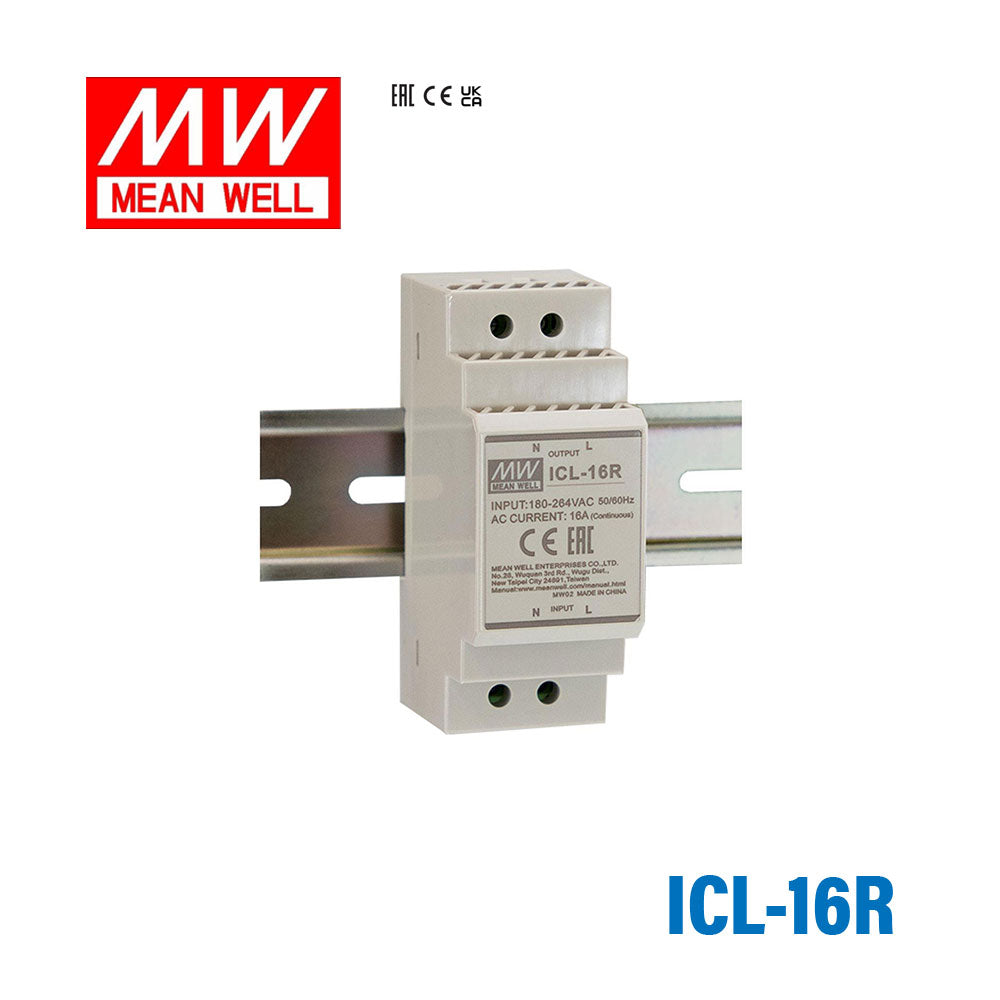

Mean Well ICL-16R AC Inrush Current Limiter
Description
Description
The ICL is a Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesICL
-
Rated Current16 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCE,EAC
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height1.38 in
-
Weight0.26 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Mean Well ICL-16R do?
The Mean Well ICL-16R is an AC inrush current limiter designed to reduce startup current on AC-powered equipment. For this model, inrush current limiting is rated at 23A with 16A continuous operation.
What input voltage is supported by the ICL-16R?
This model is specified for an AC input voltage range of 180 to 264VAC. That makes it suitable for applications operating within that stated mains range.
How is the ICL-16R different from a simple NTC limiter?
The ICL-16R uses an integrated bypass relay rather than relying on a simple NTC-only design. That is a key product distinction called out in the specification and is intended for more robust inrush current limiting performance.
What environments can the ICL-16R operate in?
The ICL-16R is rated for a wide working temperature range of -30°C to +70°C. It is also specified for operation at altitudes up to 5000 meters, which can matter in industrial or elevated-location applications.
What are the main electrical ratings of the ICL-16R?
This model is rated for 16A continuous current and 23A inrush current limiting. Its listed AC input power is 3680VA, matching its role in higher-demand AC power applications.
Does the ICL-16R include protection and compliance approvals?
Yes. The specification lists internal thermal protection with a thermal fuse for overload and fire protection, along with LVD BS EN/EN62368-1 approval and EMC compliance including EN55032 Class B.
