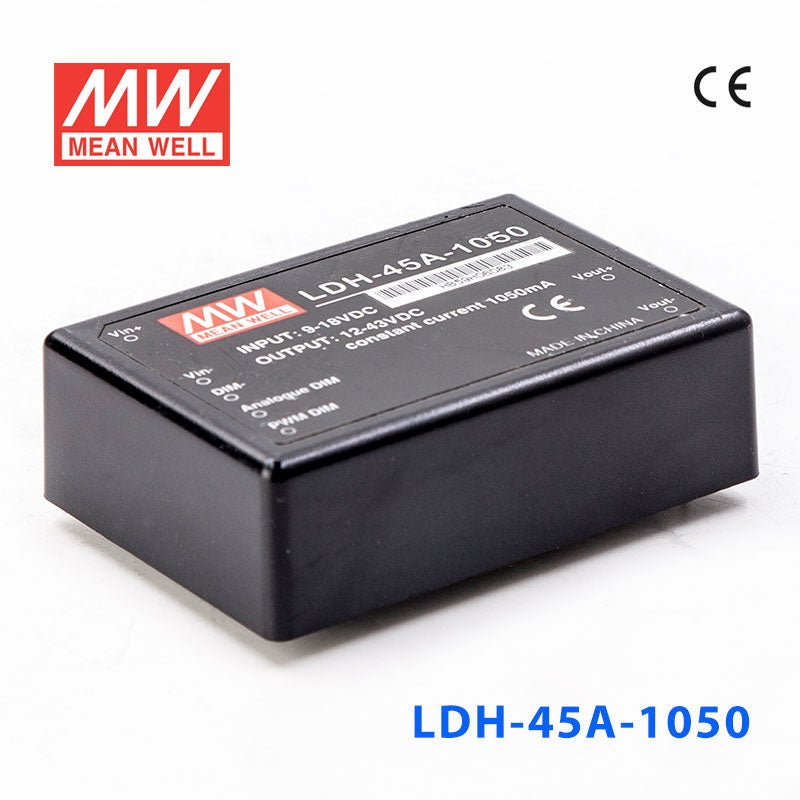

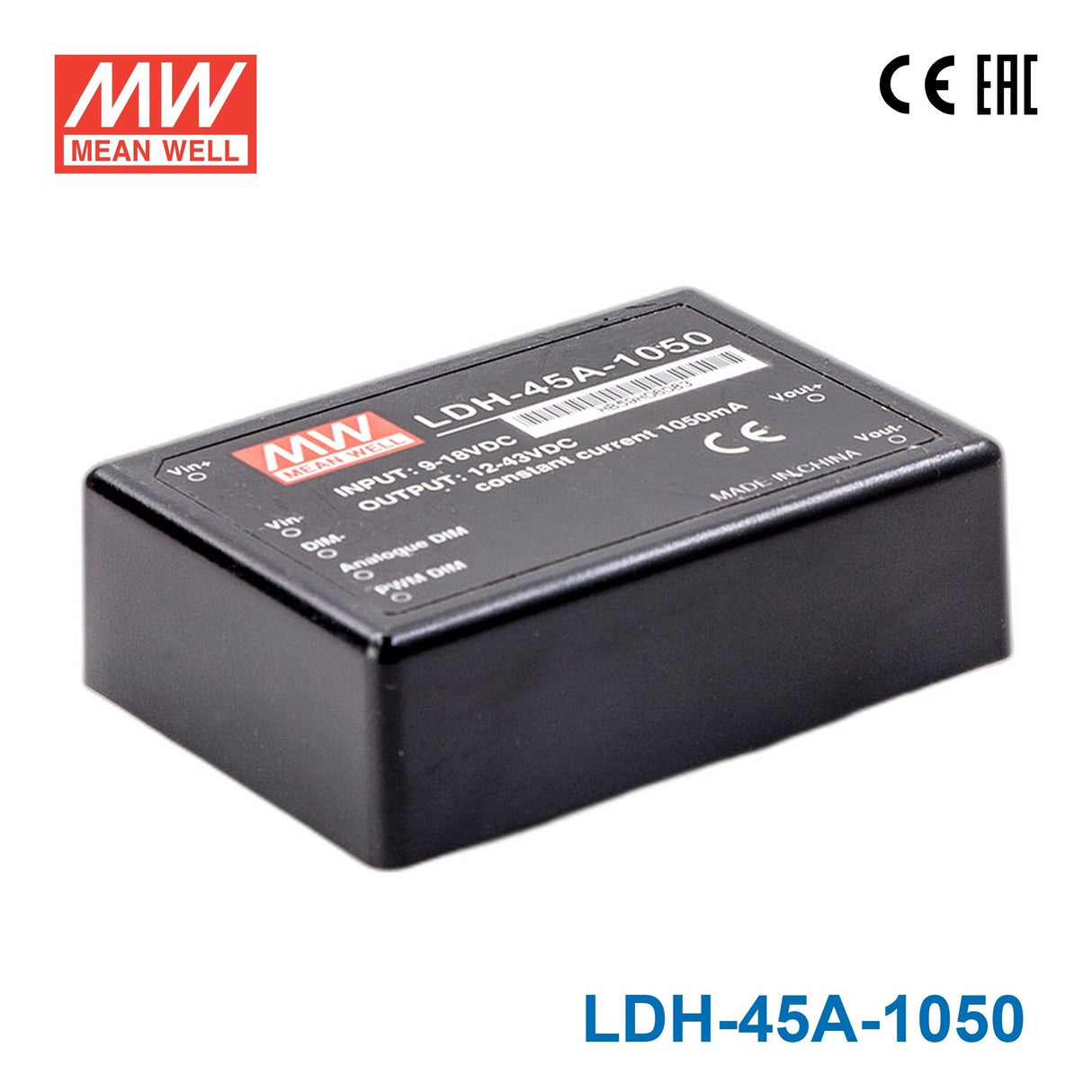

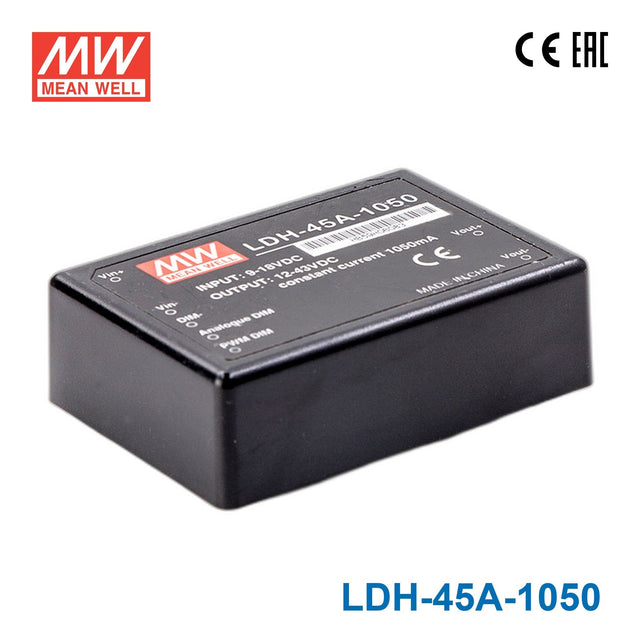

Mean Well LDH-45A-1050 DC/DC LED Driver CC 1050mA - Step-up
Overview
LDH-45A-1050 is the model of this series: rated current 1050mA, rated power 45.15W, typical efficiency 91%.
Features
- DC/DC step-up converter
- Constant current output : 350mA to 1050mA
- Wide output LED string voltage up to 126VDC
- High efficiency up to 95%
- PWM + analog dimming and remote ON/OFF control [(Blank) type or W type]
- DALI dimming [(Blank)DA type or WDA type]
- Protections: Short circuit / Over voltage / Under voltage
- Cooling by free air convection
- Fully encapsulated
- 3 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 1050mA
- CURRENT ACCURACY(Typ.)
- ±5% at 12VDC input
- VOLTAGE RANGE Non-DALINote.2
- 12~43VDC
- VOLTAGE RANGE DALINote.2
- 24~43VDC
- NO LOAD OUTPUT VOLTAGE(max.)
- 50V
- RATED POWER
- 45.15W
- RIPPLE & NOISE (max.)Note.3
- 1.9Vp-p
INPUT
- RATED VOLTAGE
- 12VDC
- VOLTAGE RANGENote.2
- 9~18VDC
- EFFICIENCY (max.)
- 91%
- DC CURRENT (Typ.)
- 4.2A
PWM DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power ON with dimming: PWM signal >2~8VDC or open circuit, between PWM DIM and DIM- Power OFF : PWM signal <0.5VDC or short or PWM duty is equal to 0%, between PWM DIM and DIM-
- PWM DIMMING FREQUENCY
- 1K~10KHz
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when PWM dimming OFF
ANALOG DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power on with dimming: DC input >0.25~8VDC or open circuit, between Analog DIM and DIM- Power off : DC input <0.2VDC or short, between Analog DIM and DIM-
- DIM INPUT VOLTAGE RANGE
- 0.25~1.3VDC
- MAX OPERATION VOLTAGE
- 8V; The output current remains constant when voltage changes from 1.3V to 8V
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when Analog dimming OFF
PROTECTION
- SHORT CIRCUIT
- Protection type : Power OFF and fuse open
- OVER VOLTAGE (max.)
- 50V Protection type : Constant output voltage and shut off o/p current, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
SAFETY & EMC
- SAFETY STANDARDS
- LVD BS EN/EN61347-1, BS EN/EN61347-2-13,EAC TP TC 004 approved
- EMC EMISSION
- Compliance to BS EN/EN55015;EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level;EAC TP TC 020
OTHERS
- MTBF
- 12195.2K hrs min. Telcordia SR-332 (Bellcore) ; 1179.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 75*53*22.7mm (L*W*H)
- PACKING
- 138g;100pcs/14.8Kg/0.83CUFT[(Blank) type or (Blank) DA type],1.04CUFT(W type or WDA type)
Test conditions and notes3
- 1. All parameters are specified at normal input(12VDC,24VDC), rated load, 25℃ 70% RH ambient.
- 2. (Blank) type and W type output voltage must step up by 3 Volts from input DC voltage; (Blank)DA type and WDA type output voltage must step up by 12 Volts from input DC voltage.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf parallel capacitor.
Technical drawings
Downloads
FAQ
Can I use the LDH-45A-1050 for high-output LED downlights that need 1050mA constant current?
Yes, if the downlight is designed for 1050mA constant current operation and the total LED forward voltage is within the 12-43V CC range. This model provides up to 45.15W, which makes it suitable for higher-power constant current LED loads.
Is the LDH-45A-1050 suitable for outdoor signage or exposed lighting modules?
The datasheet gives no IP or waterproof rating, so for outdoor signage or exposed modules it must be installed where it is protected from water and condensation. The driver still needs to match a constant current LED load of 1050mA with a combined forward voltage in the 12-43V range.
How do I determine if my LED array is compatible with the LDH-45A-1050?
The array must be specified for 1050mA constant current operation, and the total LED forward voltage must stay within the 12-43V CC range. The number of LEDs depends on the forward voltage of each LED, so there is no single fixed LED count that applies to every load.
Is the LDH-45A-1050 rated for harsh environmental conditions?
It is rated for operation from -40°C to +70°C (refer to the derating curve) at 20-90% RH non-condensing; no IP or waterproof rating is listed. It meets LVD safety standards EN61347-1 and EN61347-2-13 and is EAC approved.
