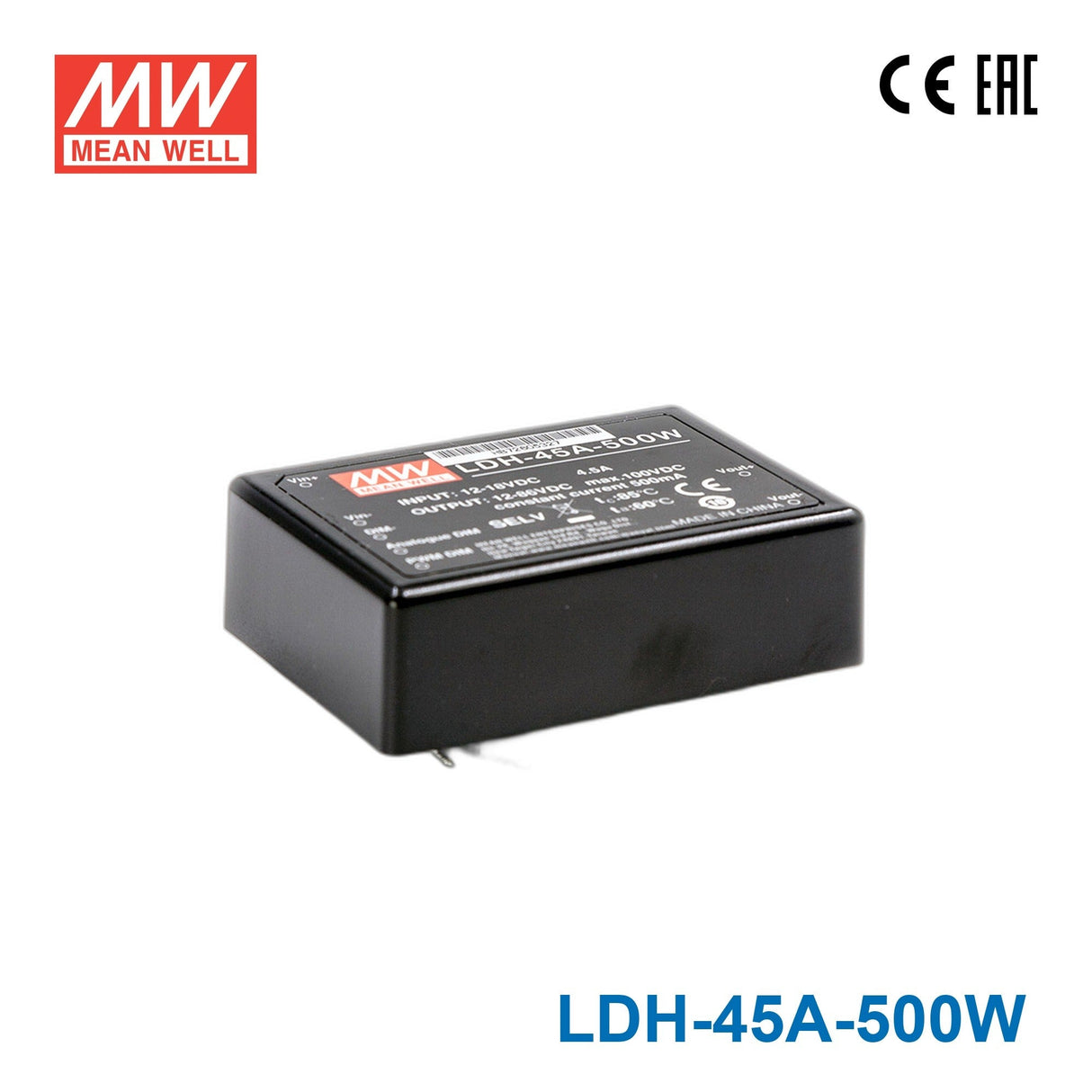

Mean Well LDH-45A-500W DC/DC LED Driver CC 500mA - Step-up
Overview
LDH-45A-500W is the model of this series: rated current 500mA, rated power 43W, typical efficiency 90%.
Features
- DC/DC step-up converter
- Constant current output : 350mA to 1050mA
- Wide output LED string voltage up to 126VDC
- High efficiency up to 95%
- PWM + analog dimming and remote ON/OFF control [(Blank) type or W type]
- DALI dimming [(Blank)DA type or WDA type]
- Protections: Short circuit / Over voltage / Under voltage
- Cooling by free air convection
- Fully encapsulated
- 3 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 500mA
- CURRENT ACCURACY(Typ.)
- ±5% at 12VDC input
- VOLTAGE RANGE Non-DALINote.2
- 12~86VDC
- VOLTAGE RANGE DALINote.2
- 24~86VDC
- NO LOAD OUTPUT VOLTAGE(max.)
- 100V
- RATED POWER
- 43W
- RIPPLE & NOISE (max.)Note.3
- 2.5Vp-p
INPUT
- RATED VOLTAGE
- 12VDC
- VOLTAGE RANGENote.2
- 9~18VDC
- EFFICIENCY (max.)
- 90%
- DC CURRENT (Typ.)
- 4.1A
PWM DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power ON with dimming: PWM signal >2~8VDC or open circuit, between PWM DIM and DIM- Power OFF : PWM signal <0.5VDC or short or PWM duty is equal to 0%, between PWM DIM and DIM-
- PWM DIMMING FREQUENCY
- 1K~10KHz
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when PWM dimming OFF
ANALOG DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power on with dimming: DC input >0.25~8VDC or open circuit, between Analog DIM and DIM- Power off : DC input <0.2VDC or short, between Analog DIM and DIM-
- DIM INPUT VOLTAGE RANGE
- 0.25~1.3VDC
- MAX OPERATION VOLTAGE
- 8V; The output current remains constant when voltage changes from 1.3V to 8V
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when Analog dimming OFF
PROTECTION
- SHORT CIRCUIT
- Protection type : Power OFF and fuse open
- OVER VOLTAGE (max.)
- 100V Protection type : Constant output voltage and shut off o/p current, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
SAFETY & EMC
- SAFETY STANDARDS
- LVD BS EN/EN61347-1, BS EN/EN61347-2-13,EAC TP TC 004 approved
- EMC EMISSION
- Compliance to BS EN/EN55015;EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level;EAC TP TC 020
OTHERS
- MTBF
- 12195.2K hrs min. Telcordia SR-332 (Bellcore) ; 1179.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 75*53*22.7mm (L*W*H)
- PACKING
- 138g;100pcs/14.8Kg/0.83CUFT[(Blank) type or (Blank) DA type],1.04CUFT(W type or WDA type)
Test conditions and notes3
- 1. All parameters are specified at normal input(12VDC,24VDC), rated load, 25℃ 70% RH ambient.
- 2. (Blank) type and W type output voltage must step up by 3 Volts from input DC voltage; (Blank)DA type and WDA type output voltage must step up by 12 Volts from input DC voltage.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf parallel capacitor.
Technical drawings
Downloads
FAQ
Can I use the LDH-45A-500W for 500mA architectural LED downlights?
Yes, when the downlight is a constant current load rated for 500mA and the total LED forward voltage is within 12-86V. This driver provides up to 43W and up to 86V output voltage, so it suits higher-voltage constant current downlight assemblies in that range. It is not intended for fixed-voltage LED products.
Is the LDH-45A-500W appropriate for waterproof signage lighting or small LED arrays?
It can be used for constant current signage modules or compact LED arrays that require 500mA and operate within the 12-86V constant current range. It has no IP or waterproof rating on the datasheet, so in wet installations the sign must protect it; the operating range is -40°C to +70°C (refer to the derating curve). The total LED load must remain within 43W.
Can this step-up driver handle a constant current LED string that needs a wide output range?
Yes, the LDH-45A-500W regulates constant current at 500mA across 12-86V and can deliver up to 86V output voltage. That makes it useful for small LED arrays or downlights with a wider string voltage requirement. The load must still stay within the 43W power rating.
How do I know whether my LED string is the right size for the LDH-45A-500W?
The LED string must be designed for constant current operation at 500mA, and the total forward voltage must fit within 12-86V. The number of LEDs depends on each LED's forward voltage, so there is no universal LED count for this model. This driver can supply up to 43W.
What separates the LDH-45A-500W from the other 500mA LDH-45A versions?
LDH-45A-500 and LDH-45A-500W are both 500mA, 12-86V, and 43W models, while LDH-45A-500DA and LDH-45A-500WDA are 500mA, 24-86V, and 43W models. The W versions are wire style and the non-W versions are pin style. All are constant current step-up drivers with a maximum output voltage of 86V.
