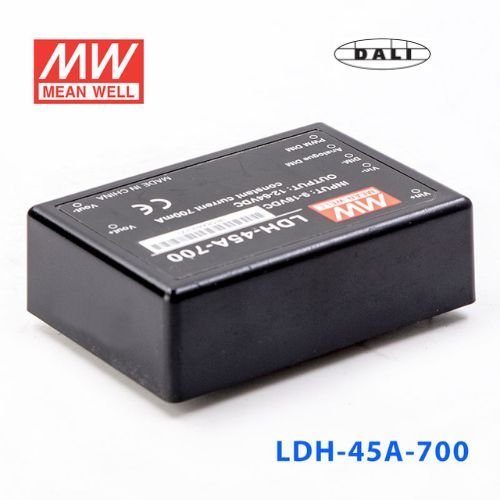

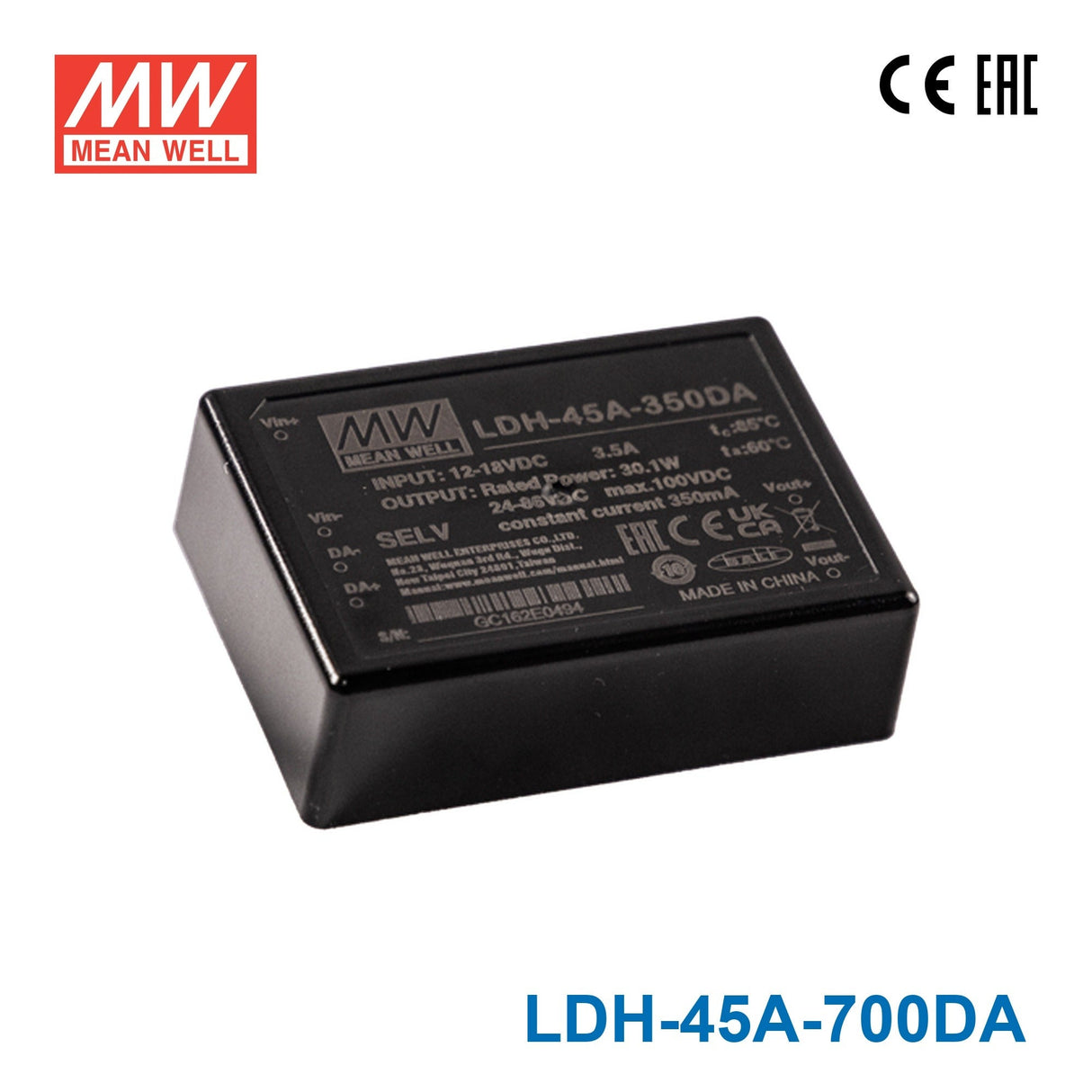

Mean Well LDH-45A-700DA DC/DC LED Driver CC 700mA - Step-up
Overview
LDH-45A-700DA is the model of this series: rated current 700mA, rated power 44.8W, typical efficiency 90%.
Features
- DC/DC step-up converter
- Constant current output : 350mA to 1050mA
- Wide output LED string voltage up to 126VDC
- High efficiency up to 95%
- PWM + analog dimming and remote ON/OFF control [(Blank) type or W type]
- DALI dimming [(Blank)DA type or WDA type]
- Protections: Short circuit / Over voltage / Under voltage
- Cooling by free air convection
- Fully encapsulated
- 3 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 700mA
- CURRENT ACCURACY(Typ.)
- ±5% at 12VDC input
- VOLTAGE RANGE Non-DALINote.2
- 12~64VDC
- VOLTAGE RANGE DALINote.2
- 24~64VDC
- NO LOAD OUTPUT VOLTAGE(max.)
- 75V
- RATED POWER
- 44.8W
- RIPPLE & NOISE (max.)Note.3
- 1.9Vp-p
INPUT
- RATED VOLTAGE
- 12VDC
- VOLTAGE RANGENote.2
- 9~18VDC
- EFFICIENCY (max.)
- 90%
- DC CURRENT (Typ.)
- 4.2A
PWM DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power ON with dimming: PWM signal >2~8VDC or open circuit, between PWM DIM and DIM- Power OFF : PWM signal <0.5VDC or short or PWM duty is equal to 0%, between PWM DIM and DIM-
- PWM DIMMING FREQUENCY
- 1K~10KHz
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when PWM dimming OFF
ANALOG DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power on with dimming: DC input >0.25~8VDC or open circuit, between Analog DIM and DIM- Power off : DC input <0.2VDC or short, between Analog DIM and DIM-
- DIM INPUT VOLTAGE RANGE
- 0.25~1.3VDC
- MAX OPERATION VOLTAGE
- 8V; The output current remains constant when voltage changes from 1.3V to 8V
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when Analog dimming OFF
PROTECTION
- SHORT CIRCUIT
- Protection type : Power OFF and fuse open
- OVER VOLTAGE (max.)
- 75V Protection type : Constant output voltage and shut off o/p current, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
SAFETY & EMC
- SAFETY STANDARDS
- LVD BS EN/EN61347-1, BS EN/EN61347-2-13,EAC TP TC 004 approved
- EMC EMISSION
- Compliance to BS EN/EN55015;EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level;EAC TP TC 020
OTHERS
- MTBF
- 12195.2K hrs min. Telcordia SR-332 (Bellcore) ; 1179.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 75*53*22.7mm (L*W*H)
- PACKING
- 138g;100pcs/14.8Kg/0.83CUFT[(Blank) type or (Blank) DA type],1.04CUFT(W type or WDA type)
Test conditions and notes3
- 1. All parameters are specified at normal input(12VDC,24VDC), rated load, 25℃ 70% RH ambient.
- 2. (Blank) type and W type output voltage must step up by 3 Volts from input DC voltage; (Blank)DA type and WDA type output voltage must step up by 12 Volts from input DC voltage.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf parallel capacitor.
Technical drawings
Downloads
FAQ
Can the LDH-45A-700DA be used with 700mA LED downlights that need a higher LED string voltage?
Yes, this model is suited to constant current 700mA downlights when the LED load operates within its 24-64V constant current range. It is rated for 44.8W, so both current and total load power need to match.
Is this driver appropriate for a 700mA signage module assembly?
It can be used for signage modules if the assembly is designed for 700mA constant current operation. The driver regulates across 24-64V and is not intended for constant voltage LED products.
Can I use this for a small LED array in harsh weather or dusty areas?
The datasheet gives no IP or waterproof rating, so in harsh weather or dusty areas the driver must be protected by the fixture; the operating temperature range is -40°C to +70°C (refer to the derating curve). Electrically, the LED array still needs to be a 700mA constant current load within 24-64V and 44.8W.
Will this driver work with my LED string, and how many LEDs can I put on it?
This driver provides 700mA constant current with a 24-64V output range, so compatibility depends on whether your LED string is designed for that current and falls inside that voltage window. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED count for this model.
Is the LDH-45A-700DA suitable for outdoor enclosures and wide temperature swings?
It operates from -40°C to +70°C (refer to the derating curve), which covers wide temperature swings. No IP or waterproof rating is listed and humidity is rated 20-90% RH non-condensing, so the outdoor enclosure must keep out water and condensation.
