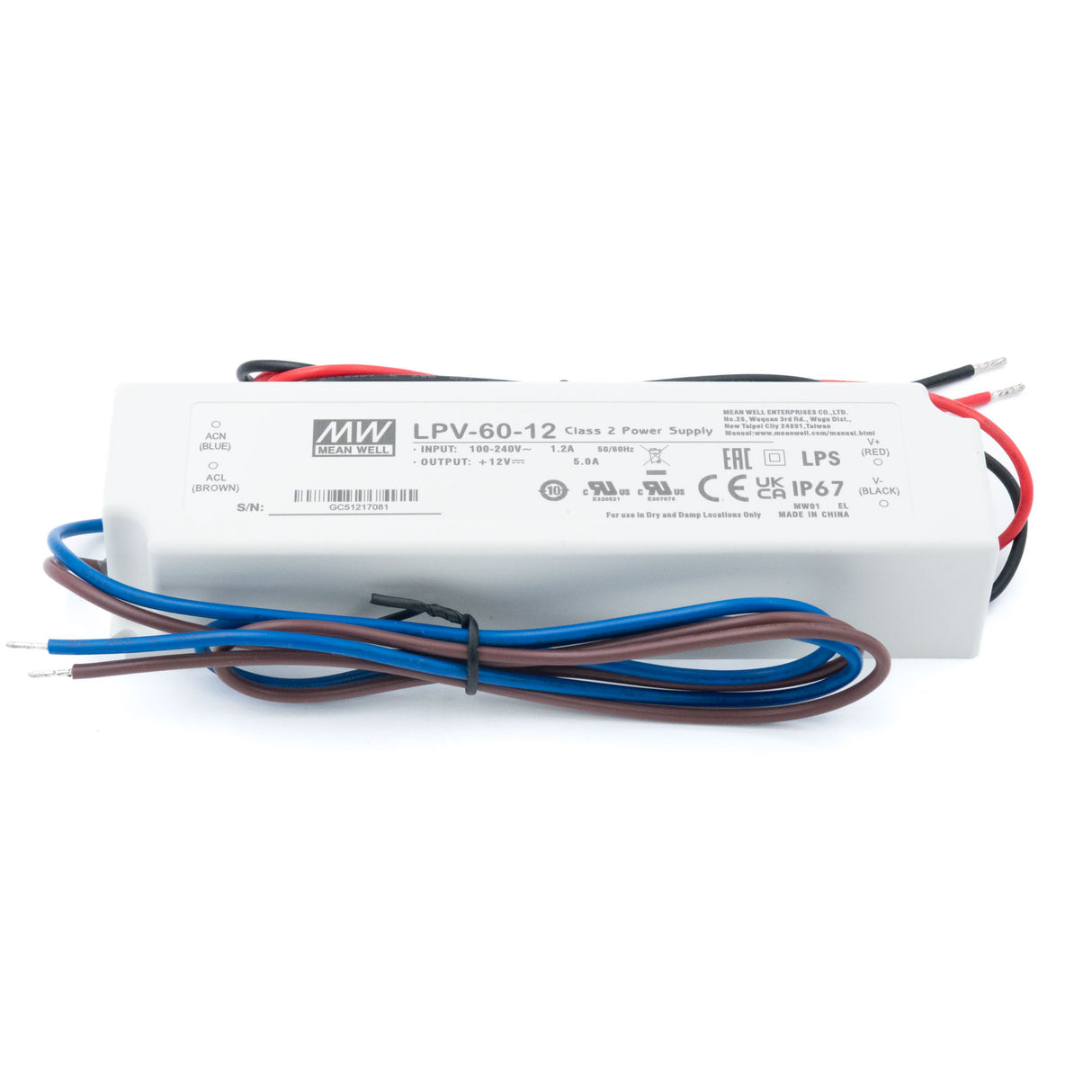

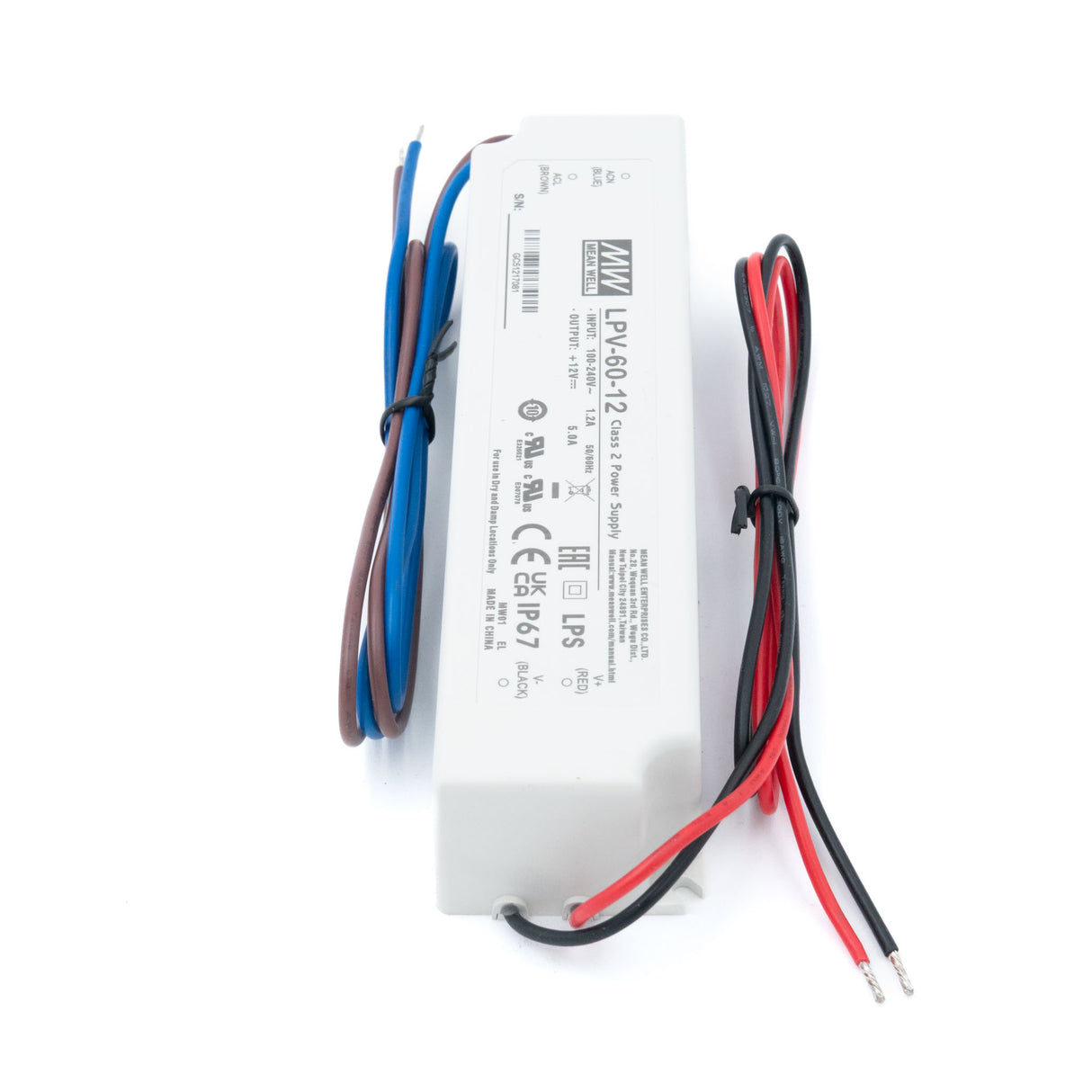

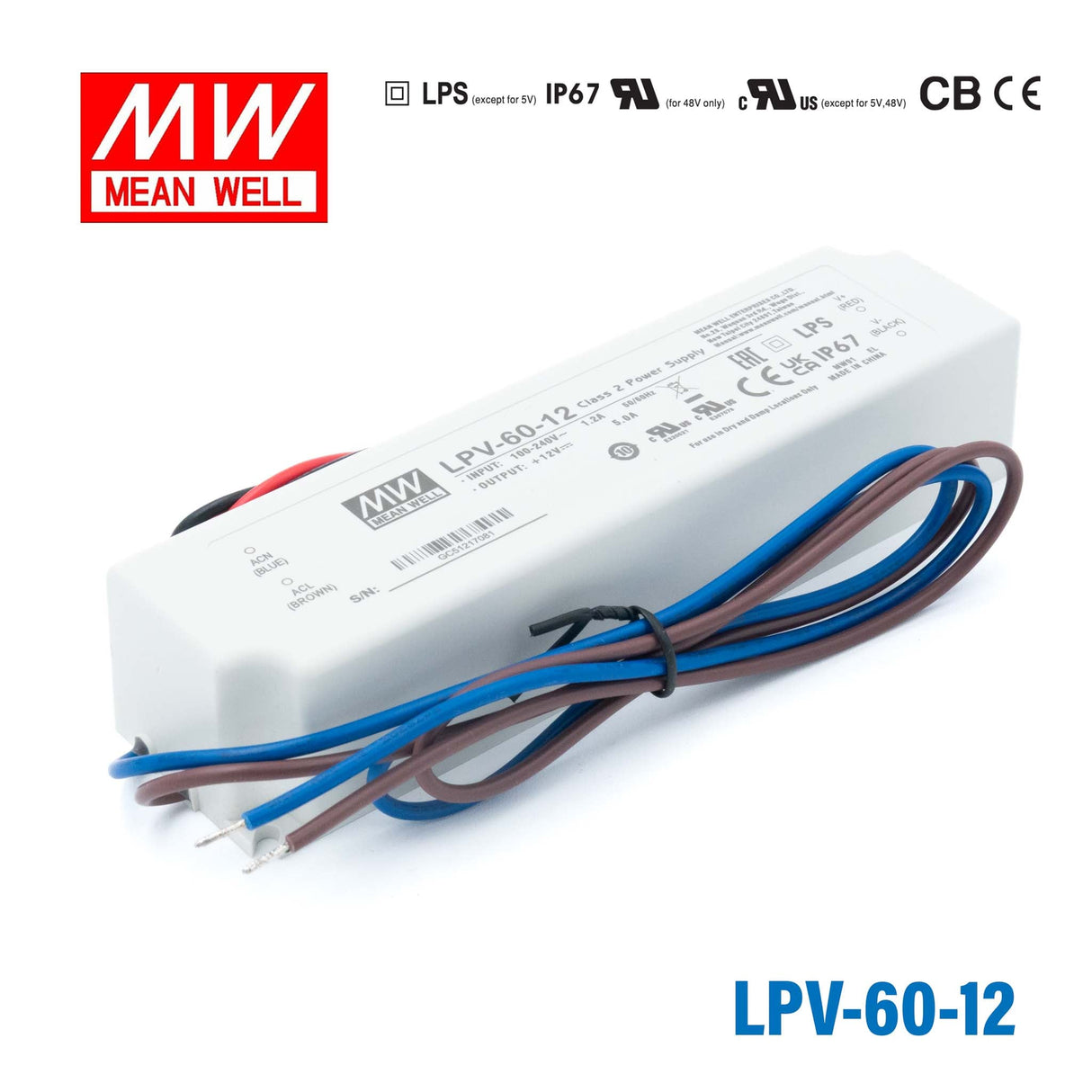

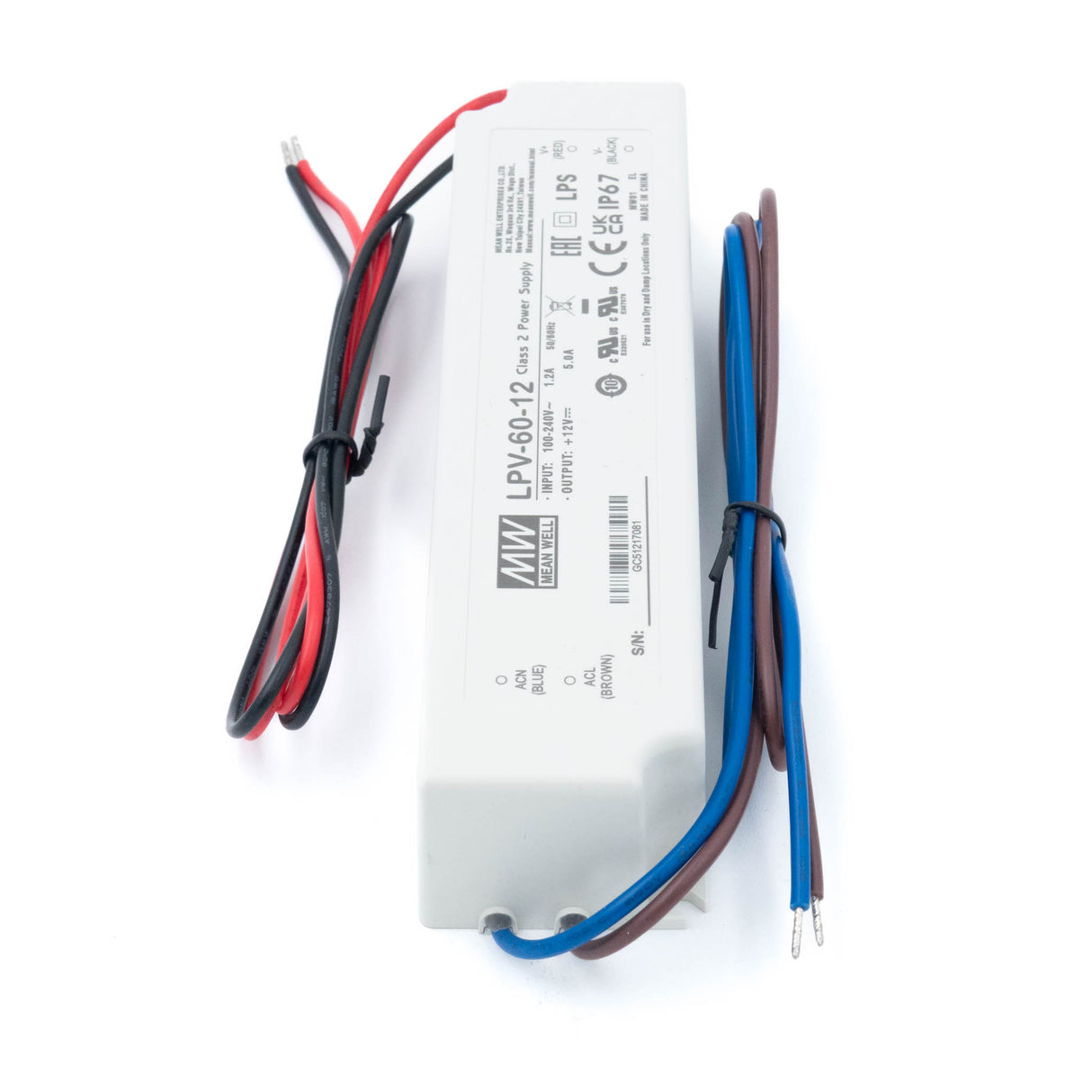

Mean Well LPV-60-12 LED Driver — 60W 12V 5A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-60-12 LED Driver — 60W 12V 5A IP67 Waterproof
Description
Description
Mean Well LPV-60-12 LED Driver — 60W 12V 5A IP67 Waterproof
The Mean Well LPV-60-12 is a 60W, 12V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 12V DC output at up to 5A and carries CB, CE, EAC, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-60-12 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +70°C making it suitable for outdoor and harsh-environment installations.
Key Features
- Constant voltage output: 12V DC at up to 5A (60W max)
- IP67 waterproof and dustproof — suitable for outdoor installations
- Universal AC input: 90-264VAC
- Certifications: CB, CE, EAC, UL
- Wide operating temperature: -30°C to +70°C
- Built-in protections: short circuit, overload, over-voltage
- Compact, lightweight enclosure: 162.5 × 42.5 × 32.0 mm, 0.4 kg
- 2-year Mean Well warranty
Specifications
| Model | LPV-60-12 |
| Output Power | 60W |
| Output Voltage | 12V DC |
| Output Current | 5A |
| Operation Mode | Constant Voltage |
| Input Voltage Range | 90-264VAC |
| IP Rating | IP67 Waterproof |
| Certifications | CB, CE, EAC, UL |
| Operating Temperature | -30°C to +70°C |
| Dimensions (L × W × H) | 162.5 × 42.5 × 32.0 mm |
| Weight | 0.4 kg |
| Warranty | 2 Years |
Applications
- LED signage and electronic displays
- Architectural and decorative LED lighting
- Outdoor and landscape LED installations
- Stage and theater LED lighting
- LED strip and tape lighting
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.4 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What LED strip lengths can the LPV-60-12 realistically power?
The LPV-60-12 provides 60W at 12V (5A). To estimate the maximum strip length, divide 60W by your strip's rated power per metre — a strip at 10 W/m, for instance, supports up to 6 metres (60 ÷ 10 = 6 m). Always confirm the rated W/m on your specific strip before specifying the run length.
Is the LPV-60-12 suitable for fully outdoor, weather-exposed mounting?
The LPV-60-12 is IP67 rated — fully dust-tight and protected against temporary water immersion — and operates from -30°C to +70°C. These ratings make it appropriate for outdoor signage, facade LED strips, and similar installations that face direct weather exposure.
How does the LPV-60-12 compare to the LPV-35-12 for the same 12V application?
Both are 12V IP67 constant-voltage drivers, but the LPV-60-12 is rated at 60W (5A) versus the LPV-35-12 at 36W (3A). The LPV-60-12 also uses a larger enclosure (162.5 × 42.5 × 32.0 mm versus 148 × 40 × 30 mm) and adds a CB certification not present on the LPV-35-12. Choose based on the total wattage the installation requires.
What certifications does the LPV-60-12 carry?
The LPV-60-12 holds CB, CE, EAC, and UL certifications. CB certification facilitates market approval in over 50 countries that participate in the IECEE CB scheme, which is useful for international projects.
Is the LPV-60-12 appropriate for use in both 120V and 240V countries?
Yes. The 90–264VAC universal input range covers both North American 120V and European/Australian 230–240V mains supplies without any manual adjustment, making the unit interchangeable across regions.
Other LPV-60 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPV-60-24 LED Driver — 60W 24V 2.5A IP67 Waterproof | 60W | 24V | 2.5A | IP67 | $17.01 | View |
| Mean Well LPV-60-48 LED Driver — 60W 48V 1.25A IP67 Waterproof | 60W | 48V | 1.25A | IP67 | $16.22 | View |
| Mean Well LPV-60-36 LED Driver — 60W 36V 1.67A IP67 Waterproof | 60W | 36V | 1.67A | IP67 | $16.22 | View |
| Mean Well LPV-60-5 LED Driver — 40W 5V 8A IP67 Waterproof | 40W | 5V | 8A | IP67 | $16.22 | View |
| Mean Well LPV-60-15 LED Driver — 60W 15V 4A IP67 Waterproof | 60W | 15V | 4A | IP67 | $16.22 | View |
