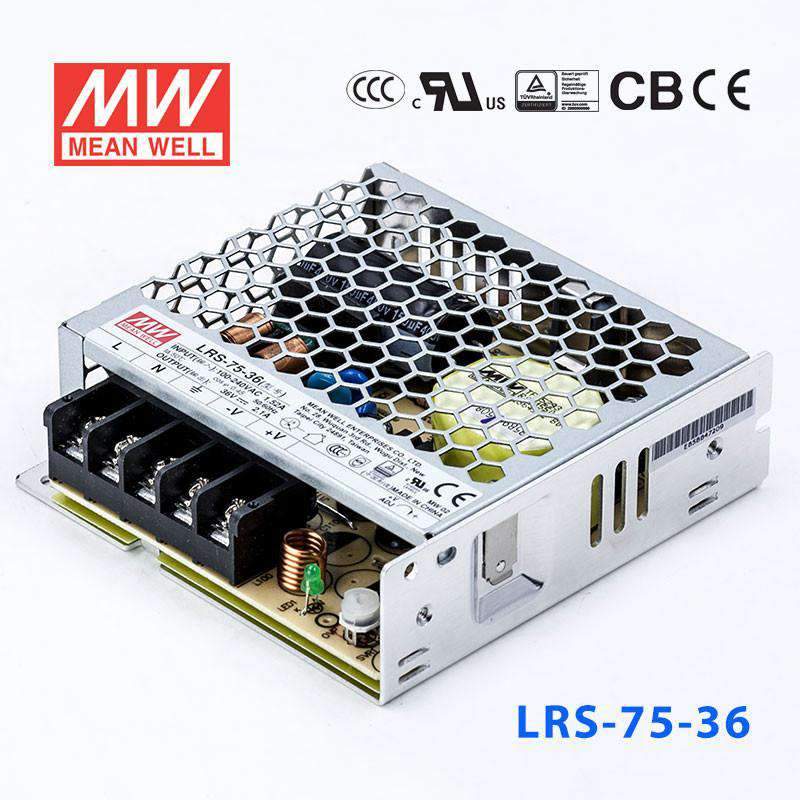

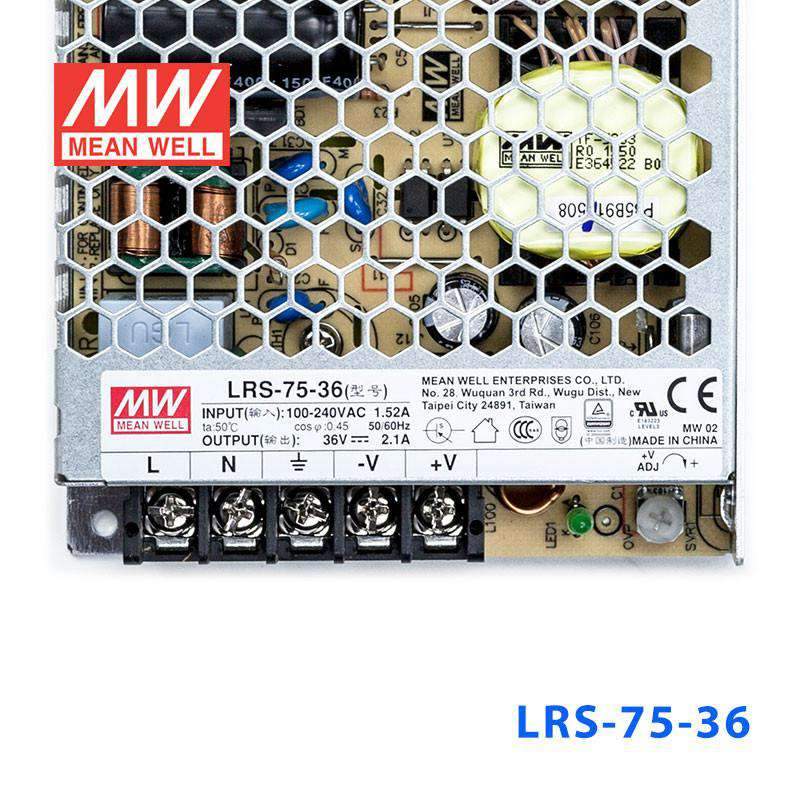

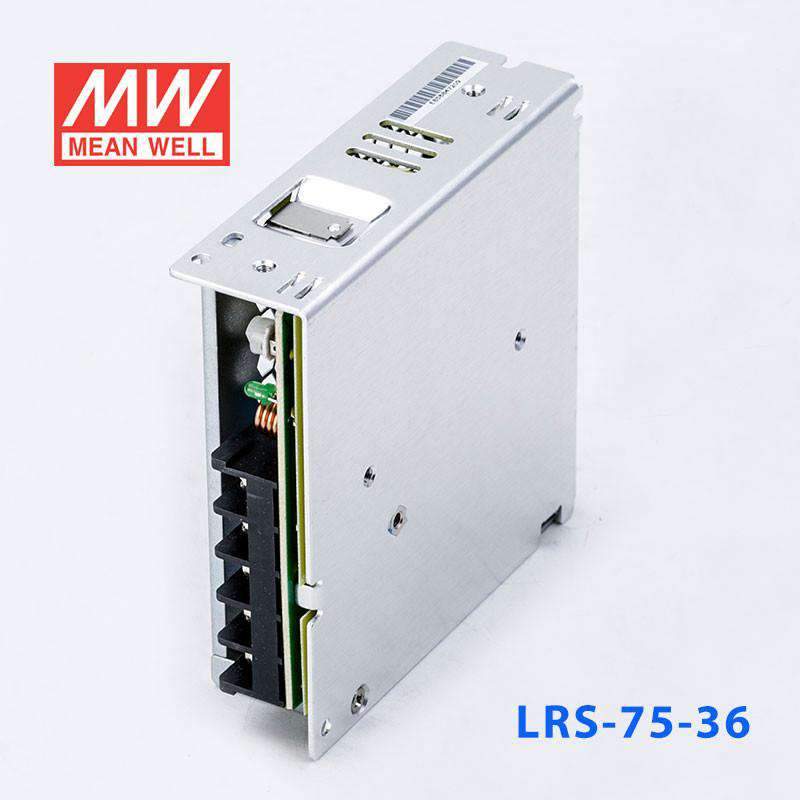

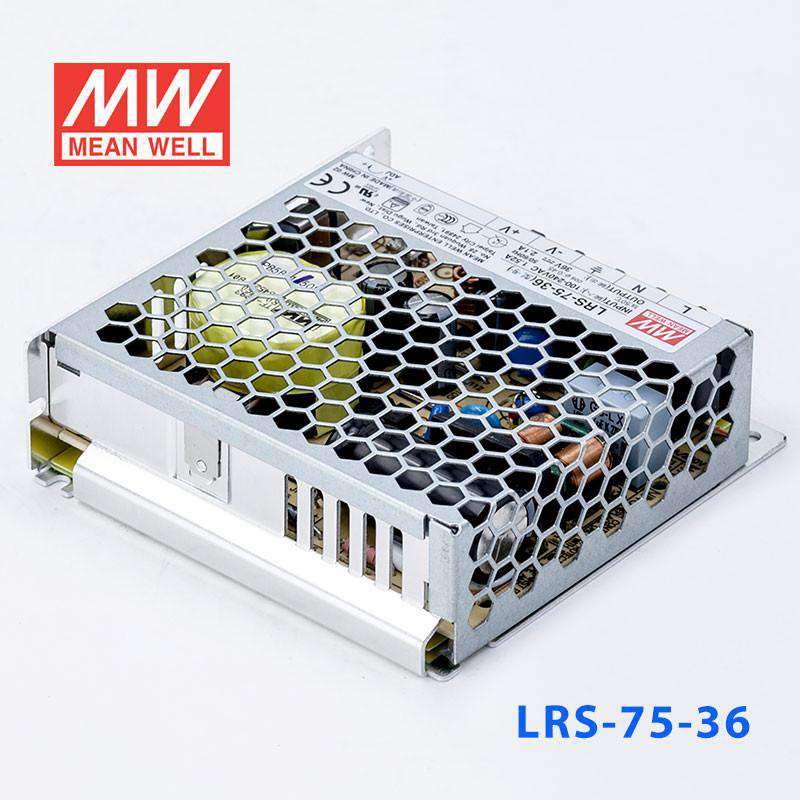

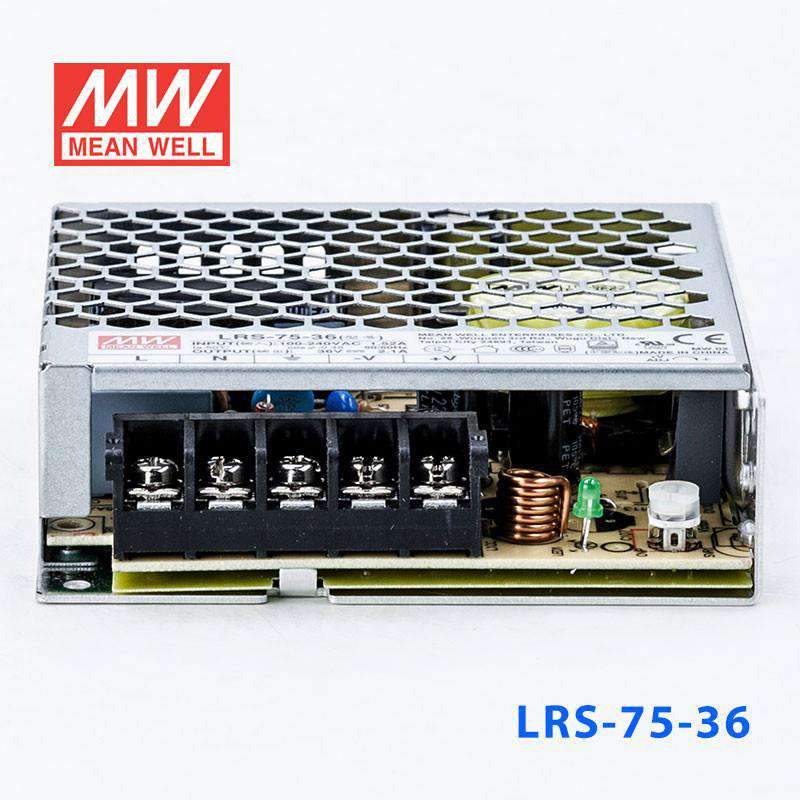

Mean Well LRS-75-36 Power Supply 75W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-75-36 Power Supply 75W 36V
Description
Description
Features:
No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100W
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances
Operating altitude up to 5000 meters
High efficiency, long life and high reliability
LED indicator for power on
Low cost
3 years warranty
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 45A at 230VAC |
| DC adjustment range | ±10% by potentiometer |
| Overload protection Range | 110%~150% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~135% rated output voltage |
| Over voltage protection Type | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254 |
| Connection | 5P/9.5mm pitch terminal block |
| Dimension (LxWxH) | 99x 97x 30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating75.6 Watt
-
Output Voltage36 Volt
-
Rated Current2.1 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.51 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 36V equipment can the LRS-75-36 power at 2.1A?
At 36V and 2.1A (75.6W), the LRS-75-36 is suitable for small 36V brushless motor drivers, 36V battery-format test supplies, and specific 36V sensor networks or field instruments. Its compact 99 × 97 × 30 mm form factor fits into tight panel installations.
How does the LRS-75-36 compare to the LRS-75-24 and LRS-75-48?
All three share the 99 × 97 × 30 mm case, 0.23 kg weight, 85–264VAC input, and -30°C to +70°C operating range. LRS-75-24 (76.8W, 3.2A at 24V), LRS-75-36 (75.6W, 2.1A at 36V), LRS-75-48 (76.8W, 1.6A at 48V). Wattage is nearly identical; the primary selection criterion is the required DC output voltage.
Does the LRS-75-36 support cold-start in unheated environments?
The LRS-75-36 is rated for -30°C to +70°C operation. This -30°C lower limit allows cold-start in unheated industrial buildings or cold-climate installations inside a suitably rated protective enclosure. Continuous full-rated output is maintained throughout the operating range.
What certifications does the LRS-75-36 hold?
The LRS-75-36 carries BSMI, CB, CCC, CE, EAC, RCM, TÜV, and UL certifications, covering North America, Europe, China, Taiwan, Australia/New Zealand, and Eurasia. This broad certification set supports international procurement and regulatory compliance.
