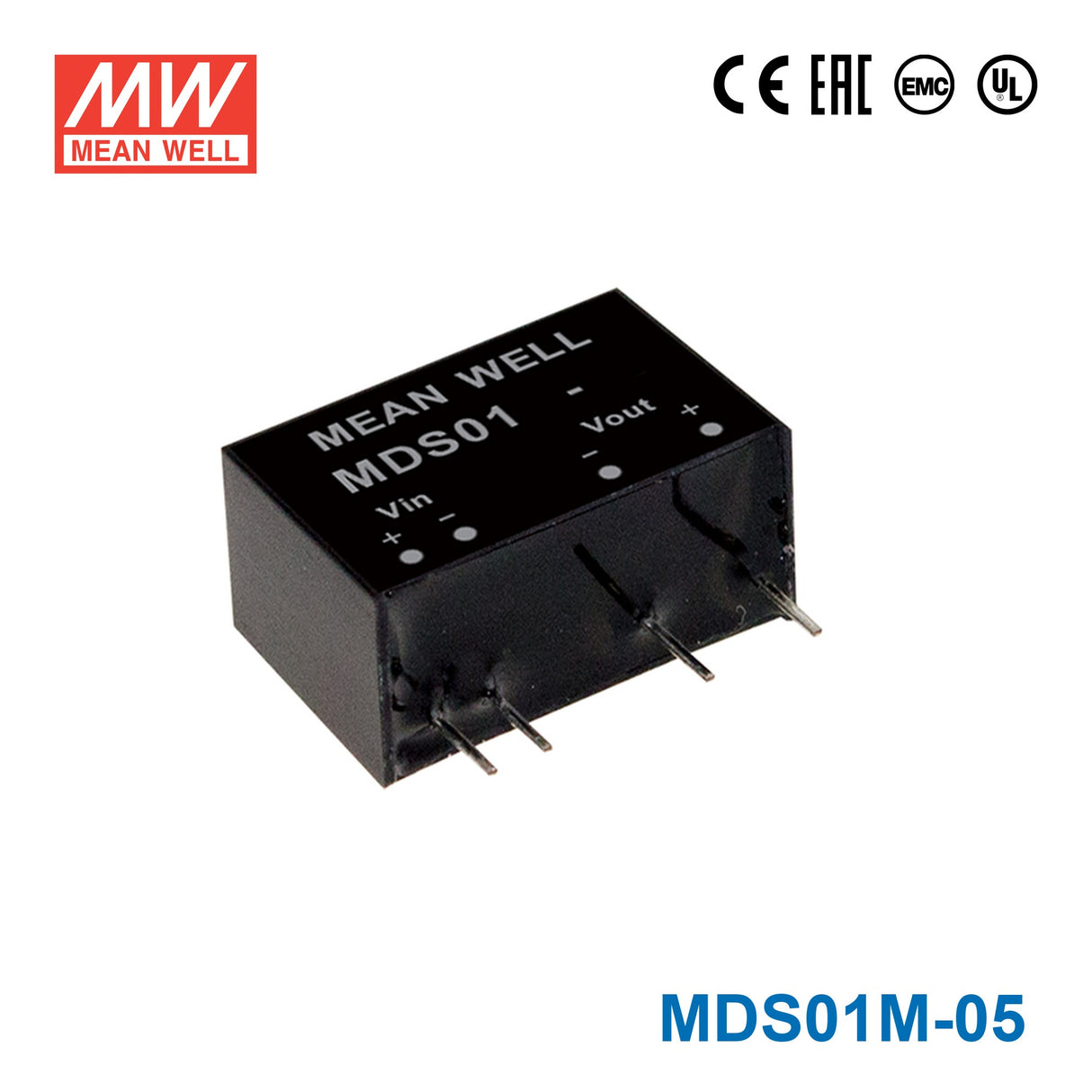

Mean Well MDS01M-05 DC-DC Converter - 1W - 10.8~13.2V in 5V out
$5.67 USD
Unit price /
Unavailable
Description
Description
Features
| SI7 package with international standard pinout |
| Operating temperature range -40~+85℃ |
| 4:1 wide input range |
| Medical safety approved(2xMOPP) according to IEC60601-1 |
| Low patient leakage current <5µA |
| Protections: Short circuit(Continuous)/Overload |
| 6KVDC or 4.2KVAC high I/O isolation(Reinforced isolation) |
| Low cost |
| 3 years warranty |
General Specification
| Voltage accuracy | ±5.0% |
| Efficiency | 82% |
| Short circuit protection | 3-second max |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55011 class A, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.02% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 19.5*9.8*12.5mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,EMC,LVD,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.77 in
-
Width0.49 in
-
Height0.39 in
-
Weight0.01 lb
