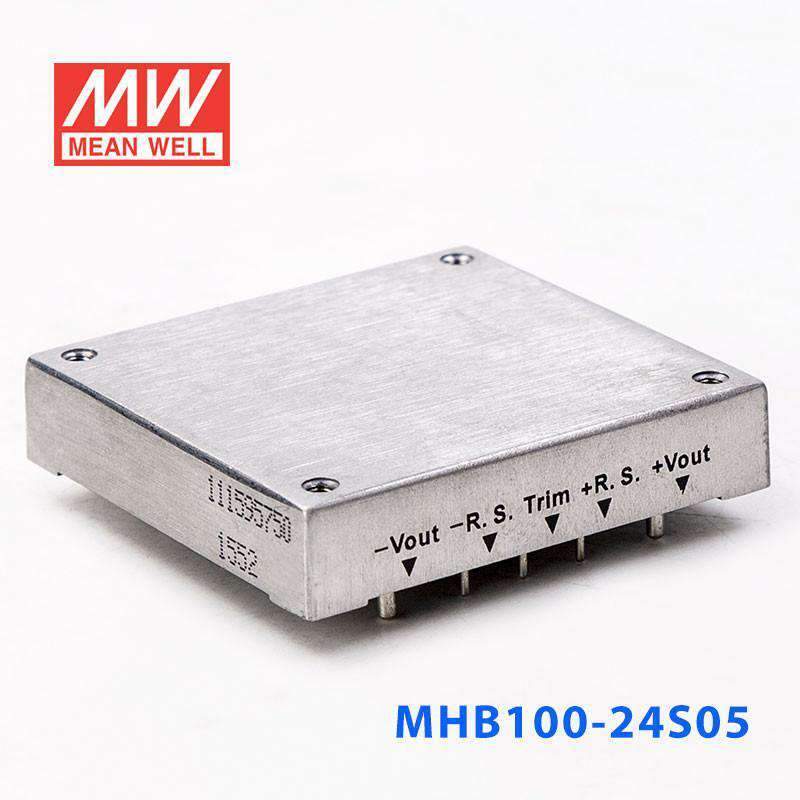

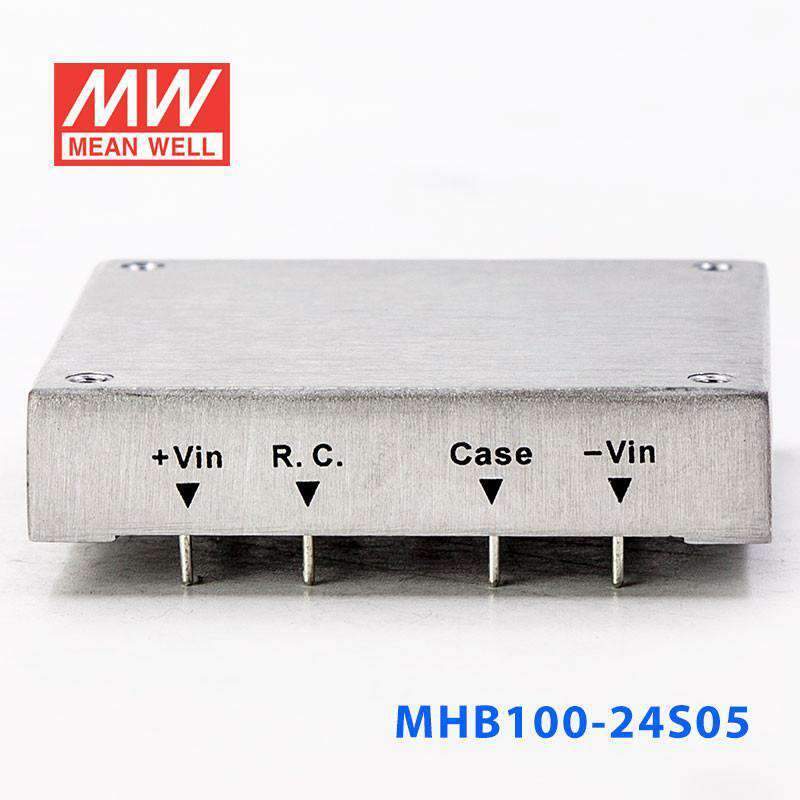

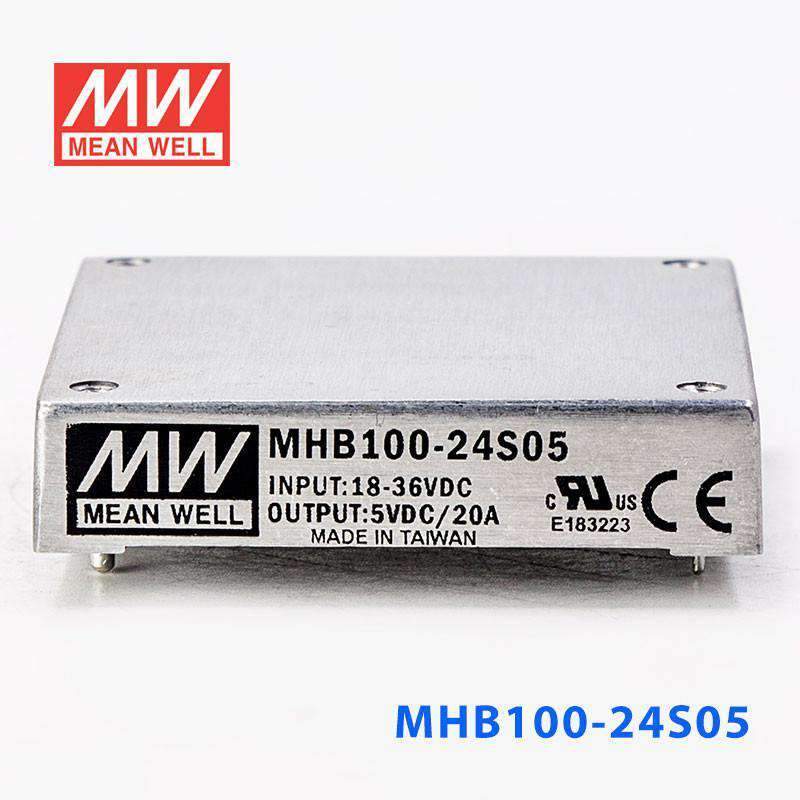

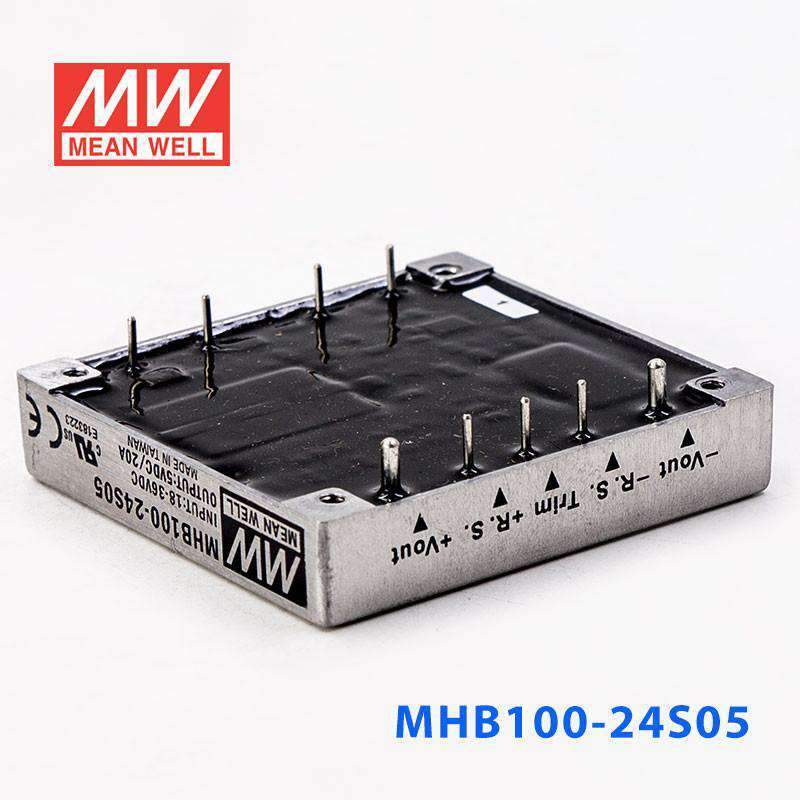

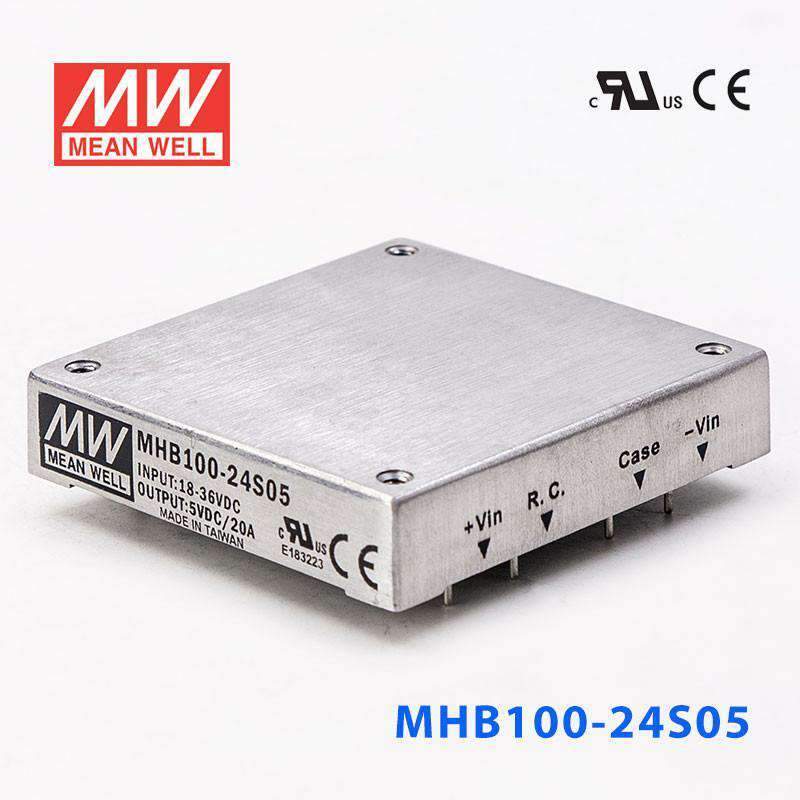

Mean Well MHB100-24S05 DC-DC Converter - 100W - 18~36V in 5V out

SKU:

MHB100-24S05

$82.90 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Half-brick size (2.28" 2.4" 0.5") with industry standard pin out

2:1 wide input range

Protections: Short circuit / Over current / Over voltage / Over temperature

High efficiency up to 89%

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in remote sense function

Trimming output ±10%

Five-sided shield metal case

Optional heat sinks for extended operating temperature

Output 2.5V/3.3V/15V available

Approvals: UL / CUL / CE

3 years warranty

General Specification

Over current protection	110%~140% rated output power; Protection type: over current limiting, recovers automatically after fault condition is removed
Over temperature protection	Case temperature 100°C±5°C, Over temperature protection enabled
Over voltage protection	115%~140%; Protection mode: Output Voltage clamping by zener diode
Withstand voltage	I/P-O/P:1500VDC,I/P-Case:1500VDC,O/P-Case:1500VDC
Working temperature	-40~100°C; Thermal shutdown at 100°C±5°C of case temperature(Please refer to Thermal Curve)
Safety standards	UL60950-1 approved
EMC standards	With external components Compliance to EN55022 Class A(Please refer to ¨¹EMC Suggestion Circuit¨¹)
Dimension (LxWxH)(mm)	57.9 x 61 x 12.7 mm

Specifications

Brand

Mean Well
Series

MHB Series
Power Rating

100 Watt
Output Voltage

5 Volt
Rated Current

20 Ampere
Input Voltage

18V~36V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,EMC,RCM,TUV
Operation Mode

Constant Voltage
Operating Temperature

-55°C~105°C
Warranty

3 Year
Length

2.4 in
Width

2.28 in
Height

0.5 in
Weight

0.21 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MHB100-24S05 to step a 24V system down to 5V for industrial electronics?

Yes, this converter is designed for an 18-36V input range and provides a constant 5V output. It is rated for 100W and 20A, which suits higher-current 5V industrial electronics within those limits.

Is the MHB100-24S05 suitable for powering 5V embedded computing or control hardware from a nominal 24V source?

It is a fit when the upstream source is within the 18-36V input range and the downstream load needs 5V constant voltage. With 100W and 20A available on the output, it supports heavier 5V loads than lower-power board supplies.

Can this converter run 5V automation peripherals in vehicles, mobile equipment, or battery-backed systems?

It can fit 24V-class systems that stay within the stated 18-36V input range and need a regulated 5V output. The -55C to +105C operating temperature range is broader than many standard enclosed power products.

How does the MHB100-24S05 compare with the other MHB100 versions?

This model is the 18-36V input, 5V output version with 100W and 20A output. The other siblings are MHB100-24S12 at 100W, 12V, 8.3A; MHB100-24S24 at 100W, 24V, 4.17A; MHB100-48S05 at 100W, 5V, 20A; MHB100-48S12 at 100W, 12V, 8.3A; and MHB100-48S24 at 100W, 24V, 4.17A.

Is the MHB100-24S05 appropriate for outdoor or extreme-temperature environments?

Its operating temperature range is -55C to +105C, which makes it suitable for very cold and very hot equipment environments. No IP rating is listed, so outdoor use should be inside a protective enclosure rather than exposed directly.
