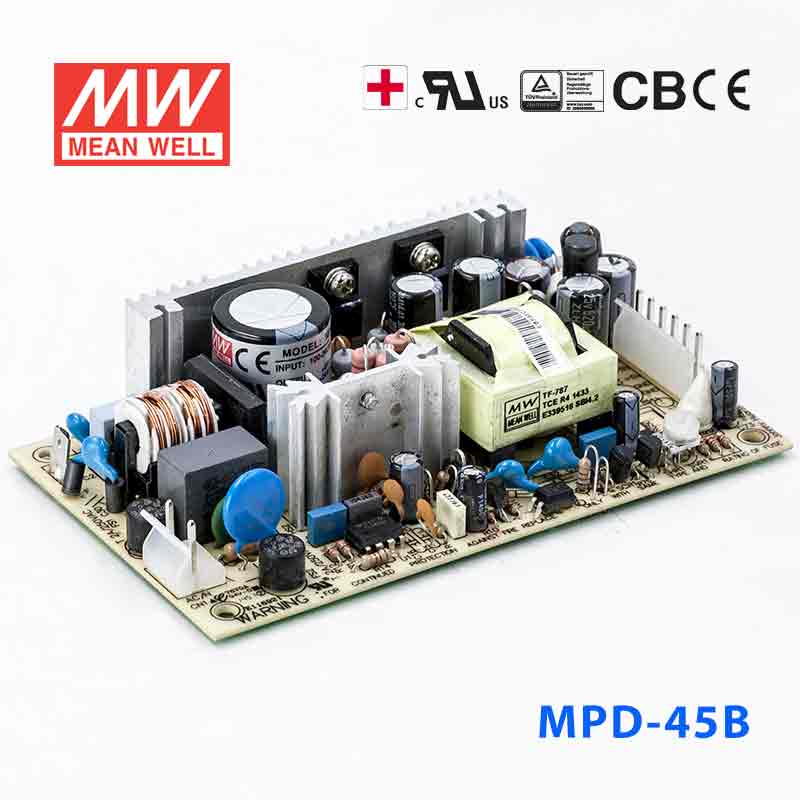

Mean Well MPD-45B Power Supply 45W 5V 24V 3.2A
Overview
MPD-45B is the CH1: 5V / CH2: 24V output model of this series: rated current CH1: 3.2A / CH2: 1.2A, rated power 44.8W, typical efficiency 78%.
Features
- Universal AC input / Full range
- Low leakage current <250μA
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Medical safety approved (2 x MOPP between primary to secondary)
- 100% full load burn-in test
- Fixed switching frequency at 45KHz
- 3 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 / CH2
- DC VOLTAGE
- CH1: 5V / CH2: 24V
- RATED CURRENT
- CH1: 3.2A / CH2: 1.2A
- CURRENT RANGE
- CH1: 0.4 ~ 5A / CH2: 0.2 ~ 1.8A
- RATED POWER
- 44.8W
- OUTPUT POWER (max.)
- 52W with 18CFM min. Forced air convection
- RIPPLE & NOISE (max.)Note.2
- CH1: 60mVp-p / CH2: 150mVp-p
- VOLTAGE ADJ. RANGE
- CH1:4.5 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- CH1: ±4.0% / CH2: ±7.0%
- LINE REGULATION
- CH1: ±1.0% / CH2: ±2.0%
- LOAD REGULATION
- CH1: ±3.0% / CH2: ±4.0%
- SETUP, RISE TIME
- 800ms, 20ms/230VAC 800ms, 20ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 50ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 78%
- AC CURRENT (Typ.)
- 1.2A/115VAC 0.7A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 15A/115VAC 30A/230VAC
- LEAKAGE CURRENTNote.7
- Earth leakage current < 250μA/264VAC , Touch current < 60μA/264VAC
PROTECTION
- OVERLOAD
- 53 ~ 75W rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 6.75V on CH1 Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.04%/℃ (0 ~ 50℃) on +5V output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level
OTHERS
- MTBF
- 3353.4K hrs min. Telcordia SR-332 (Bellcore) ; 432.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 127*76*28mm (L*W*H)
- PACKING
- 0.2Kg; 72pcs/17.4Kg/1.28CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
- 5. Mounting holes M1 and M2 should be grounded for EMI purposes.
- 6. Heat Sink HS1,HS2 can not be shorted.
- 7. Touch current was measured from primary input to DC output.
Technical drawings
Downloads
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the MPD-45B for a 5V PLC or industrial control board?
It can fit 5V control electronics that need constant voltage, as long as the 5V channel (CH1) stays within its 3.2A rating and the total load, including the 24V channel (CH2, 1.2A), stays within 44.8W. The wide 90-264VAC input also suits facilities that may see different AC mains ranges.
Is the MPD-45B suitable for 5V embedded systems or single-board computer projects in equipment cabinets?
It is sized for 5V embedded loads that need up to 3.2A from a constant voltage supply. Its 127.0 × 76.0 × 28.0 mm form factor and 0.2 kg weight make it more appropriate for enclosed equipment than higher-power chassis supplies.
Can the MPD-45B power 5V automation accessories like sensors, logic modules, or small HMI electronics?
It is a practical fit for 5V automation accessories when the 5V channel stays at or below 3.2A and the combined load of both channels stays at or below 44.8W. Because it is a constant voltage model, it is intended for equipment designed around regulated 5V and 24V rails.
Is the MPD-45B better for indoor panels or outdoor use?
The published specs list an operating temperature range of -10°C to +60°C, but they do not list an IP rating. That means the environment rating should be treated as temperature information only, and any exposure concerns need to be handled at the system level.
How does the MPD-45B compare with other MPD series options?
The MPD-45 sheet lists two models. MPD-45B provides 5V at 3.2A plus 24V at 1.2A, 44.8W rated, with 78% typical efficiency. MPD-45A provides 5V at 3.2A plus 12V at 2A, 40W rated, with 76% typical efficiency.
