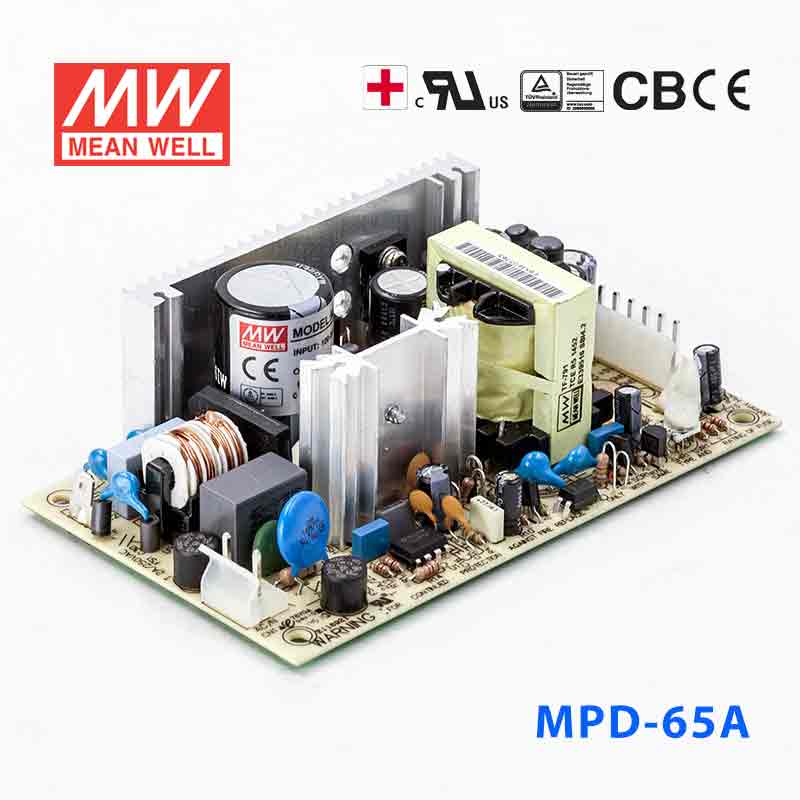

Mean Well MPD-65A Power Supply 65W 5V 12V 5.5A
Overview
MPD-65A is the model of this series: rated power 61.1W, typical efficiency 75%.
Features
- Universal AC input / Full range
- Low leakage current <250μA
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Medical safety approved (2 x MOPP between primary to secondary)
- 100% full load burn-in test
- Fixed switching frequency at 45KHz
- 3 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1, CH2
- DC VOLTAGE CH1
- 5V
- DC VOLTAGE CH2
- 12V
- RATED CURRENT CH1
- 5.5A
- RATED CURRENT CH2
- 2.8A
- CURRENT RANGE CH1
- 0.4 ~ 7A
- CURRENT RANGE CH2
- 0.2 ~ 3.2A
- RATED POWER
- 61.1W
- OUTPUT POWER (max.)
- 72W with 18CFM min. Forced air convection
- RIPPLE & NOISE (max.) CH1Note.2
- 60mVp-p
- RIPPLE & NOISE (max.) CH2Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- CH1:4.5 ~ 5.5V
- VOLTAGE TOLERANCE CH1Note.3
- ±4.0%
- VOLTAGE TOLERANCE CH2Note.3
- ±7.0%
- LINE REGULATION CH1
- ±1.0%
- LINE REGULATION CH2
- ±2.0%
- LOAD REGULATION CH1
- ±3.0%
- LOAD REGULATION CH2
- ±4.0%
- SETUP, RISE TIME
- 800ms, 20ms/230VAC 800ms, 20ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 80ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 75%
- AC CURRENT (Typ.)
- 1.6A/115VAC 1A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 20A/115VAC 40A/230VAC
- LEAKAGE CURRENTNote.7
- Earth leakage current < 250μA/264VAC , Touch current < 60μA/264VAC
PROTECTION
- OVERLOAD
- 73 ~ 105W rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 6.75VDC on CH1 Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +55℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.04%/℃ (0 ~ 50℃) on +5V output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level, criteria A
OTHERS
- MTBF
- 3353.4K hrs min. Telcordia SR-332 (Bellcore) ; 432.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 127*76*42mm (L*W*H)
- PACKING
- 0.25Kg; 54pcs/16Kg/1.28CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
- 5. Mounting holes M1 and M2 should be grounded for EMI purposes.
- 6. Heat Sink HS1,HS2 can not be shorted.
- 7. Touch current was measured from primary input to DC output.

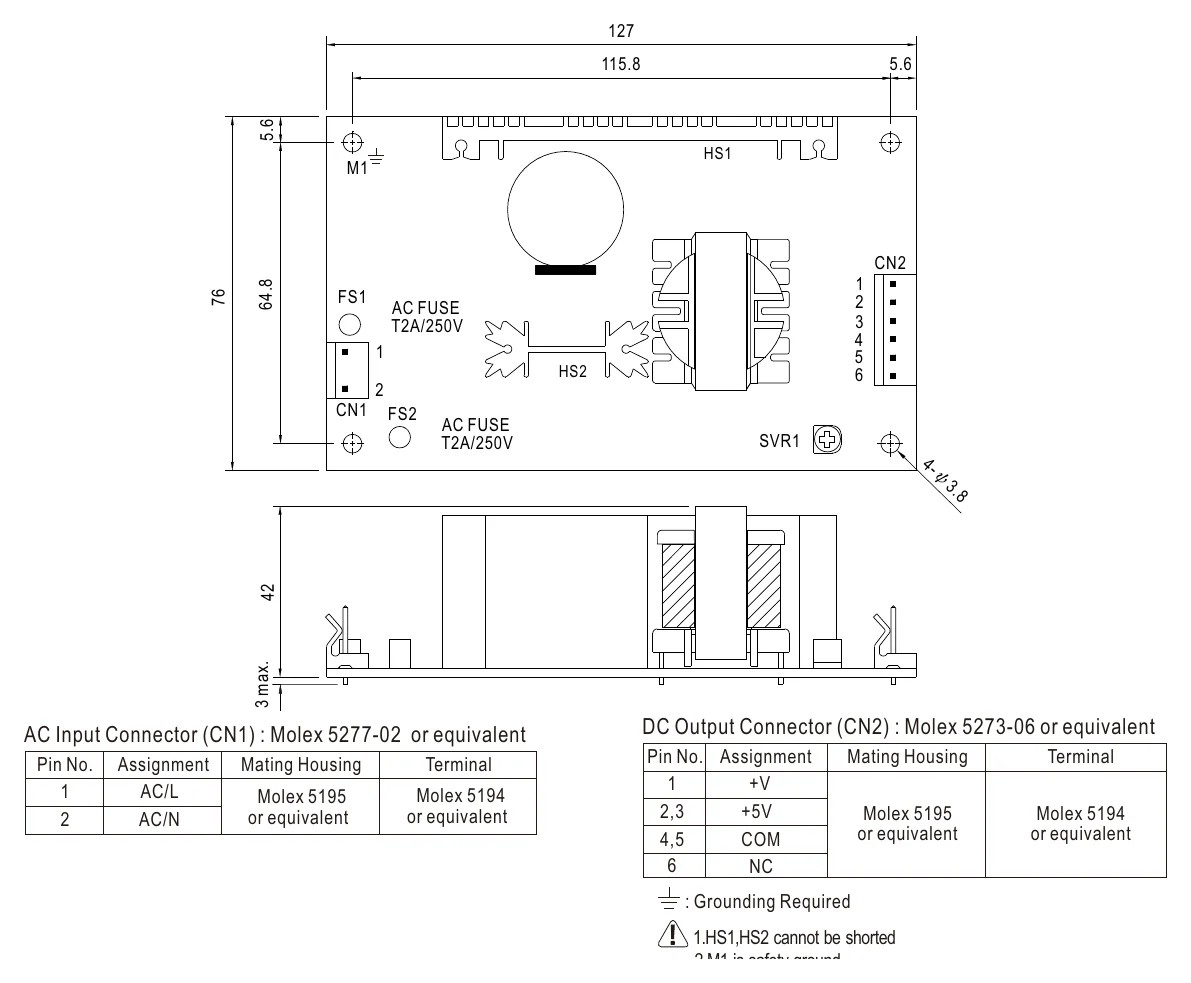

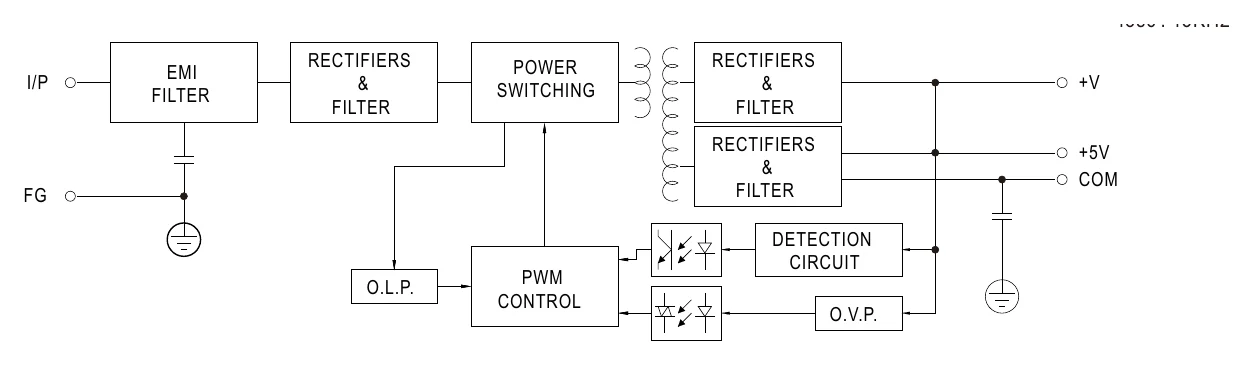

Technical drawings
Downloads
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the MPD-65A for a 5V PLC rack or industrial controller with more load than a 45W unit?
Only if the load is split across both outputs. The 61.1W rating is shared between the 5V/5.5A CH1 and the 12V/2.8A CH2, so the 5V rail alone is rated at 27.5W. It suits PLC logic and controller boards whose 5V demand stays within 5.5A.
Is the MPD-65A a good fit for 5V embedded computing inside factory or lab equipment?
It can support 5V embedded computing loads that need up to 5.5A and are designed for constant voltage input. The 90-264VAC input range also makes it usable across a wide span of AC supply conditions.
Can the MPD-65A power multiple 5V automation devices from one supply?
Yes, grouped 5V loads are fine as long as their combined demand stays within the 5V channel's 5.5A rating and the total of both outputs stays within 61.1W. The 12V CH2 output (2.8A) can power additional 12V devices.
Will the MPD-65A work in cold or warm control cabinets?
The rated operating temperature is -10°C to +55°C, with output derating per the derating curve. No IP rating is listed in the specs, so the environmental guidance here is limited to temperature and 20-90% RH non-condensing humidity rather than enclosure protection.
How does the MPD-65A compare with other MPD series models?
Within the MPD-65 series, the MPD-65A provides 5V at 5.5A plus 12V at 2.8A for 61.1W rated power and 75% typical efficiency. The MPD-65B provides 5V at 3.5A plus 24V at 2A for 65.5W and 78% efficiency. Both share the 90-264VAC input, 72W maximum with 18CFM forced air, and 127x76x42mm size.
