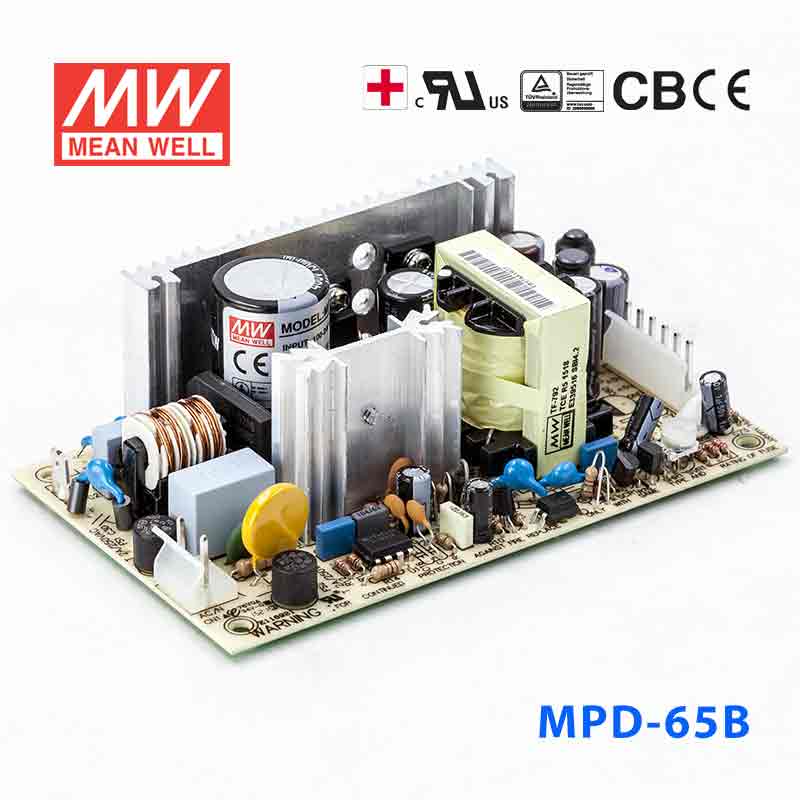

Mean Well MPD-65B Power Supply 65W 5V 24V 3.5A
Overview
MPD-65B is the model of this series: rated power 65.5W, typical efficiency 78%.
Features
- Universal AC input / Full range
- Low leakage current <250μA
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Medical safety approved (2 x MOPP between primary to secondary)
- 100% full load burn-in test
- Fixed switching frequency at 45KHz
- 3 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1, CH2
- DC VOLTAGE CH1
- 5V
- DC VOLTAGE CH2
- 24V
- RATED CURRENT CH1
- 3.5A
- RATED CURRENT CH2
- 2A
- CURRENT RANGE CH1
- 0.4 ~ 6A
- CURRENT RANGE CH2
- 0.2 ~ 2.6A
- RATED POWER
- 65.5W
- OUTPUT POWER (max.)
- 72W with 18CFM min. Forced air convection
- RIPPLE & NOISE (max.) CH1Note.2
- 60mVp-p
- RIPPLE & NOISE (max.) CH2Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- CH1:4.5 ~ 5.5V
- VOLTAGE TOLERANCE CH1Note.3
- ±4.0%
- VOLTAGE TOLERANCE CH2Note.3
- ±7.0%
- LINE REGULATION CH1
- ±1.0%
- LINE REGULATION CH2
- ±2.0%
- LOAD REGULATION CH1
- ±3.0%
- LOAD REGULATION CH2
- ±4.0%
- SETUP, RISE TIME
- 800ms, 20ms/230VAC 800ms, 20ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 80ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 78%
- AC CURRENT (Typ.)
- 1.6A/115VAC 1A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 20A/115VAC 40A/230VAC
- LEAKAGE CURRENTNote.7
- Earth leakage current < 250μA/264VAC , Touch current < 60μA/264VAC
PROTECTION
- OVERLOAD
- 73 ~ 105W rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 6.75VDC on CH1 Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +55℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.04%/℃ (0 ~ 50℃) on +5V output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level, criteria A
OTHERS
- MTBF
- 3353.4K hrs min. Telcordia SR-332 (Bellcore) ; 432.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 127*76*42mm (L*W*H)
- PACKING
- 0.25Kg; 54pcs/16Kg/1.28CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
- 5. Mounting holes M1 and M2 should be grounded for EMI purposes.
- 6. Heat Sink HS1,HS2 can not be shorted.
- 7. Touch current was measured from primary input to DC output.
Technical drawings
Downloads
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the MPD-65B for 5V industrial logic and control electronics?
Yes, its CH1 output is a regulated 5V rail rated at 3.5A, alongside a 24V CH2 output rated at 2A, for 65.5W total. That makes it a fit for 5V logic, interface, and control electronics when the 5V current stays within 3.5A.
Is the MPD-65B suitable for 5V embedded systems in industrial or IT equipment?
Yes, for embedded systems that need a regulated 5V rail and draw no more than 3.5A. The 90-264VAC input range is also useful in equipment that may be deployed across different AC mains standards.
Can the MPD-65B handle a 5V control assembly that needs more wattage than a 45W supply?
Not on the 5V rail alone. The 65.5W rating is shared between the 5V/3.5A CH1 and the 24V/2A CH2, so the 5V output is rated at 17.5W. Up to 72W total is available only with 18CFM minimum forced air cooling.
Is the MPD-65B meant for indoor or outdoor environments?
The specifications give an operating range of -10°C to +55°C, with output derating per the derating curve, and 20-90% RH non-condensing humidity, but no IP rating is listed. It is a component power supply intended to be installed inside final equipment.
What are the main differences between the MPD-65B and other MPD siblings?
Within the MPD-65 series, the MPD-65B provides 5V at 3.5A plus 24V at 2A for 65.5W rated power and 78% typical efficiency. The MPD-65A provides 5V at 5.5A plus 12V at 2.8A for 61.1W and 75% efficiency. Both share the 90-264VAC input, 72W maximum with 18CFM forced air, and 127x76x42mm size.
