Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

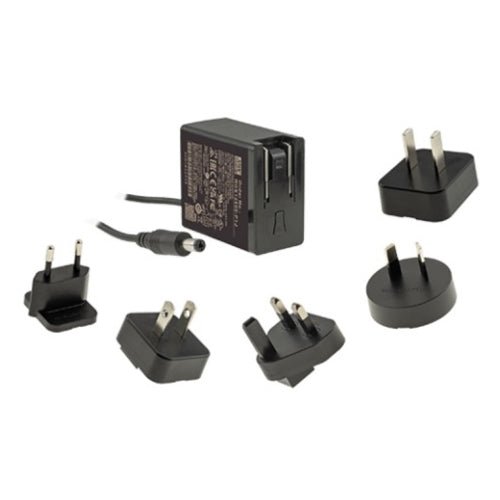

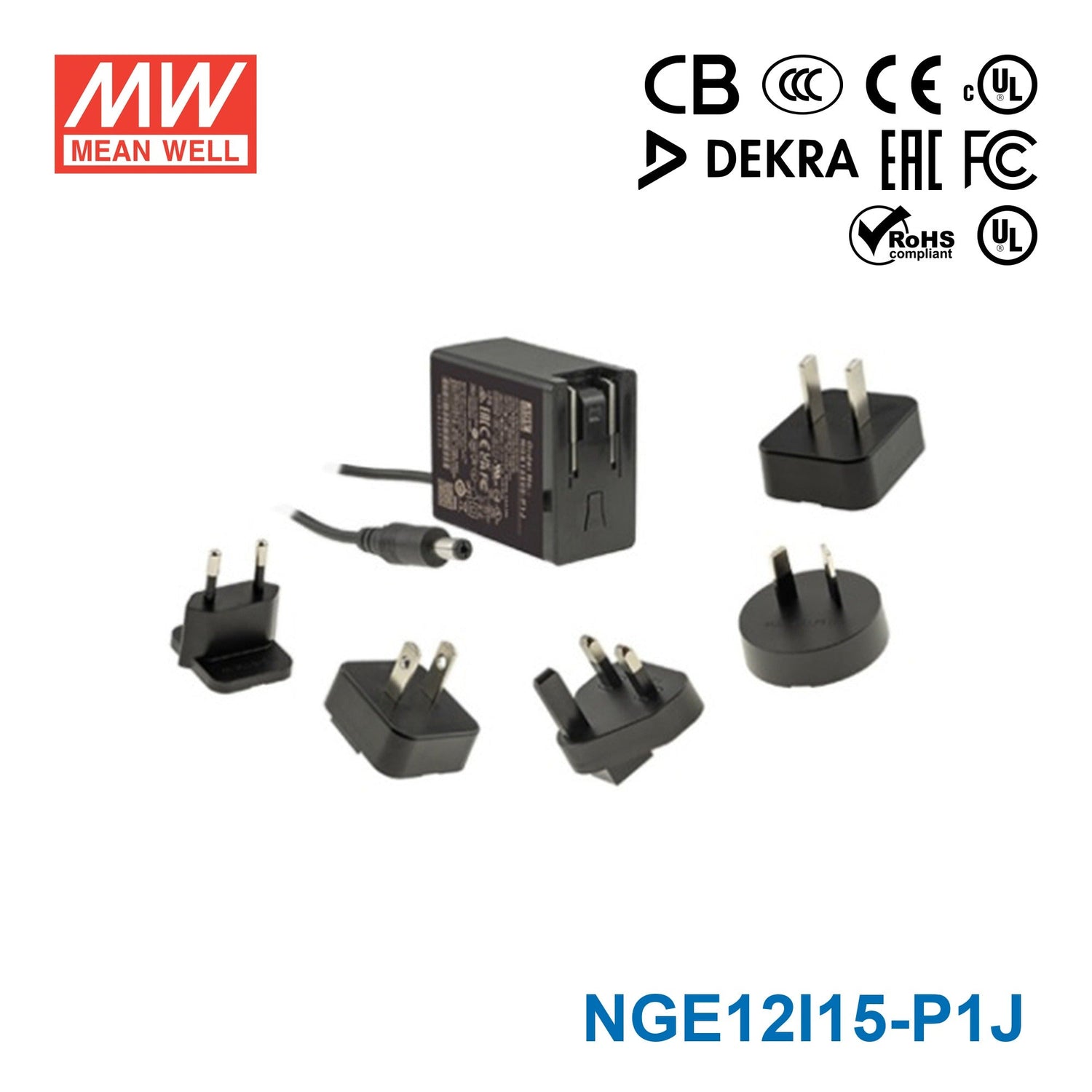

Mean Well NGE12I15-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 12W 15V 0.8A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE12I15-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Description
Description
Features
| MEAN WELL Patent Application Number: 202330347779.4 |
| Interchangeable AC plugs |
| Universal AC input / Full range |
| Ultra slim(28mm) |
| No load power consumption< 0.075W |
| Energy efficiency level VI |
| Class II power (no earth pin) |
| Protections: Short circuit / Overload / Over voltage |
| Pass LPS |
| Extremely low leakage current <100uA |
| -30℃ ~ + 70℃ wide range working temperature |
| Various DC plug quick adapter accessory available |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC 113 ~ 370VDC |
| AC inrush current (max.) | COLD START 40A / 115VAC 80A / 230VAC |
| Setup, rise, hold up time | 1500ms, 30ms, 30ms / 230VAC 3000ms, 30ms, 10ms / 115VAC at full load |
| Overload protection | Protection type : Hiccup mode, recovers automatically after fault condition is removed | 110% ~ 150% rated output power |
| Over voltage protection | Protection type : Clamp by zener diode | 115% ~ 140% rated output voltage |
| Withstand voltage | I/P-O/P:4000VAC |
| Working temperature | -30 ~ +70℃ (Refer to "Derating Curve") |
| Safety standards | CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1； PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved. | Dimension (LxWxH) | 48x28x55mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating12 Watt
-
Output Voltage15 Volt
-
Rated Current0.8 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length1.89 in
-
Width1.1 in
-
Height2.17 in
-
Weight0.29 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well NGE12I15-P1J provide?
This model is rated for 15V DC output at up to 0.8A. Its maximum power rating is 12W, which matches applications that require a regulated 15V supply within that current limit.
What makes the NGE12I15-P1J suitable for international or multi-region use?
The NGE12I15-P1J supports universal AC input from 80 to 264VAC and uses interchangeable AC plugs. That makes it a practical option for businesses serving different regions without changing the core power adaptor model.
Is this adaptor energy efficient for low-power equipment?
Yes. This model meets Energy Efficiency Level VI and has very low no-load power consumption of less than 0.075W. That makes it a strong fit for devices that may remain plugged in for long periods.
What protection features are built into the NGE12I15-P1J?
This adaptor includes short circuit, overload, and over-voltage protection. The overload protection uses hiccup mode and automatically recovers after the fault condition is removed.
Can the NGE12I15-P1J be used in demanding temperature conditions?
This model is specified for operation from -30°C to +70°C. That wide working temperature range makes it suitable for equipment used in both cold and warm environments, subject to the product's stated derating guidance.
Is this a compact wall-mounted power adaptor?
Yes. The NGE12I15-P1J is a wall-mounted AC-DC adaptor with a slim 28mm profile and overall dimensions of 48 x 28 x 55mm. Its compact form factor helps when space is limited around outlets or installed equipment.
