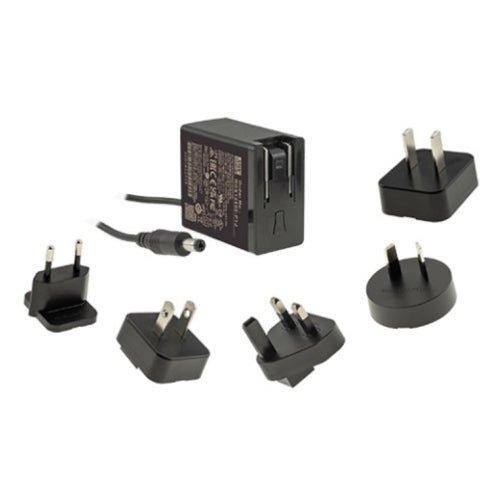

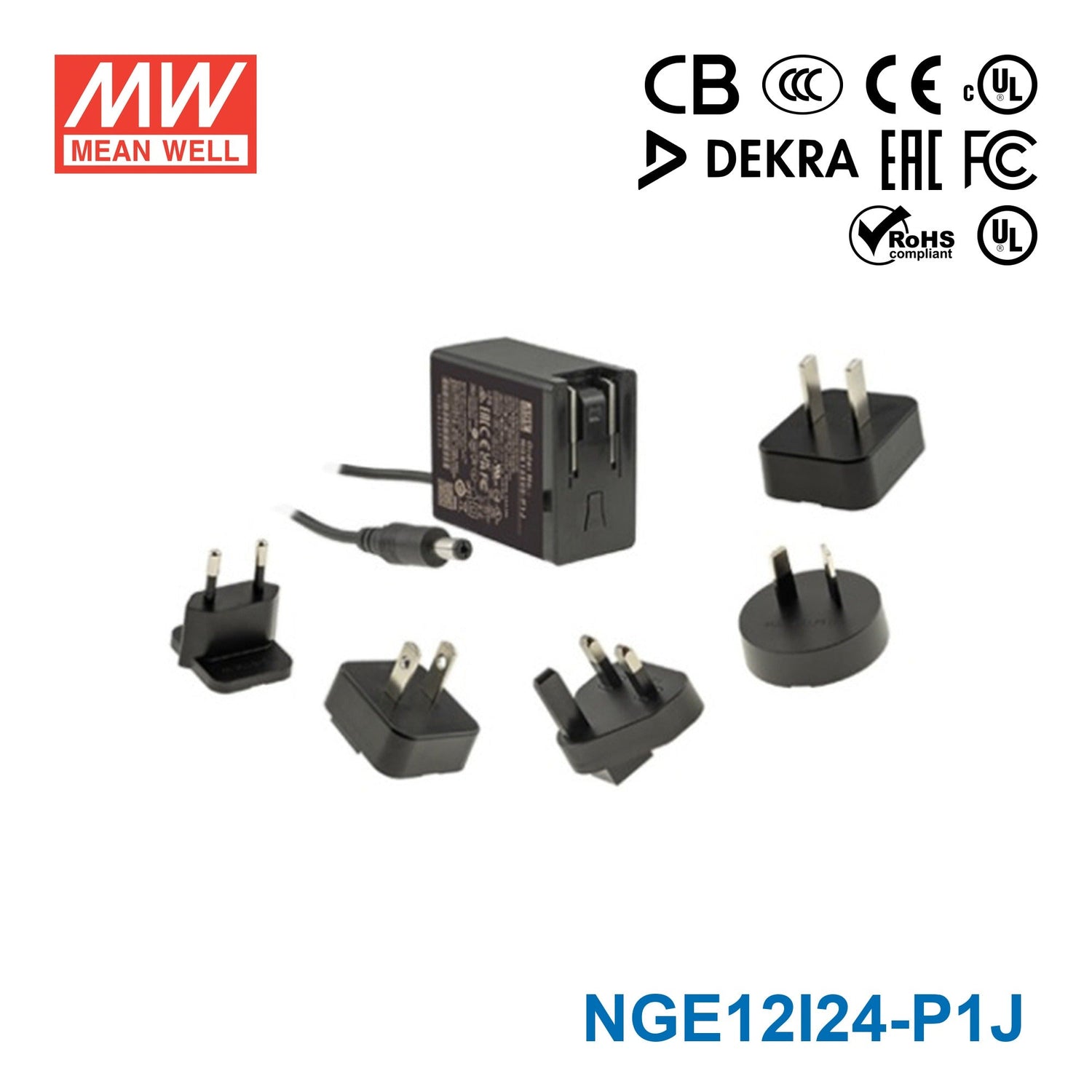

Mean Well NGE12I24-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 12W 24V 0.625A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE12I24-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Description
Description
Features
| MEAN WELL Patent Application Number: 202330347779.4 |
| Interchangeable AC plugs |
| Universal AC input / Full range |
| Ultra slim(28mm) |
| No load power consumption< 0.075W |
| Energy efficiency level VI |
| Class II power (no earth pin) |
| Protections: Short circuit / Overload / Over voltage |
| Pass LPS |
| Extremely low leakage current <100uA |
| -30℃ ~ + 70℃ wide range working temperature |
| Various DC plug quick adapter accessory available |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC 113 ~ 370VDC |
| AC inrush current (max.) | COLD START 40A / 115VAC 80A / 230VAC |
| Setup, rise, hold up time | 1500ms, 30ms, 30ms / 230VAC 3000ms, 30ms, 10ms / 115VAC at full load |
| Overload protection | Protection type : Hiccup mode, recovers automatically after fault condition is removed | 110% ~ 150% rated output power |
| Over voltage protection | Protection type : Clamp by zener diode | 115% ~ 140% rated output voltage |
| Withstand voltage | I/P-O/P:4000VAC |
| Working temperature | -30 ~ +70℃ (Refer to "Derating Curve") |
| Safety standards | CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1； PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved. | Dimension (LxWxH) | 48x28x55mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length1.89 in
-
Width1.1 in
-
Height2.17 in
-
Weight0.29 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well NGE12I24-P1J provide?
The NGE12I24-P1J provides a regulated 24V DC output at 0.625A. It is described as a 12W wall-mounted AC-DC adaptor with interchangeable plug capability. This makes it suitable for equipment that requires a 24V DC supply within that current rating.
What makes the NGE12I24-P1J suitable for international or multi-region use?
This model supports universal AC input over 80 to 264VAC and uses interchangeable AC plugs. That combination makes it useful for buyers standardizing one adaptor platform across different regions. It is also listed with multiple international safety approvals.
Is the Mean Well NGE12I24-P1J designed for energy-efficient operation?
Yes, this adaptor is rated to Energy Efficiency Level VI and has no-load power consumption below 0.075W. Those specifications make it a strong fit for applications where standby efficiency matters. It is positioned as a green adaptor in the product name and feature set.
What protection features are included in the NGE12I24-P1J?
The NGE12I24-P1J includes protection against short circuit, overload, and over voltage. The overload protection uses hiccup mode and recovers automatically after the fault condition is removed. Over-voltage protection is provided by zener diode clamp circuitry.
Can this power adaptor be used in demanding temperature environments?
This model has a specified working temperature range of -30°C to +70°C. That wide operating range makes it more suitable than many basic adaptors for industrial or commercial environments with variable ambient conditions. Buyers should still ensure the full application stays within the product's rated limits.
What kinds of applications is the NGE12I24-P1J commonly suited for?
This adaptor is generally suited for commercial and industrial devices that need a compact 24V DC wall-mounted power supply at up to 0.625A. Its Class II design, low leakage current, and broad safety standard coverage make it relevant for professional equipment procurement. Final compatibility depends on the device's required voltage, current draw, and plug format.
How compact is the Mean Well NGE12I24-P1J?
The listed dimensions are 48 x 28 x 55 mm, and the design is described as ultra slim with a 28 mm profile. It also has a product weight of 0.13 kg. This compact format helps when a low-profile wall adaptor is preferred.
