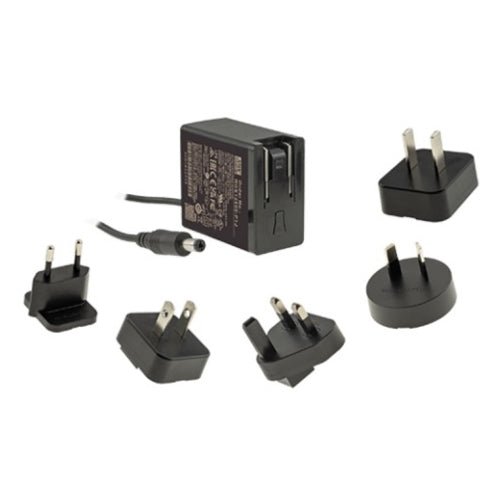

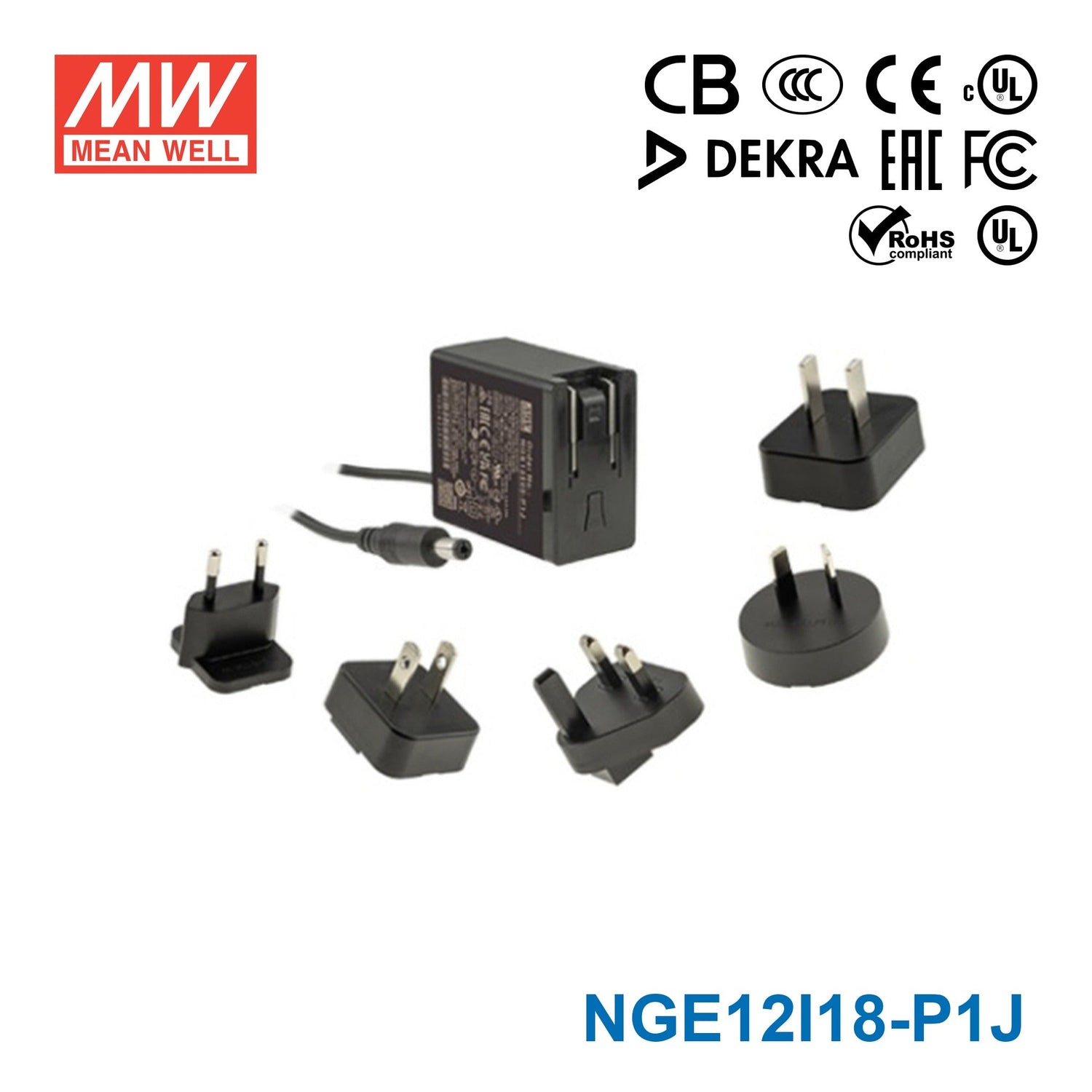

Mean Well NGE12I18-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 12W 18V 0.83A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE12I18-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Description
Description
Features
| MEAN WELL Patent Application Number: 202330347779.4 |
| Interchangeable AC plugs |
| Universal AC input / Full range |
| Ultra slim(28mm) |
| No load power consumption< 0.075W |
| Energy efficiency level VI |
| Class II power (no earth pin) |
| Protections: Short circuit / Overload / Over voltage |
| Pass LPS |
| Extremely low leakage current <100uA |
| -30℃ ~ + 70℃ wide range working temperature |
| Various DC plug quick adapter accessory available |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC 113 ~ 370VDC |
| AC inrush current (max.) | COLD START 40A / 115VAC 80A / 230VAC |
| Setup, rise, hold up time | 1500ms, 30ms, 30ms / 230VAC 3000ms, 30ms, 10ms / 115VAC at full load |
| Overload protection | Protection type : Hiccup mode, recovers automatically after fault condition is removed | 110% ~ 150% rated output power |
| Over voltage protection | Protection type : Clamp by zener diode | 115% ~ 140% rated output voltage |
| Withstand voltage | I/P-O/P:4000VAC |
| Working temperature | -30 ~ +70℃ (Refer to "Derating Curve") |
| Safety standards | CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1； PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved. | Dimension (LxWxH) | 48x28x55mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating15 Watt
-
Output Voltage18 Volt
-
Rated Current0.83 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length1.89 in
-
Width1.1 in
-
Height2.17 in
-
Weight0.29 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What kinds of devices is the Mean Well NGE12I18-P1J typically used for?
This model is an AC-DC wall-mounted adaptor designed for equipment that requires an 18V DC power source with up to 0.83A output. It is generally suited to low-power commercial or industrial devices that match those electrical requirements. Buyers should confirm their equipment's required voltage and current before selecting this adaptor.
Is the NGE12I18-P1J compatible with international mains power?
Yes. It supports a universal AC input range of 80 to 264VAC, with interchangeable AC plugs for broader regional use. That makes it a practical choice for businesses sourcing one adaptor platform for different markets.
What output does this adaptor provide?
The NGE12I18-P1J provides a regulated 18V DC output with a rated current of 0.83A. It is intended for devices that need that voltage and do not exceed the adaptor's rated output current. The model is part of Mean Well's green adaptor range with low no-load power consumption.
Does this power adaptor include built-in protection features?
Yes. This model includes protection against short circuit, overload, and over voltage. Its overload protection operates in hiccup mode and recovers automatically after the fault condition is removed.
Can this adaptor be used in demanding temperature environments?
It is rated for operation from -30°C to +70°C, which is a wide working temperature range for an external power adaptor. That makes it better suited to tougher ambient conditions than many basic consumer adaptors. Final suitability still depends on the end equipment and enclosure environment.
How efficient is the Mean Well NGE12I18-P1J?
This adaptor is specified to meet Energy Efficiency Level VI and has no-load power consumption below 0.075W. Those characteristics make it a strong fit for applications where standby power and energy performance matter. It is also designed with extremely low leakage current below 100uA.
What physical size and design advantages does this model offer?
The NGE12I18-P1J has a compact wall-mounted format with dimensions of 48 x 28 x 55 mm and an ultra-slim 28 mm profile. That makes it easier to use where space around wall outlets or mounted equipment is limited. It is also a Class II power unit, so it does not use an earth pin.
What approvals and warranty does this adaptor come with?
This model is listed with a broad set of safety approvals, including IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1, UL62368-1, and RCM AS/NZS 61558-1/-2-16, among others shown in the specification. That makes it relevant for buyers who need recognized compliance coverage across multiple markets. Mean Well also specifies a 3-year warranty for this adaptor.
