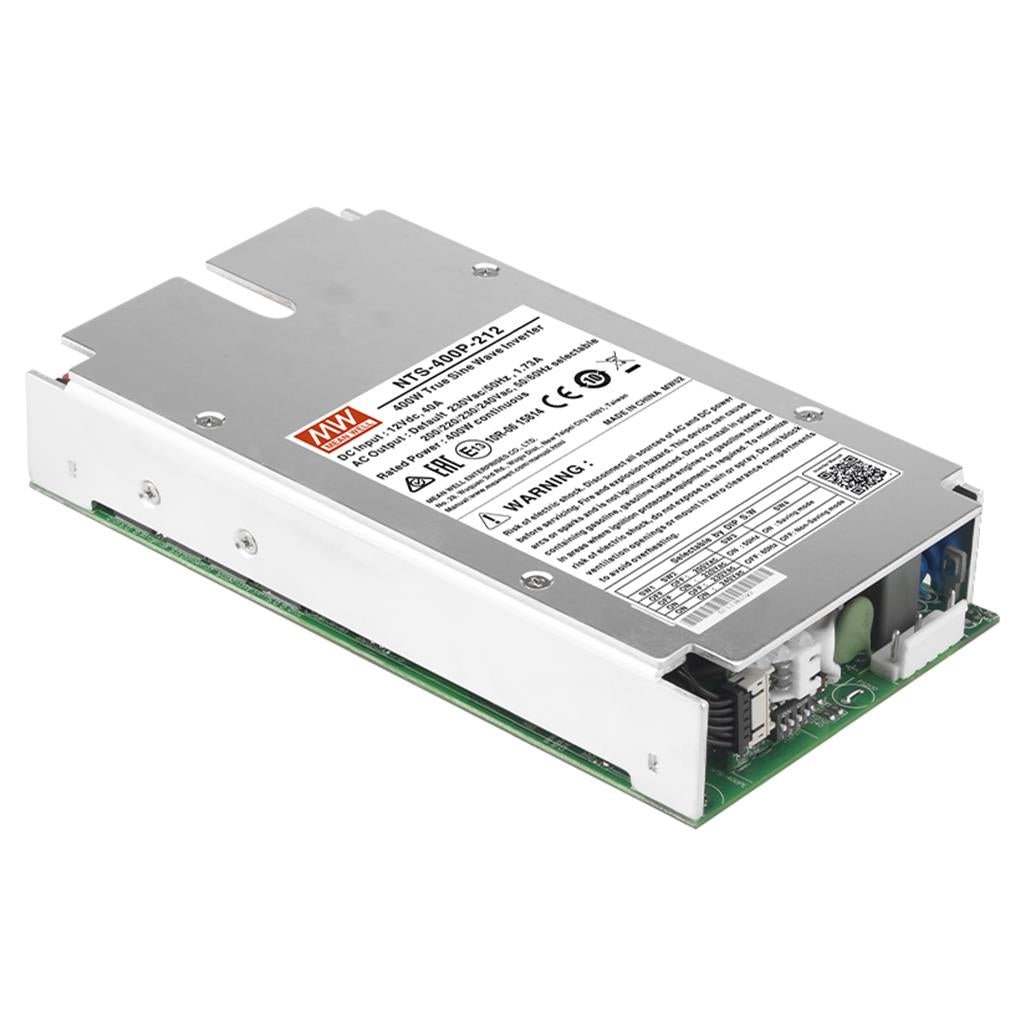

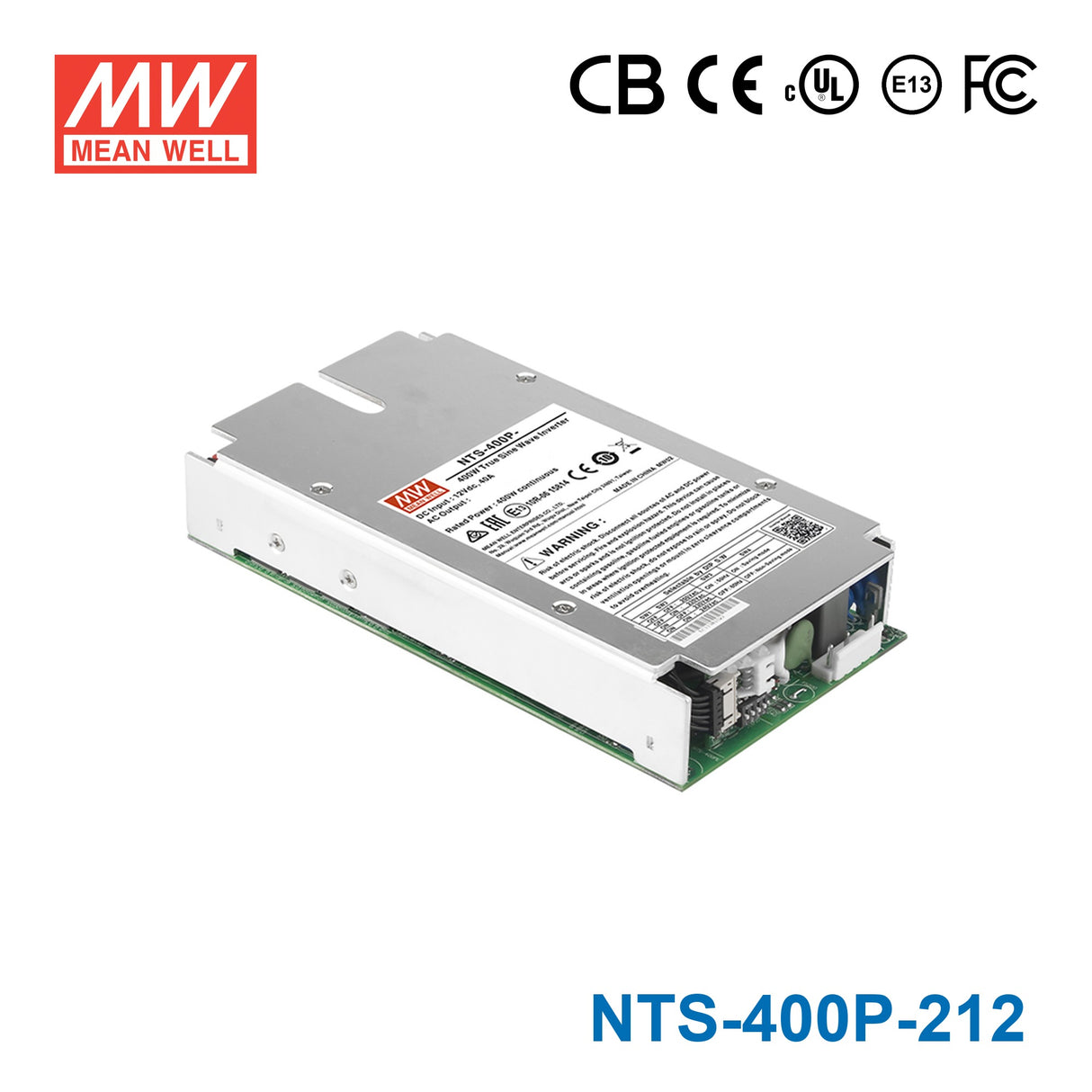

Mean Well NTS-400P-212 True Sine Wave DC-AC Inverter 400W 230V out 12V in
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTS-400P-212 True Sine Wave DC-AC Inverter 400W 230V out ...
The NTS-400P is a 400W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating400 Watt
-
Output Voltage230 Volt
-
Input Voltage10V~16.5V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7.32 in
-
Width3.96 in
-
Height1.26 in
-
Weight1.65 lb
::specification::
Frequently Asked Questions
What is the Mean Well NTS-400P-212 designed for?
The NTS-400P-212 is a 400W true sine wave DC-AC inverter that converts 12V DC input to 230V AC output. It is intended for applications that need clean AC power from a 12V battery-based power source. This makes it suitable for professional mobile, industrial, and backup power use where output quality matters.
Does this model provide true sine wave output?
Yes, the NTS-400P-212 provides a true sine wave output with total harmonic distortion below 3%. That cleaner waveform is important for equipment that is sensitive to power quality. Compared with modified sine wave inverters, it is better suited to loads that require stable AC output.
What input and output ratings does the NTS-400P-212 have?
This model is rated for 12V DC input and 230V AC output, with a 400W power rating. It also supports high surge power up to 800W for short-duration demand. The product description also notes 250W convection cooling and 400W with forced air operation.
Can the AC output voltage and frequency be selected on this inverter?
Yes, the NTS-400P series supports selectable AC output voltage and frequency by DIP switch. The listed AC voltage options include 100/110/115/120VAC and 200/220/230/240VAC. For this specific model, the nominal output is 230V AC.
Is the NTS-400P-212 compatible with different battery types?
Yes, this inverter is stated as suitable for both lead-acid and lithium-ion batteries. It also includes battery over-discharge protection through a low-voltage disconnect function. That makes it a practical option for systems using either traditional or modern battery chemistries.
What protection features are included in this inverter?
The NTS-400P-212 includes protection for short circuit, overload, and over voltage conditions. It also has battery over-discharge protection and an over-temperature shutdown behavior that requires re-powering to recover. These protections help safeguard both the inverter and connected equipment during abnormal operating conditions.
Can this inverter be used in demanding environmental conditions?
Yes, this model is built for a wide operating temperature range of -20°C to +70°C. It also features conformal coating, which can help in harsher environments where added board protection is valuable. Buyers needing compact hardware should also note its 186 x 100.5 x 32 mm size and 0.75 kg weight.
Does the NTS-400P-212 support remote control or status monitoring?
Yes, the product supports remote power on-off control. It also supports Tx/Rx communication for monitoring inverter status. That makes it useful in systems where centralized status visibility or remote operation is important.
