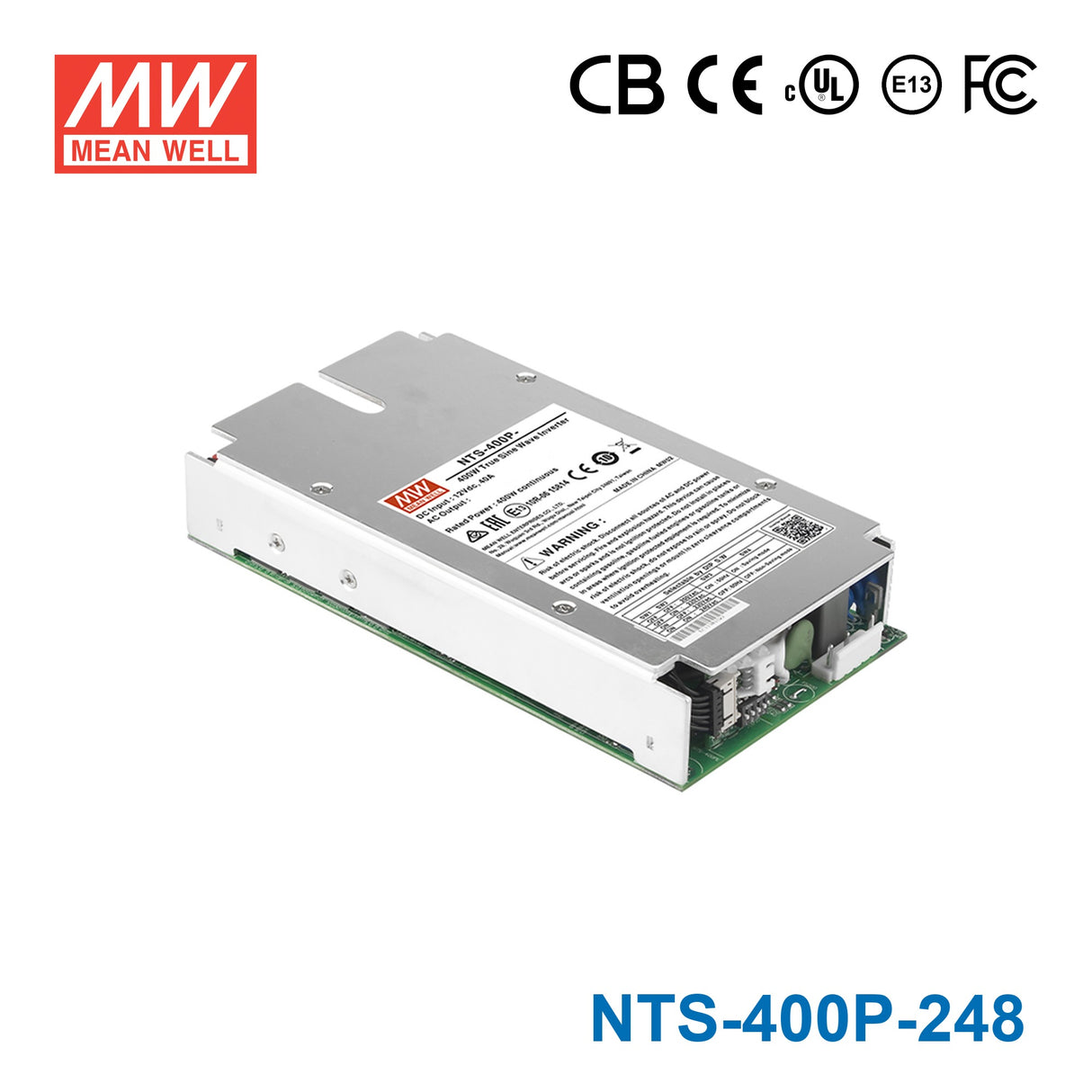

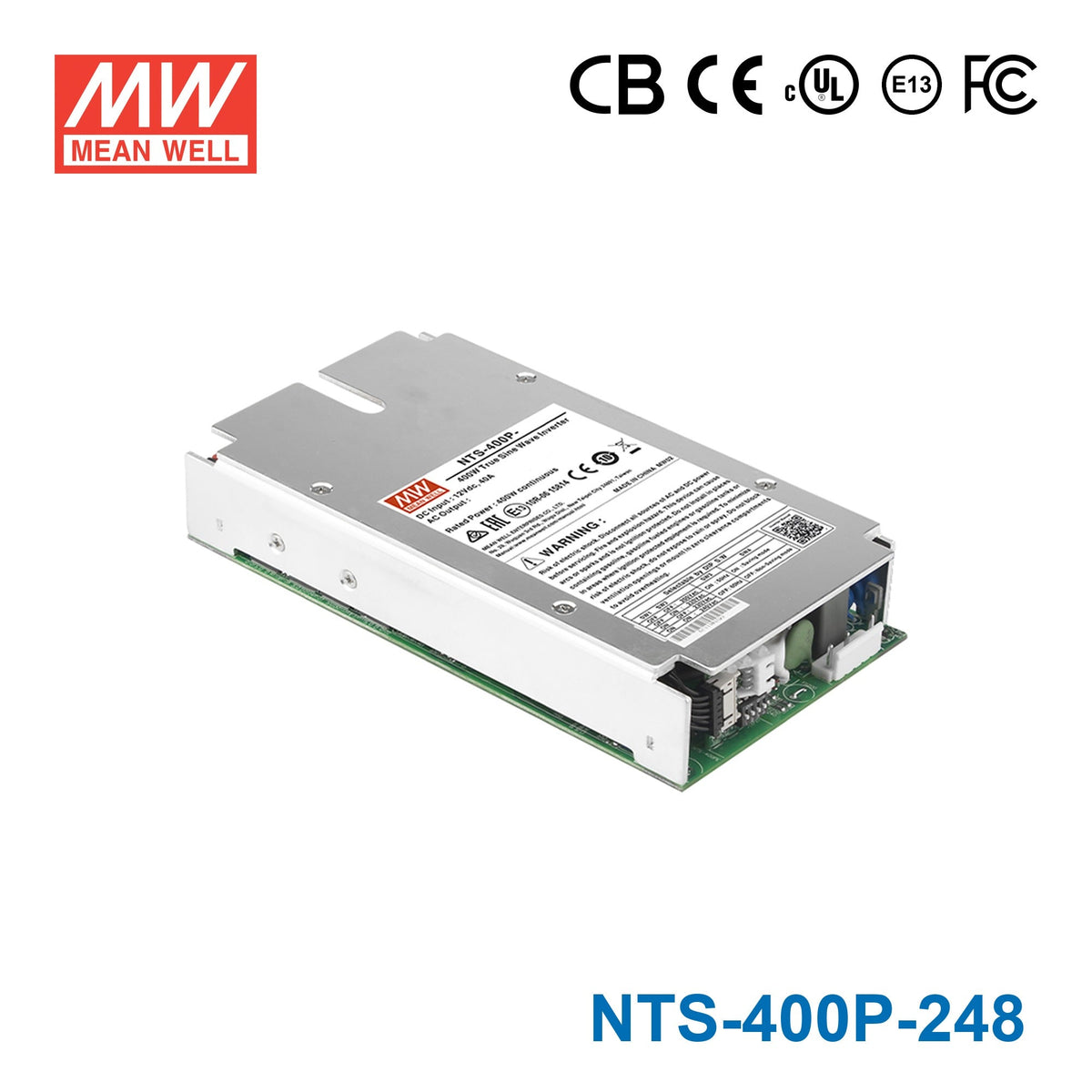

Mean Well NTS-400P-248 True Sine Wave DC-AC Inverter 400W 230V out 48V in
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTS-400P-248 True Sine Wave DC-AC Inverter 400W 230V out ...
The NTS-400P is a 400W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating400 Watt
-
Output Voltage230 Volt
-
Input Voltage40V~66V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7.32 in
-
Width3.96 in
-
Height1.26 in
-
Weight1.65 lb
::specification::
Frequently Asked Questions
What is the Mean Well NTS-400P-248 used for?
The NTS-400P-248 is a 400W true sine wave DC-AC inverter designed to convert 48V DC input power into 230V AC output. It is suited to professional and industrial applications where clean AC power is needed from a DC battery-based system. Its true sine wave output makes it a better fit for sensitive electronics than modified sine wave alternatives.
Does this inverter provide true sine wave output?
Yes. The NTS-400P-248 provides a true sine wave AC output with total harmonic distortion below 3%. That makes it appropriate for equipment that requires stable, clean AC power quality.
What input and output voltages does this model support?
This model is designed for 48V DC input and delivers 230V AC output. The wider AC output voltage range on the series is selectable by DIP switch, including 200/220/230/240VAC and 100/110/115/120VAC options, as listed in the specification. For this specific SKU, the named configuration is 230V out from 48V in.
How much power can the NTS-400P-248 deliver?
The rated output power is 400W with forced air cooling, and the unit also supports surge power up to 800W. The product description also notes 250W convection operation. This gives buyers flexibility depending on the operating conditions and airflow available around the inverter.
Is the NTS-400P-248 compatible with lead-acid and lithium-ion battery systems?
Yes. Mean Well specifies that this inverter is suitable for both lead-acid and li-ion batteries. It also includes battery over-discharge protection with low voltage disconnect, which helps protect the connected battery system.
Can this inverter be used in demanding environmental conditions?
It is designed for a wide operating temperature range of -20°C to +70°C, with derating referenced by the manufacturer. The unit also includes conformal coating, which adds protection for use in more challenging environments. Buyers should still confirm that their full application conditions align with the product's published limits.
What protections and monitoring features are included?
The NTS-400P-248 includes protection for short circuit, overload, and over voltage, plus low voltage disconnect for battery over-discharge protection. Mean Well also specifies support for Tx/Rx status monitoring and remote power on-off control. These features make the unit more suitable for managed OEM and industrial power systems.
What are the physical size and warranty for this inverter?
The listed dimensions are 186 x 100.5 x 32 mm, and the product weight provided is 0.75 kg. Mean Well specifies a 3-year warranty for this model. Its compact form factor is useful where panel or enclosure space is limited.
