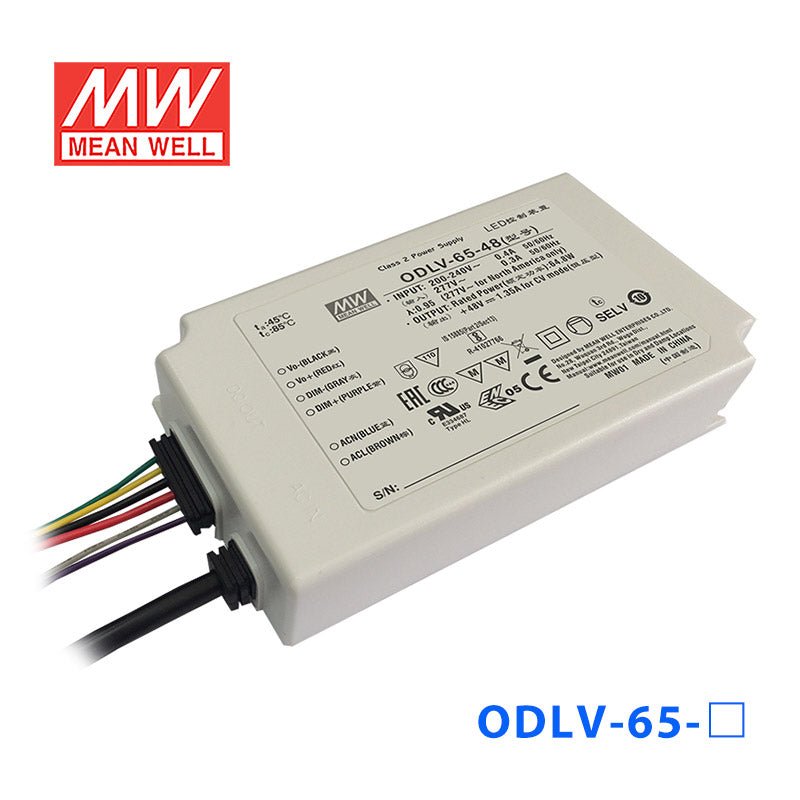

Mean Well ODLV-65A-12 Power Supply 65W 12V (Auxiliary DC output)

SKU:
ODLV-65A-12

$28.20 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Constant voltage PWM style output with frequency 1KHz
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W(Blank-Type)
IP67 rating for indoor or outdoor installations
Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output
3 years warranty

General Specification

AC input voltage range 180~295VAC
AC inrush current (Typ.) COLD START 30A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection Shut down O/P voltage, re-power on to recovery
Over current protection 105~115%
Setup time 500ms / 230VAC
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -20~+85ºC
Safety standards UL8750, ENEC EN61347-1, EN61347-2-13
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm) 121*77*28.5mm
Packing 24pcs/11Kg

Specifications

  • Brand
    Mean Well
  • Series
    ODLV Series
  • Power Rating
    50.4 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    4.2 Ampere
  • Input Voltage
    180V~295V
  • No of Output
    1
  • Dimming Control
    0-10V,10V PWM,Auxiliary DC Output
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~85°C
  • Warranty
    3 Year
  • Length
    4.76 in
  • Width
    3.03 in
  • Height
    1.12 in
  • Weight
    0.95 lb
