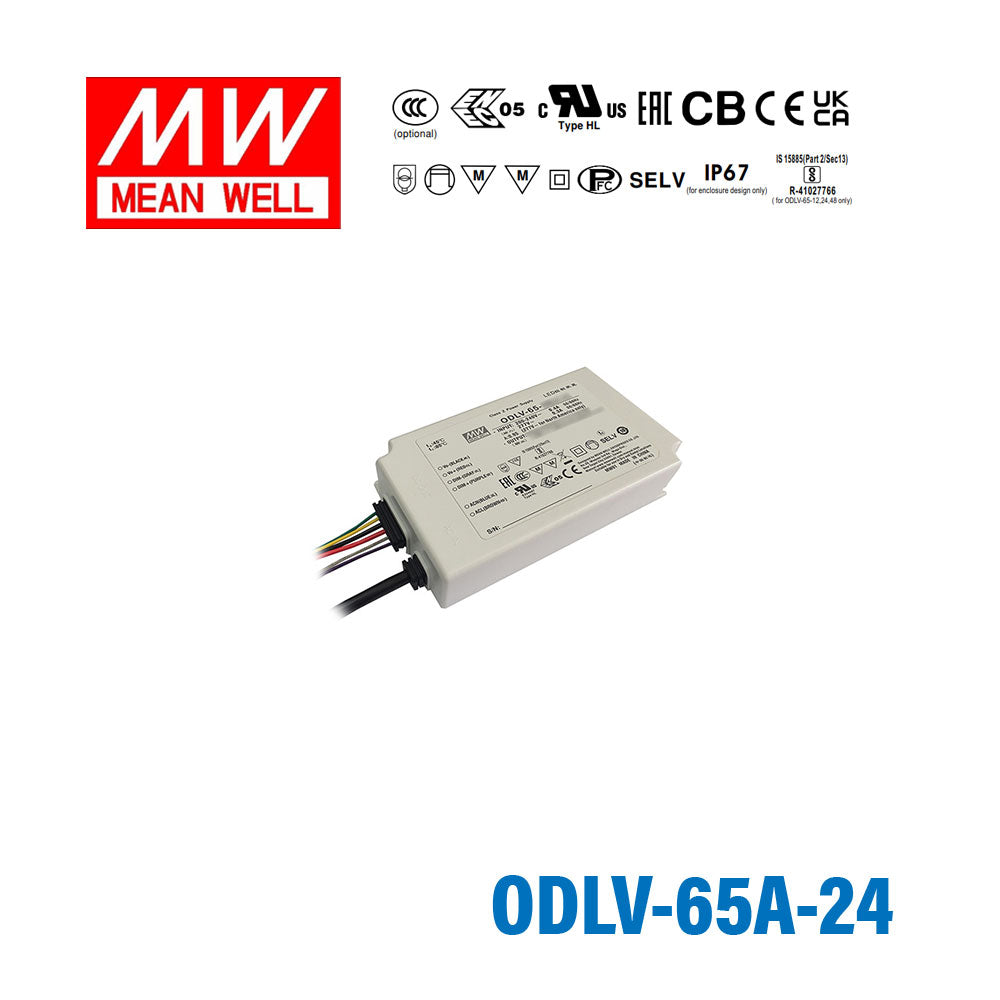

Mean Well ODLV-65A-24 Power Supply 65W 24V (Auxiliary DC output)
The ODLV-65A is a 65W Mean Well DIN rail power converter with a 121mm profile (input range: 180~295VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 121mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 180~295VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”) UL8750 BIS IS15885( for ODLV-65-12,24,48 only), EAC TP TC 004,IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesODLV Series
-
Power Rating57.6 Watt
-
Output Voltage24 Volt
-
Rated Current2.4 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Auxiliary DC Output
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.76 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.95 lb
::specification::
Frequently Asked Questions
Can I use the ODLV-65A-24 for 24V LED strip lighting on outdoor signs?
Yes, if the strip is 24V constant voltage and the total load does not exceed 57.6W. This driver delivers 24V at 2.4A and has an IP67 waterproof rating for wet or outdoor environments. Check the strip's rated power per meter before sizing the run.
Is this driver suitable for 24V cove, accent, or linear lighting in damp areas?
It can be used with 24V constant-voltage cove, accent, or linear lighting loads up to 57.6W. The IP67 enclosure supports wet-location use, and the operating temperature range is -20°C to +85°C. Match it only with fixtures designed for 24V constant voltage.
Can the ODLV-65A-24 power 24V LED ribbon for storefront or display lighting?
Yes, for 24V constant-voltage LED ribbon with a combined load at or below 57.6W. That makes it suitable for display accents, sign borders, and other 24V strip-based lighting where a waterproof driver is needed. Confirm the ribbon voltage and total wattage before use.
How do I calculate the maximum 24V LED strip length for this power supply?
Maximum strip length equals 57.6W divided by the strip's watts per meter. This model's output limit is 57.6W total at 24V and 2.4A. Check your strip rated power per meter and keep the full strip load within that 57.6W maximum.
Can this 24V driver be used outdoors year-round?
Its IP67 waterproof rating means it is intended for outdoor and wet-location use. The stated operating temperature range is -20°C to +85°C, so use should stay within those published limits. The lighting load connected to it should also be rated for the same conditions.
