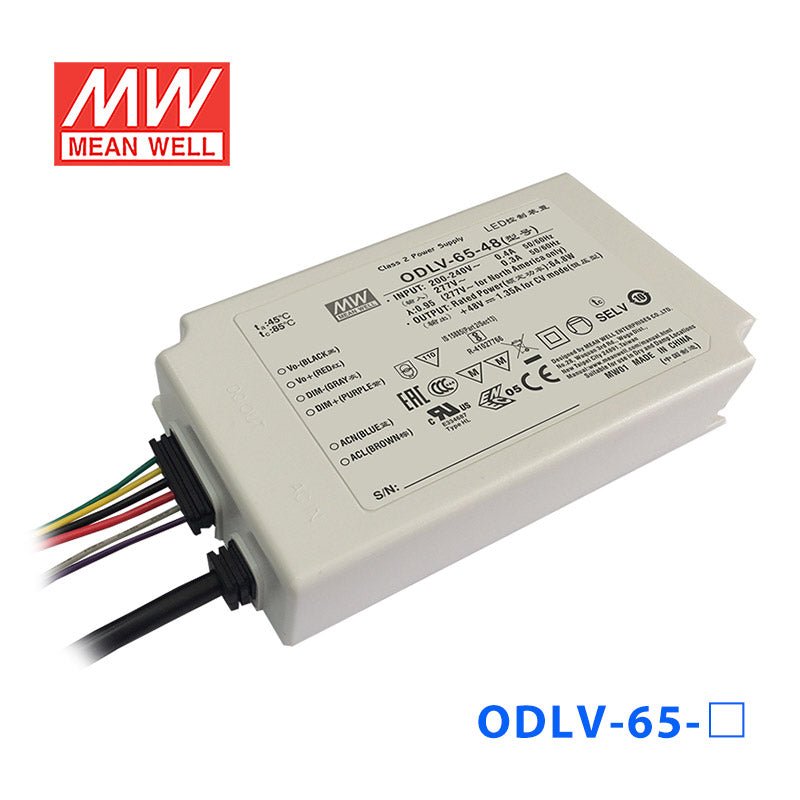

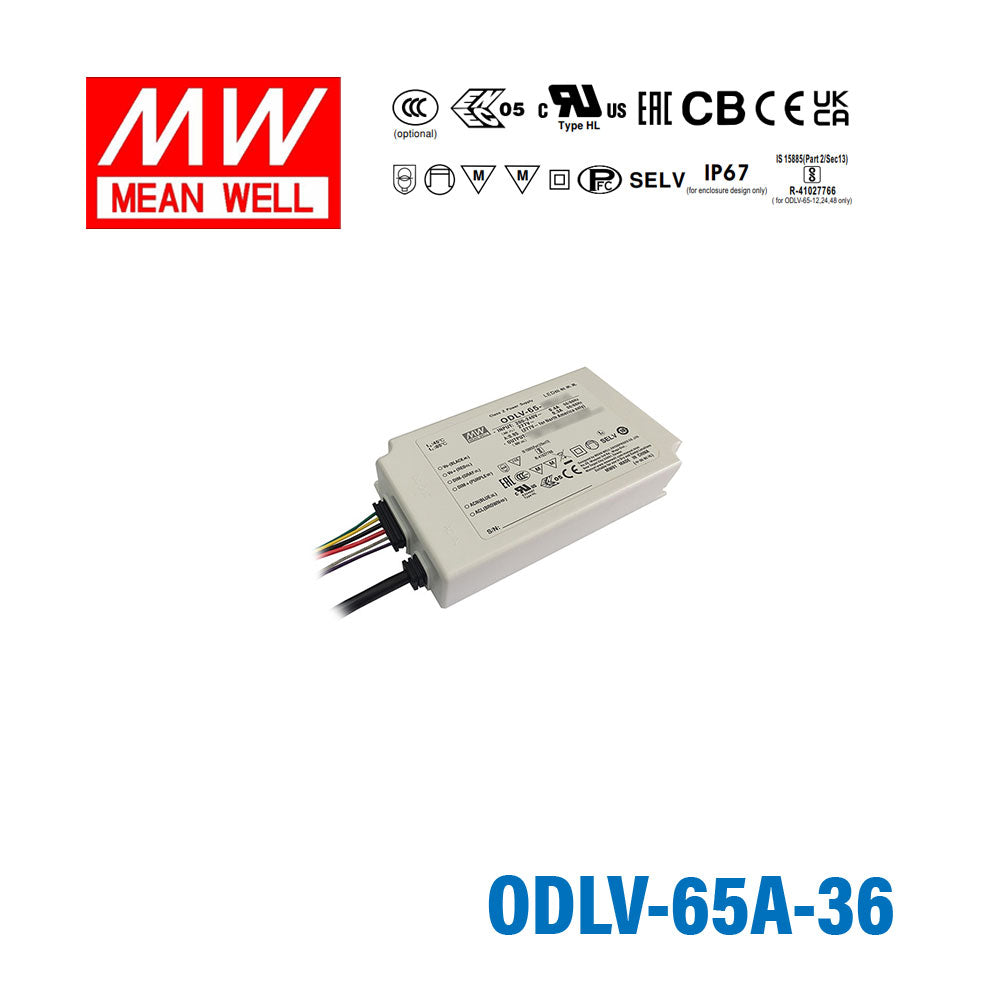

Mean Well ODLV-65A-36 Power Supply 65W 36V (Auxiliary DC output)
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 180~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 121*77*28.5mm |
| Packing | 24pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLV Series
-
Power Rating64.8 Watt
-
Output Voltage36 Volt
-
Rated Current1.8 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Auxiliary DC Output
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.76 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.95 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well ODLV-65A-36 for 36V LED strip lighting?
Yes, this model is a constant-voltage LED driver with a 36V DC output, so it fits 36V LED strip lighting that stays within 64.8W total load. It can supply up to 1.8A at 36V. For wet-area or outdoor strip projects, the IP67 waterproof rating supports use where weather resistance is needed.
Is the ODLV-65A-36 suitable for 36V LED signage or sign lighting?
Yes, it is suitable for 36V constant-voltage LED signage and sign lighting as long as the total load does not exceed 64.8W. The 36V output and IP67 waterproof rating make it a fit for sign applications where sealed outdoor-rated power is required. Check that the sign lighting is specified for 36V constant-voltage operation.
Can this driver power 36V architectural or accent lighting?
It can power 36V constant-voltage architectural or accent lighting up to 64.8W total. This unit provides 36V at up to 1.8A, so it is meant for 36V lighting products rather than constant-current fixtures. Its operating temperature range of -20°C to +85°C also supports use in demanding ambient conditions.
How much 36V LED strip can the ODLV-65A-36 run?
The driver can support up to 64.8W total, so the strip length depends on your strip's rated power per meter. The sizing math is 64.8W divided by your strip watts per meter equals the maximum approximate length. Also make sure the strip is a 36V constant-voltage type and that the total current stays within 1.8A.
Is the ODLV-65A-36 okay for outdoor or wet-location use?
Yes, this model is rated IP67, which indicates a waterproof enclosure suitable for wet and outdoor environments. It is also specified for operation from -20°C to +85°C. Final suitability still depends on the rest of the fixture or enclosure using the same level of environmental protection.
How does the ODLV-65A-36 compare with the other ODLV series models?
In the same series, the 45W range includes ODLV-45-12 36W 12V 3A, ODLV-45-24 45.12W 24V 1.88A, ODLV-45-36 45W 36V 1.25A, ODLV-45-48 45.12W 48V 0.94A, ODLV-45-60 45W 60V 0.75A, ODLV-45A-12 36W 12V 3A, ODLV-45A-24 45.12W 24V 1.88A, ODLV-45A-36 45W 36V 1.25A, ODLV-45A-48 45.12W 48V 0.94A, and ODLV-45A-60 45W 60V 0.75A. In the 65W range, the related models are ODLV-65-12 50.4W 12V 4.2A, ODLV-65-24 57.6W 24V 2.4A, ODLV-65-36 64.8W 36V 1.8A, ODLV-65-48 64.8W 48V 1.35A, ODLV-65-60 64.8W 60V 1.08A, ODLV-65A-12 50.4W 12V 4.2A, ODLV-65A-24 57.6W 24V 2.4A, ODLV-65A-48 64.8W 48V 1.35A, and ODLV-65A-60 64.8W 60V 1.08A. The ODLV-65A-36 itself is the 64.8W, 36V, 1.8A option in that group.
Other ODLV-65A Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ODLV-65A-60 Power Supply 65W 60V (Auxiliary DC output) | 64.8W | 60V | 1.08A | — | $28.20 | View |
| Mean Well ODLV-65A-48 Power Supply 65W 48V (Auxiliary DC output) | 64.8W | 48V | 1.35A | — | $28.20 | View |
| Mean Well ODLV-65A-24 Power Supply 65W 24V (Auxiliary DC output) | 57.6W | 24V | 2.4A | IP67 | $28.20 | View |
| Mean Well ODLV-65A-12 Power Supply 65W 12V (Auxiliary DC output) | 50.4W | 12V | 4.2A | IP67 | $28.20 | View |
