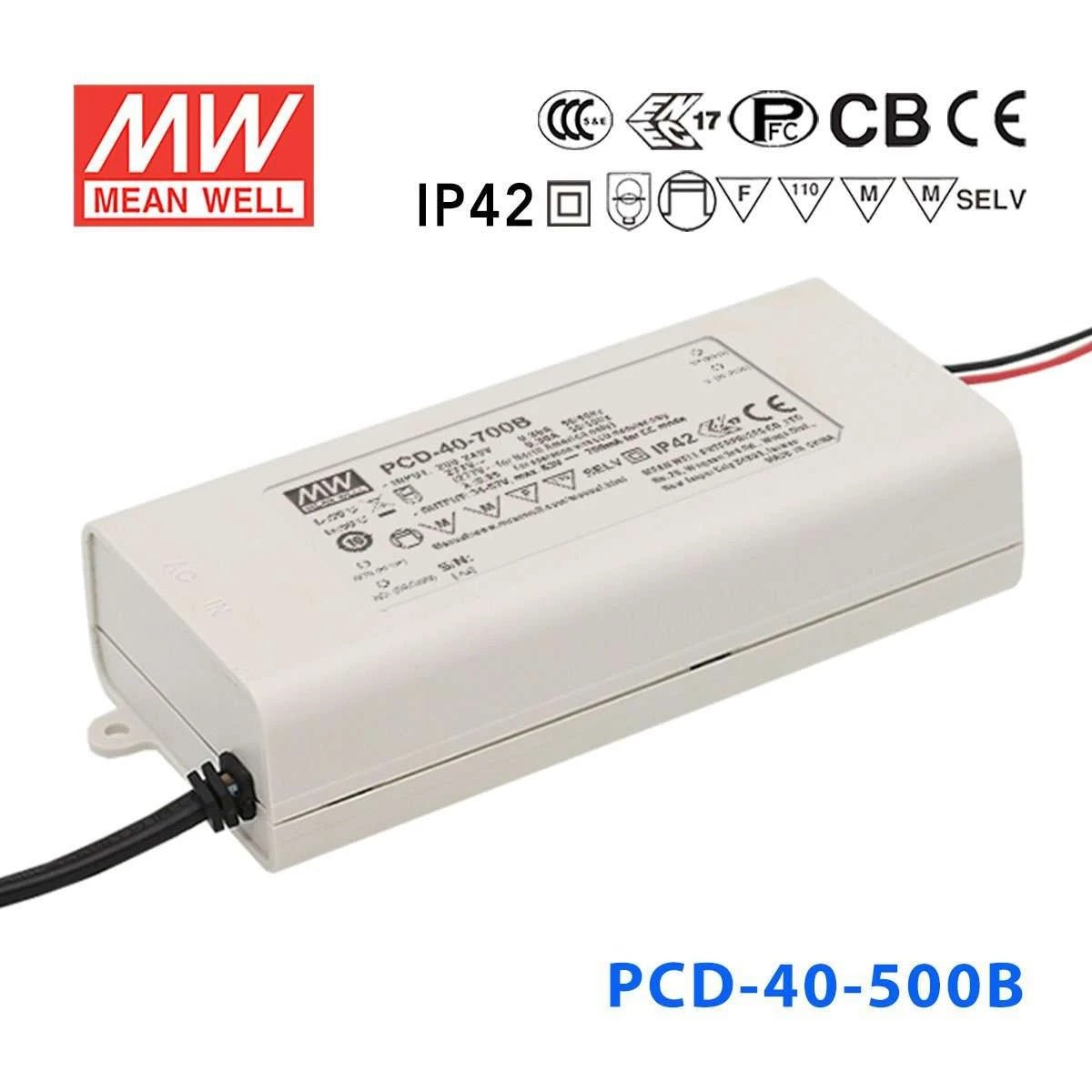

Mean Well PCD-40-500B Power Supply 40W 500mA

Yes, if the downlight requires 500mA constant current and its total LED forward voltage is within the 45-80V constant current range. That makes it better aligned with higher-voltage constant current loads than the lower-voltage 40W models. It is not intended for constant voltage fixtures.

It can be suitable for signage LED module assemblies when the complete load is rated for 500mA constant current and falls within 45V to 80V. This matters because many signage products use constant voltage supplies instead, and this driver is not that type. Its rated output power is 40W.

Yes, the PCD-40-500B is designed for 500mA constant current loads across 45-80V, so it supports a higher forward-voltage window than 17-29V or 13-23V models. That makes it relevant for small arrays built as longer constant current strings. The array still needs to remain within the 40W output rating.

Confirm that the LEDs require 500mA constant current and that their total forward voltage stays within the 45-80V constant current range. The number of LEDs depends on each LED's forward voltage, so the correct check is voltage total rather than a specific LED count. If the load expects constant voltage output, this driver should not be used.

This driver has an IP42 plastic casing, so it is intended for environments where that protection level is sufficient. It is not described as a sealed high-IP outdoor driver. The specified operating temperature range is -30°C to +50°C.

Among the listed siblings, PCD-40-500B is 500mA with a 45-80V range and 40W, while PCD-40-350B is 350mA with 70-108V and 37.8W, PCD-40-700B is 700mA with 34-57V and 39.9W, PCD-40-1050B is 1050mA with 22-38V and 39.9W, PCD-40-1400B is 1400mA with 17-29V and 40.6W, and PCD-40-1750B is 1750mA with 13-23V and 40.25W. The higher-power related option at the same current family is PCD-60-500B at 500mA, 70-108V, and 54W. This places the PCD-40-500B between the 350mA and 700mA 40W models in current, with a mid-to-high voltage range.
