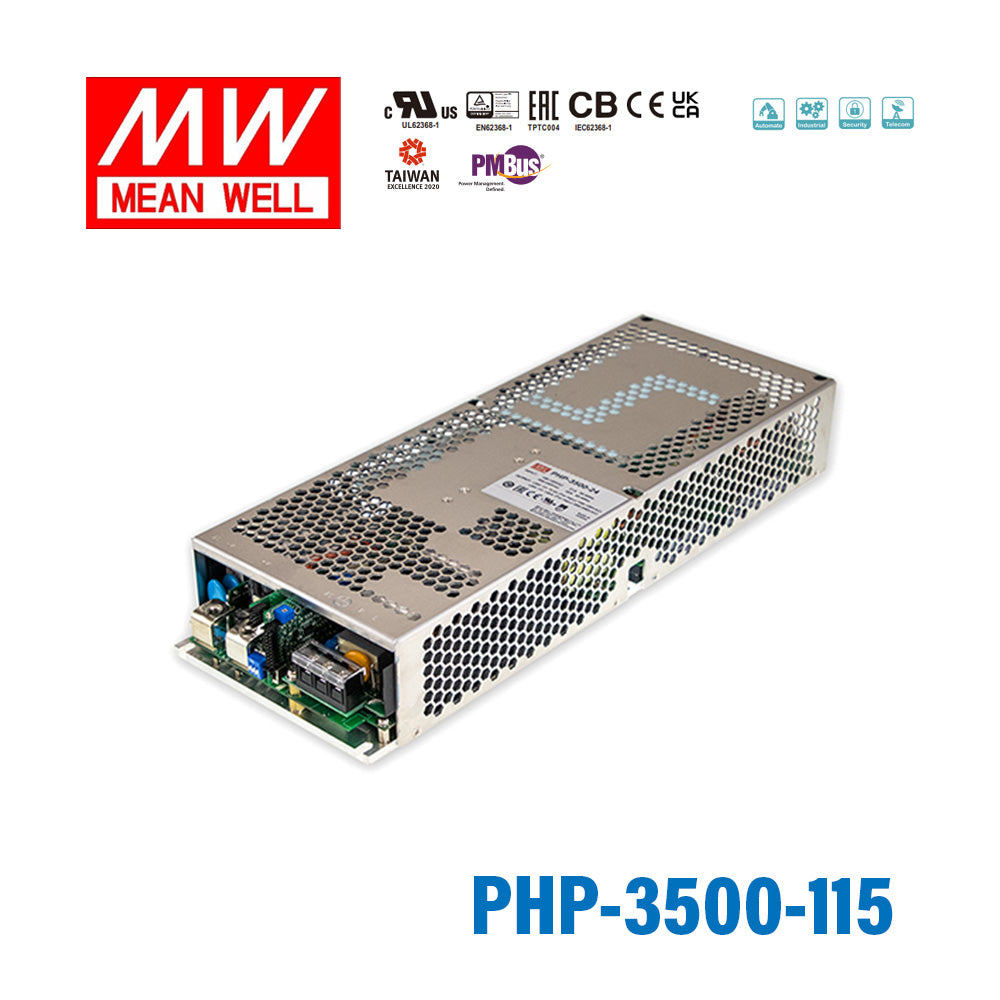

Mean Well PHP-3500-115 Power Supply 3500W 115V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PHP-3500-115 Power Supply 3500W 115V
Description
Description
Features:⦁ High voltage output (115/230/380V DC)⦁ Slim and Low profile (60mm)⦁ Fanless design with water or conduction cooling⦁ Active PFC design and efficiency up to 96%⦁ Built-in PMBus communication protocol, CANbus optional⦁ Output voltage and constant current level programmable⦁ Protections: Short circuit / Overload / Over voltage / Over temperature⦁ Built-in remote ON/OFF control and DC-OK active signal⦁ Optional water-cooling plate for quick installation⦁ OVC III operating altitude up to 2000 meter⦁ LED indicator for power on⦁ 5 years warrantyGeneral SpecificationAC Input Voltage Range90 - 264VAC 127 - 370VDCAC Inrush Current (max.)Cold start 80A/230VAC 40A/115VACOverload Protection105 - 115% rated currentProtection type: Constant current limiting, shut down O/P voltage after 5 sec.After O/P voltage falls, re-power on to recoverShort CircuitProtection type: Constant current limiting, unit will shut down after 5 sec, re-power on to recoverOver-voltage Protection(168 - 200V) (273 - 320) (413 - 460)Protection type: Shut down O/P voltage,re-power on to recoverWithstand VoltageI/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDCWorking Temperature-30 - +70℃ (Refer to “Derating Curve")Safety StandardsUL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved ; design refers to BS EN/EN61558-1, BS EN/EN60335-1Dimension (LxWxH)380x141.4x60mm
Specifications
Specifications
-
BrandMean Well
-
SeriesPHP Series
-
Power Rating3500 Watt
-
Output Voltage115 Volt
-
Rated Current26.3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length14.96 in
-
Width5.57 in
-
Height2.36 in
-
Weight8.97 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well PHP-3500-115 designed for?
The PHP-3500-115 is a high-power enclosed AC-DC power supply intended for demanding industrial and OEM applications that need a 115V DC output. With a 3500W power rating and programmable output/current features, it fits systems where high output power and control flexibility matter.
What are the main electrical ratings of the PHP-3500-115?
This model is rated for 3500W with a nominal 115V DC output and 26.3A rated current. It is part of the PHP series with high-voltage output capability, and the product description also notes support for 115/230/380V DC variants within the series.
How is the PHP-3500-115 cooled?
The PHP-3500-115 uses a fanless design and is intended for water cooling or conduction cooling rather than internal fan cooling. That makes it a good fit for applications where low-profile thermal management and reduced airborne dust intake are important.
What makes the PHP-3500-115 different from a standard enclosed power supply?
This model stands out for its very high 3500W output, high-voltage 115V DC rating, slim 60mm low-profile housing, and fanless thermal design. It also adds built-in PMBus communication, programmable output settings, and an optional CANbus capability, which are not typical on basic enclosed power supplies.
Does the PHP-3500-115 support remote monitoring or control?
Yes. The product includes built-in PMBus communication, with CANbus available as an option, and it also provides remote ON/OFF control plus a DC-OK active signal. Those features make it suitable for systems that need status feedback and centralized power management.
What protection features are built into the PHP-3500-115?
The PHP-3500-115 includes protection for short circuit, overload, over voltage, and over temperature conditions. These built-in protections help support use in high-power equipment where fault handling and system reliability are important.
What operating temperature range is specified for the PHP-3500-115?
This model is specified for operation from -30°C to 70°C. That wide temperature range supports use in demanding industrial environments, provided the overall system design accounts for the unit's cooling method and operating conditions.
Is the PHP-3500-115 suitable when low-profile packaging is important?
Yes. The PHP-3500-115 is described as slim and low profile, with a 60mm height, which helps when space is constrained in larger power systems. Its 4.07 kg weight and enclosed form factor also indicate it is built for substantial high-power installations rather than compact consumer devices.
Other PHP-3500 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PHP-3500-380 Power Supply 3500W 380V | 3500W | 380V | 10.5A | Indoor | $951.82 | View |
| Mean Well PHP-3500-230 Power Supply 3500W 230V | 3500W | 230V | 16.1A | Indoor | $951.82 | View |
| Mean Well PHP-3500-48 power supply 3500W 48V 73A | 3504W | 48V | 73A | Indoor | $1,234.28 | View |
| Mean Well PHP-3500-24 power supply 3500W 24V 145A | 3480W | 24V | 145A | Indoor | $1,234.28 | View |
