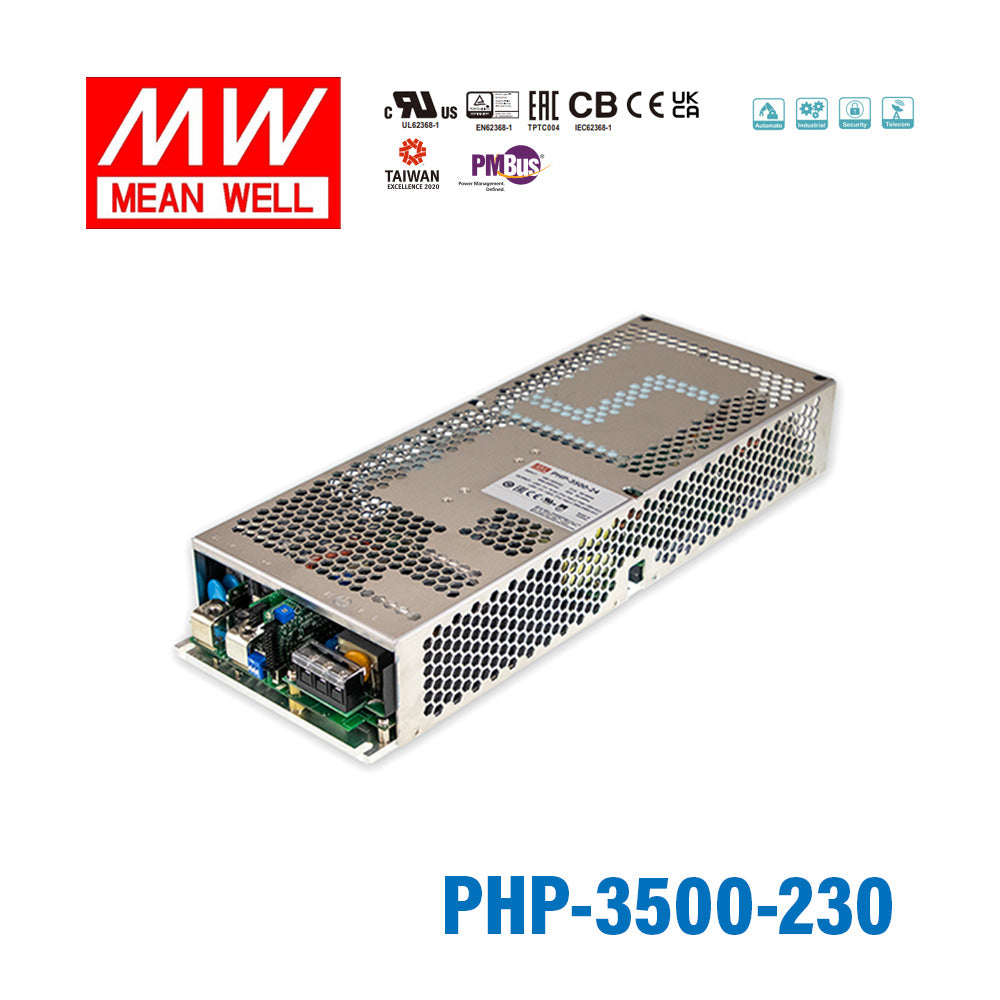

Mean Well PHP-3500-230 Power Supply 3500W 230V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PHP-3500-230 Power Supply 3500W 230V
Description
Description
Features:⦁ High voltage output (115/230/380V DC)⦁ Slim and Low profile (60mm)⦁ Fanless design with water or conduction cooling⦁ Active PFC design and efficiency up to 96%⦁ Built-in PMBus communication protocol, CANbus optional⦁ Output voltage and constant current level programmable⦁ Protections: Short circuit / Overload / Over voltage / Over temperature⦁ Built-in remote ON/OFF control and DC-OK active signal⦁ Optional water-cooling plate for quick installation⦁ OVC III operating altitude up to 2000 meter⦁ LED indicator for power on⦁ 5 years warrantyGeneral SpecificationAC Input Voltage Range90 - 264VAC 127 - 370VDCAC Inrush Current (max.)Cold start 80A/230VAC 40A/115VACOverload Protection105 - 115% rated currentProtection type: Constant current limiting, shut down O/P voltage after 5 sec.After O/P voltage falls, re-power on to recoverShort CircuitProtection type: Constant current limiting, unit will shut down after 5 sec, re-power on to recoverOver-voltage Protection(168 - 200V) (273 - 320) (413 - 460)Protection type: Shut down O/P voltage,re-power on to recoverWithstand VoltageI/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDCWorking Temperature-30 - +70℃ (Refer to “Derating Curve")Safety StandardsUL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved ; design refers to BS EN/EN61558-1, BS EN/EN60335-1Dimension (LxWxH)380x141.4x60mm
Specifications
Specifications
-
BrandMean Well
-
SeriesPHP Series
-
Power Rating3500 Watt
-
Output Voltage230 Volt
-
Rated Current16.1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length14.96 in
-
Width5.57 in
-
Height2.36 in
-
Weight8.97 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well PHP-3500-230 designed for?
The PHP-3500-230 is a 3500W enclosed AC/DC power supply intended for high-power industrial and B2B applications. Its high-voltage 230V DC output makes it relevant for systems that require a substantial DC power source in a compact enclosed format.
What are the main output specifications of the PHP-3500-230?
This model is rated for 3500W output power with a 230V DC output. Its rated current is 16.1A, which aligns with applications needing high power at high DC voltage from a single enclosed supply.
How compact is the Mean Well PHP-3500-230 for its power level?
A key differentiator of the PHP-3500-230 is its slim, low-profile 60mm design despite its 3500W power rating. That makes it more practical for space-constrained equipment designs where high output power and reduced height both matter.
Is the PHP-3500-230 suitable for demanding temperature conditions?
The specified operating temperature range is -30°C to 70°C, which supports use in challenging industrial environments. Buyers should still confirm that the surrounding system design keeps the unit within its rated environmental limits.
What control and monitoring features are available on the PHP-3500-230?
This model includes built-in PMBus communication support, with CANbus available as an option. It also supports programmable output voltage and constant current level, along with remote ON/OFF control and a DC-OK active signal for system-level monitoring.
What protection and reliability features does the PHP-3500-230 include?
The PHP-3500-230 includes protection for short circuit, overload, over voltage, and over temperature conditions. It also carries a 5-year warranty, which is an important consideration for long-life industrial deployments.
Other PHP-3500 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PHP-3500-380 Power Supply 3500W 380V | 3500W | 380V | 10.5A | Indoor | $951.82 | View |
| Mean Well PHP-3500-115 Power Supply 3500W 115V | 3500W | 115V | 26.3A | Indoor | $951.82 | View |
| Mean Well PHP-3500-48 power supply 3500W 48V 73A | 3504W | 48V | 73A | Indoor | $1,234.28 | View |
| Mean Well PHP-3500-24 power supply 3500W 24V 145A | 3480W | 24V | 145A | Indoor | $1,234.28 | View |
