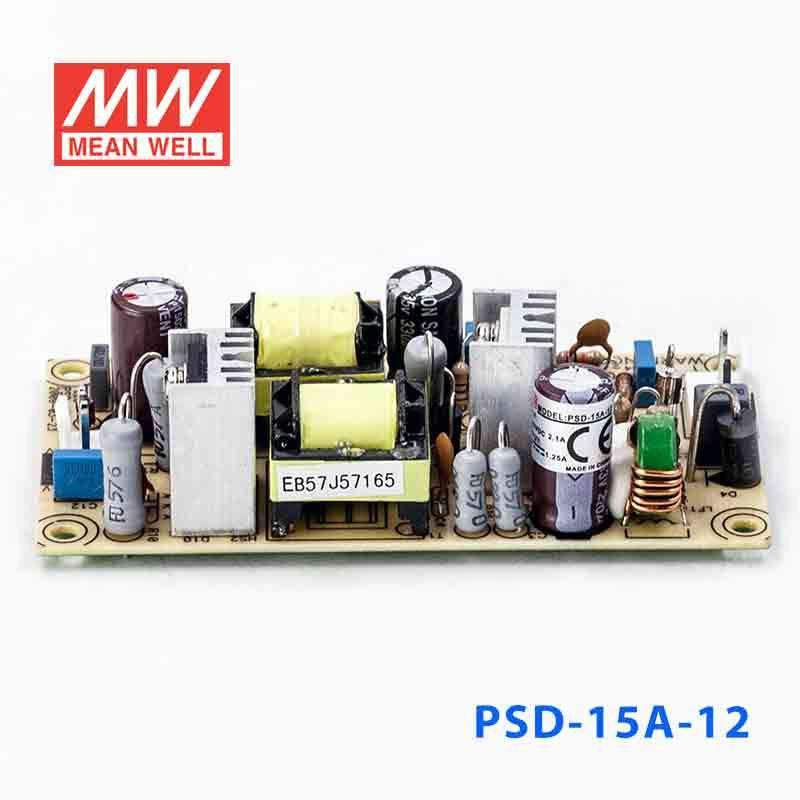

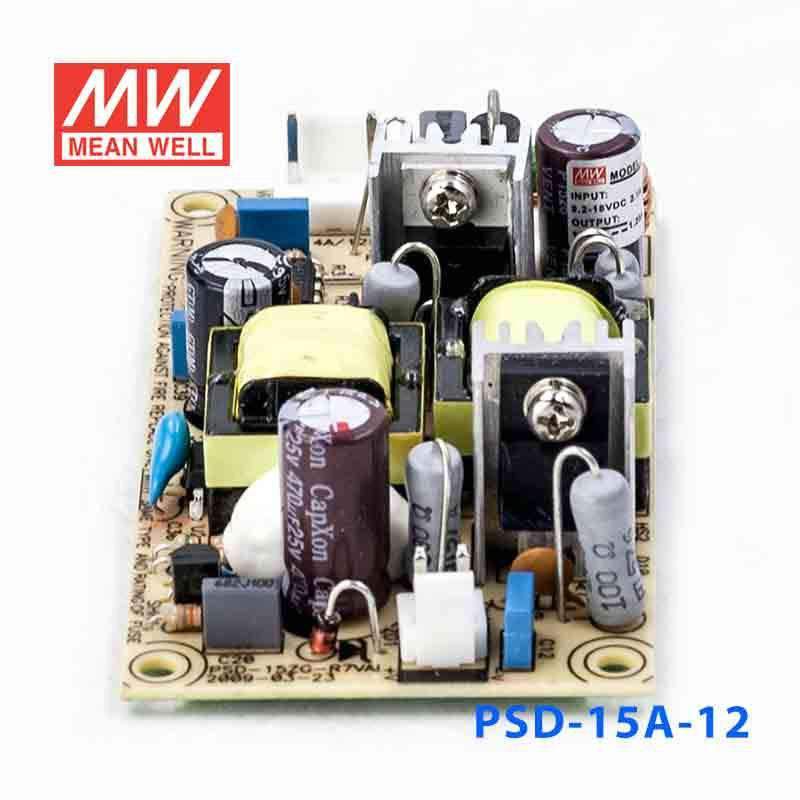

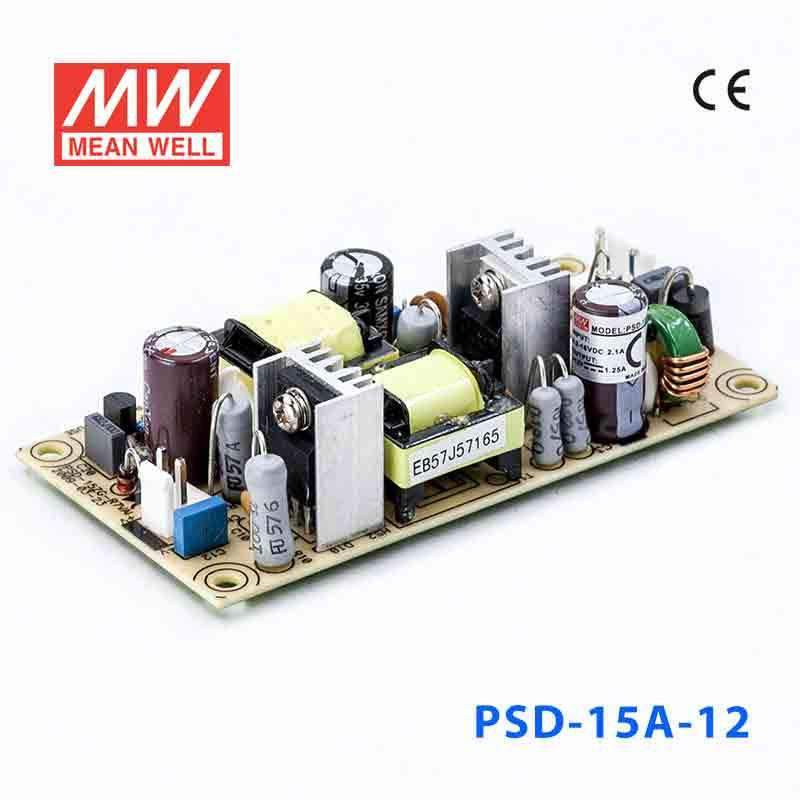

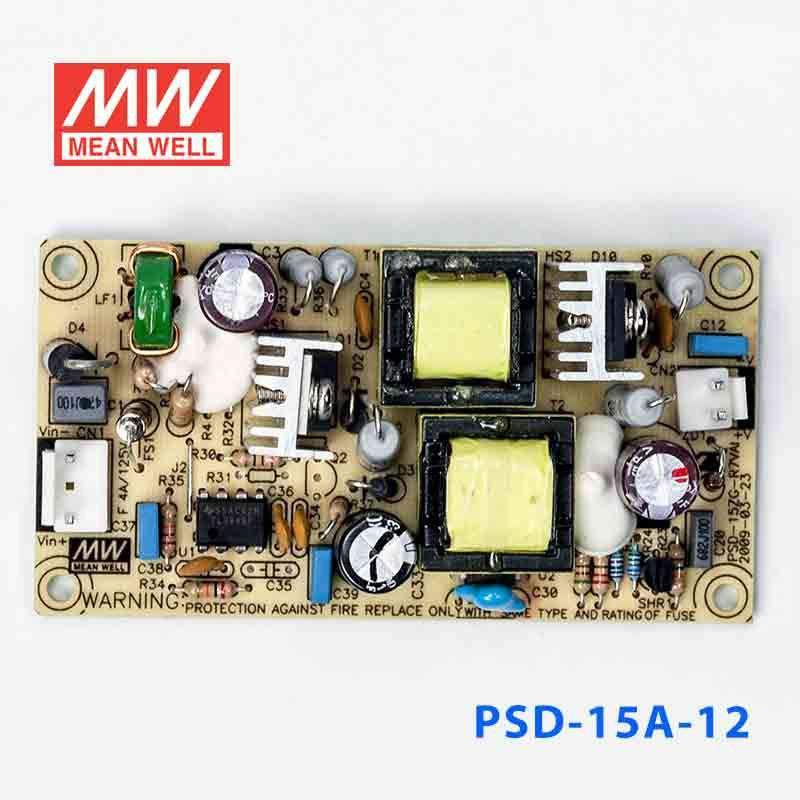

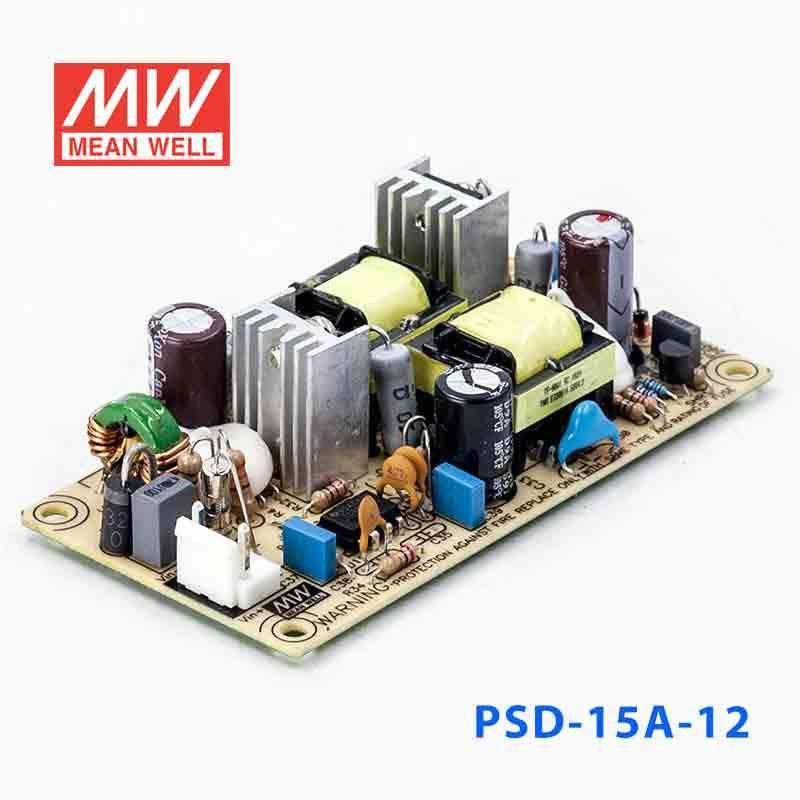

Mean Well PSD-15A-12 DC-DC Converter - 15W - 9.2~18V in 12V out
Description
Description
The PSD-15A is a 15W Mean Well power converter.
Key Features
- ✓ 2KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage9.2V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length3.7 in
-
Width1.93 in
-
Height0.98 in
-
Weight0.18 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the PSD-15A-12 for a 12V industrial sensor or control module?
Yes, it is a constant-voltage 12V converter rated for 15W with up to 1.25A output. That makes it suitable for 12V industrial sensors, alarm modules, and control accessories that stay within the unit's rated 15W output.
Is the PSD-15A-12 a fit for embedded 12V electronics in a compact machine enclosure?
It can be a good fit for embedded 12V electronics when the load requires constant 12V power and remains within 1.25A. Its 94.0 x 49.0 x 25.0 mm size and 0.081 kg weight also suit space-constrained control housings.
Can this converter power a small 12V automation accessory from a 9-18VAC source?
Yes, this model is designed for a 9-18VAC input range and provides a regulated 12V output. It is appropriate for small 12V automation accessories when total demand stays within 15W.
Is the PSD-15A-12 suitable for outdoor or harsh-environment use?
The provided specs list an operating temperature of -10°C to +60°C, but no IP rating is given. That means the temperature range is defined, but outdoor or washdown suitability is not stated and would require additional protection if the environment demands it.
How does the PSD-15A-12 compare with other Mean Well PSD series options?
Within the listed PSD family, output choices include 5W 5V 1A models, 15W 5V 3A models, 15W 12V 1.25A models, 14.4W 24V 666A models, 25W 5V 5A models, 30W 12V 2.5A models, 30W 24V 1.25A models, 30W 5V 6A models, 45W 12V 3.75A models, 45W 24V 1.88A models, and 45W 5V 9A models. The PSD-15A-12 specifically sits in the 15W, 12V, 1.25A group.
