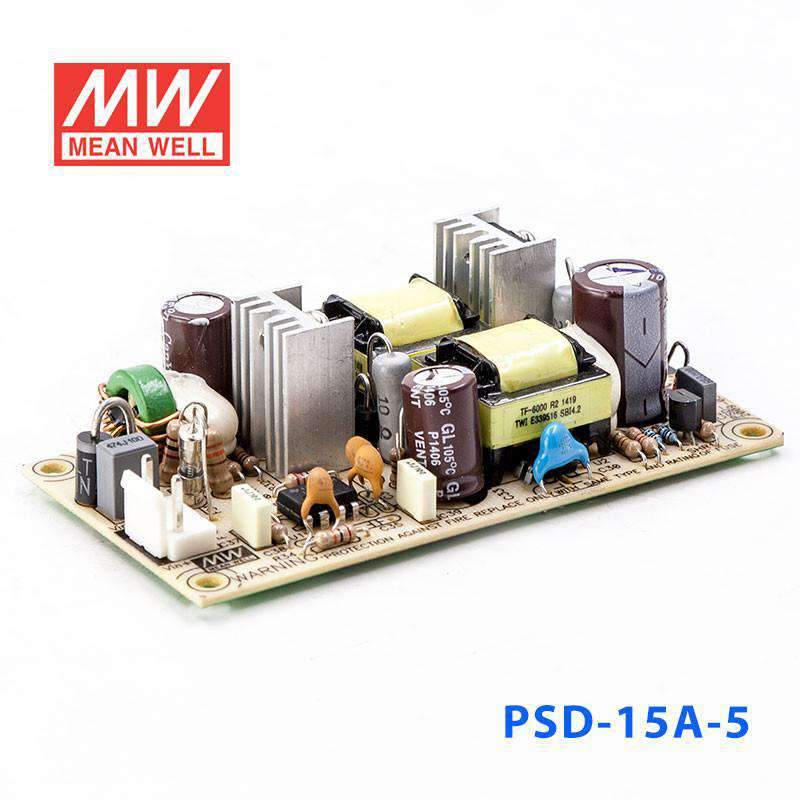

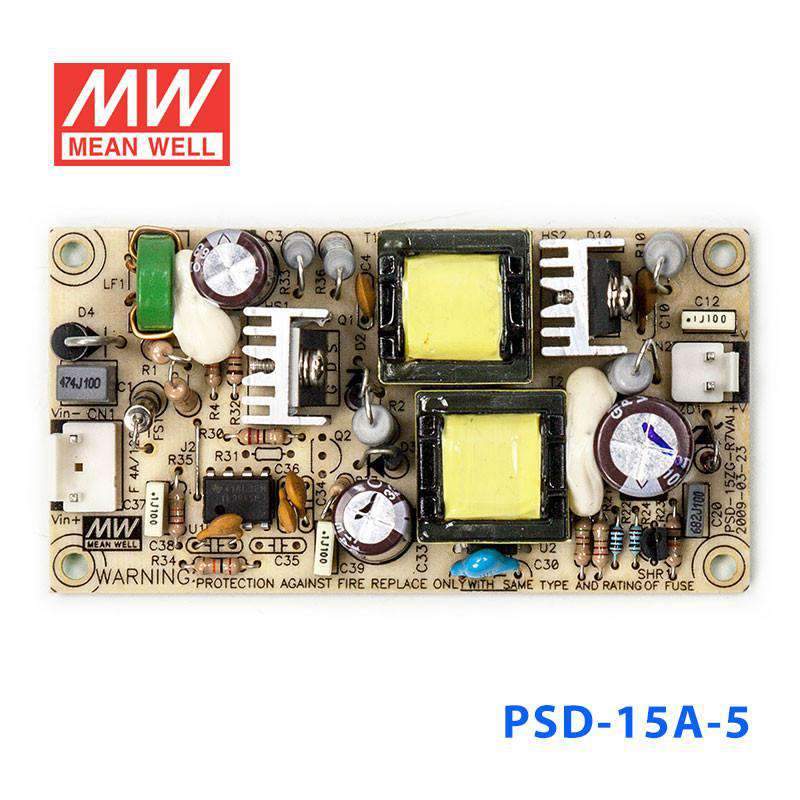

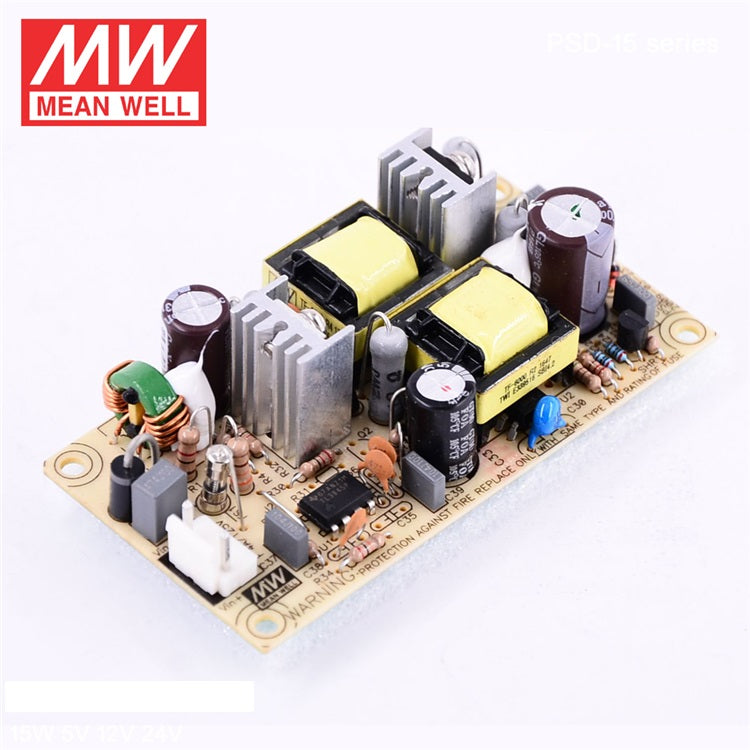

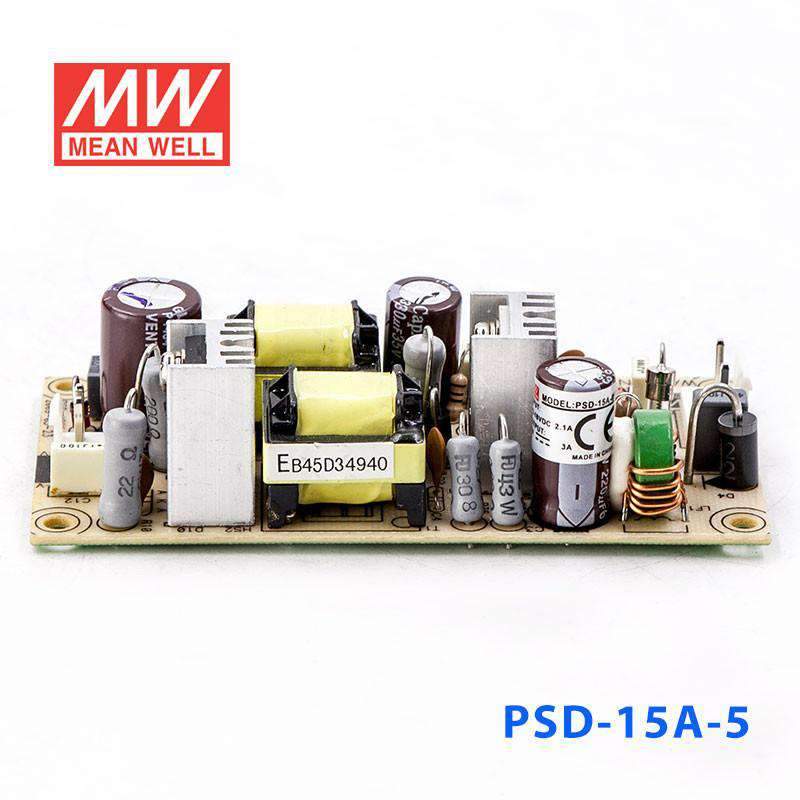

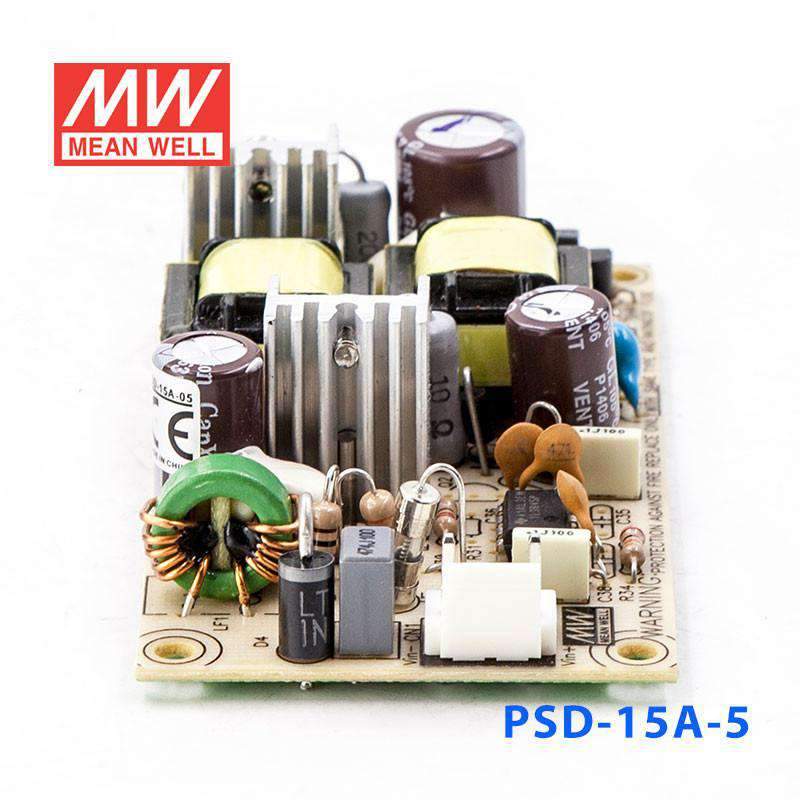

Mean Well PSD-15A-5 Switching Power Supply 15W 5V
Description
Description
The PSD-15A is a 15W Mean Well power converter.
Key Features
- ✓ 2KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage9.2V~72V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length3.7 in
-
Width1.93 in
-
Height0.98 in
-
Weight0.18 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the PSD-15A-5 to power 5V embedded controllers or logic boards?
Yes, it provides constant 5V output at up to 3A with a 15W rating. That fits many embedded controllers, logic boards, and industrial electronics that need regulated 5V power within those limits.
Is the PSD-15A-5 suitable for small automation electronics that run on 5V?
It is a practical choice for small 5V automation electronics when the total load stays within 15W and 3A. The constant-voltage design is appropriate for equipment that expects a regulated 5V rail.
Can this converter be used where the input source varies widely?
This model is listed with a 9-72VAC input range, which is broader than the other units in this group. That can help in systems where the available source falls anywhere within that stated range while the load still needs 5V output.
Is the PSD-15A-5 rated for outdoor environments?
Its operating temperature is specified from -10°C to +60°C, but no IP rating is provided in the supplied specs. That means temperature capability is stated, while outdoor or water-exposed suitability is not.
How does the PSD-15A-5 compare to other PSD series output classes?
Across the listed siblings, the PSD family includes 5W 5V 1A models, 15W 5V 3A models, 15W 12V 1.25A models, 14.4W 24V 666A models, 25W 5V 5A models, 30W 12V 2.5A models, 30W 24V 1.25A models, 30W 5V 6A models, 45W 12V 3.75A models, 45W 24V 1.88A models, and 45W 5V 9A models. The PSD-15A-5 is in the 15W, 5V, 3A class.
Other PSD-15A Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PSD-15A-24 DC-DC Converter - 14.4W - 9.2~18V in 24V out | 14.4W | 24V | 0.66A | Indoor | $10.39 | View |
| Mean Well PSD-15A-12 DC-DC Converter - 15W - 9.2~18V in 12V out | 15W | 12V | 1.25A | Indoor | $10.39 | View |
| Mean Well PSD-15A-05 DC-DC Converter - 15W - 9.2~18V in 5V out | 15W | 5V | 3A | Indoor | $9.45 | View |
