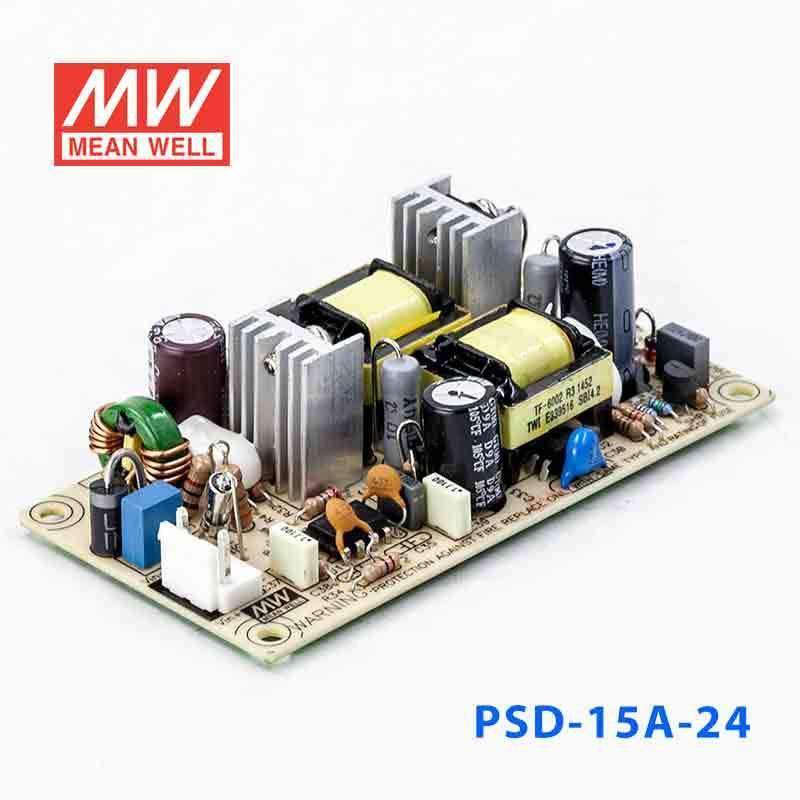

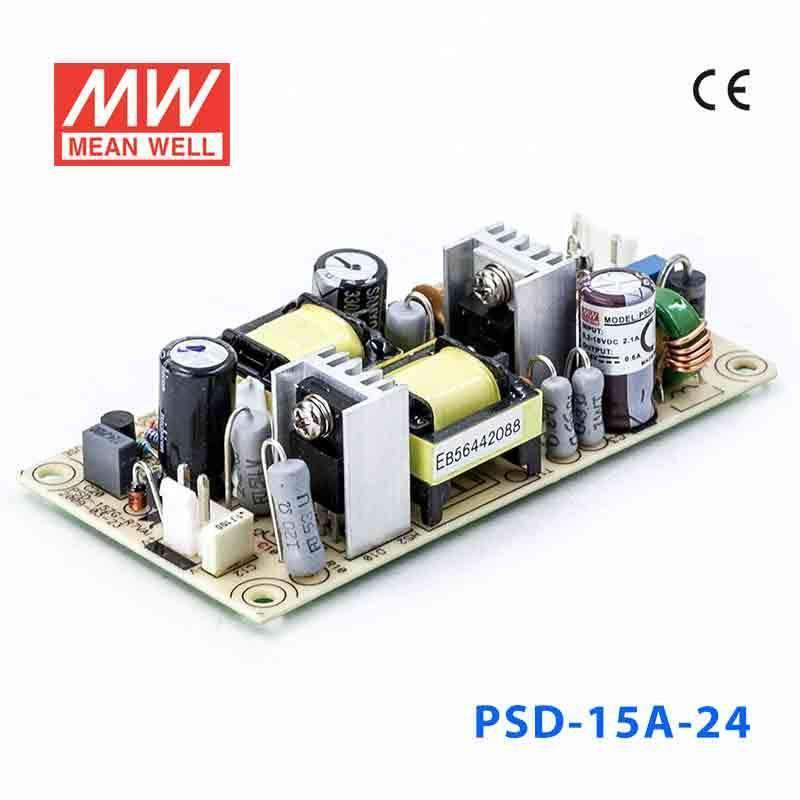

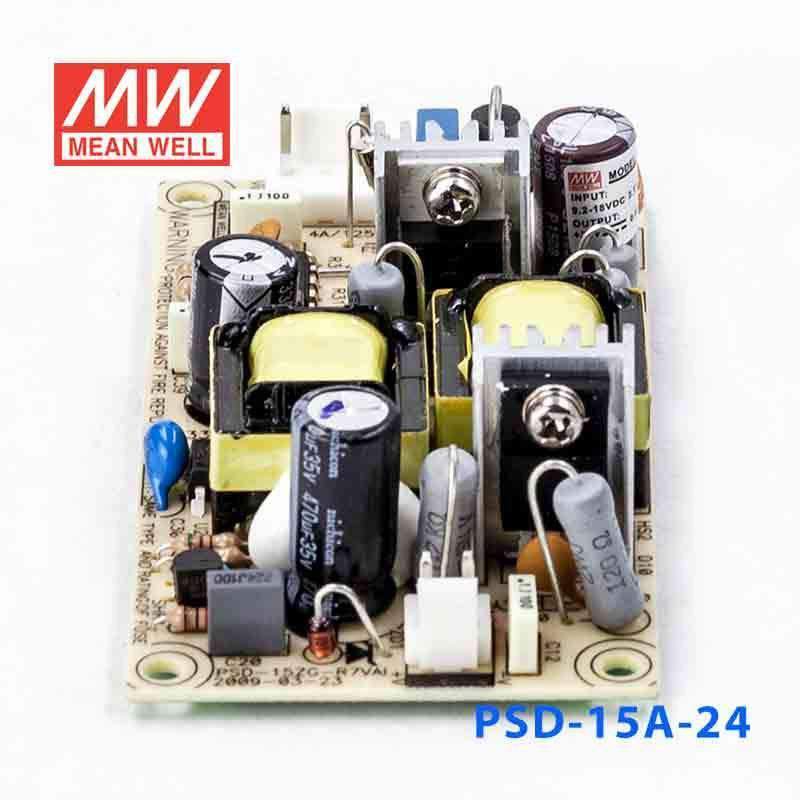

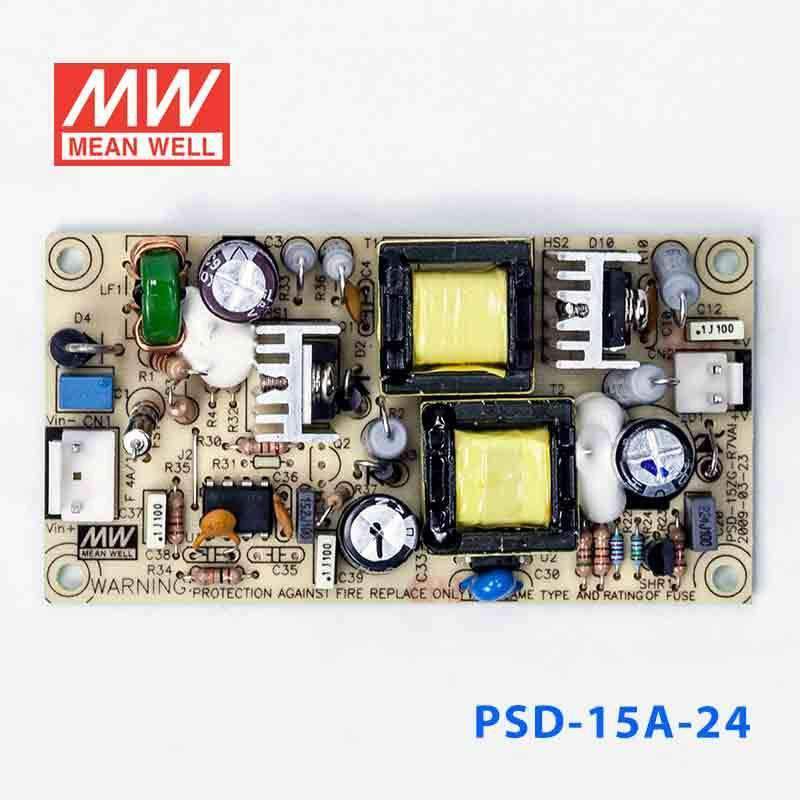

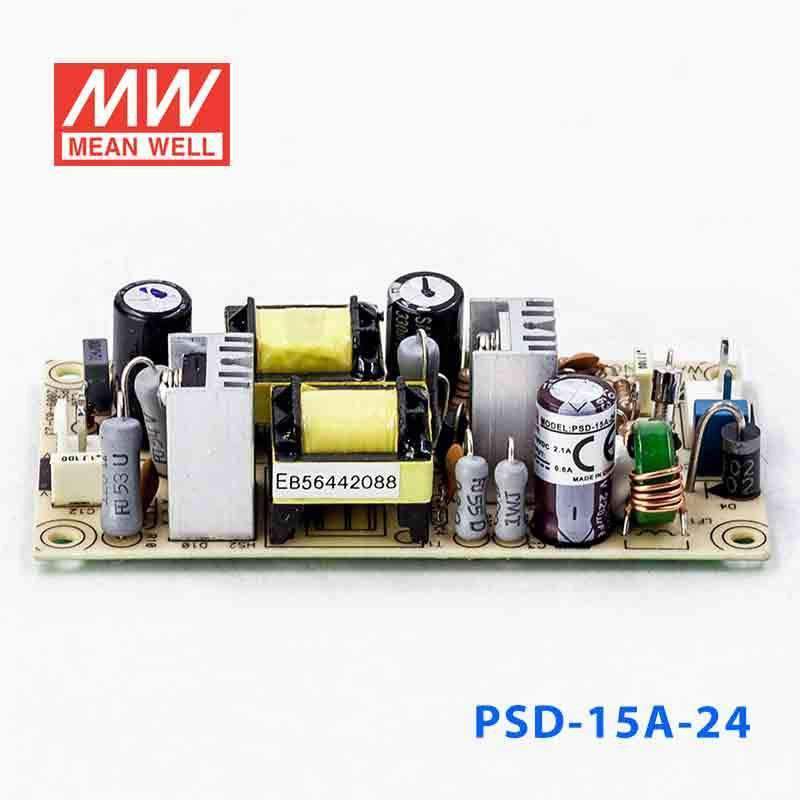

Mean Well PSD-15A-24 DC-DC Converter - 14.4W - 9.2~18V in 24V out
Description
Description
The PSD-15A is a 15W Mean Well power converter.
Key Features
- ✓ 2KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating14.4 Watt
-
Output Voltage24 Volt
-
Rated Current0.66 Ampere
-
Input Voltage9.2V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length3.7 in
-
Width1.93 in
-
Height0.98 in
-
Weight0.18 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the PSD-15A-24 for a 24V sensor, relay, or control circuit?
Yes, it is a constant-voltage 24V converter rated for 14.4W. It fits 24V control and signaling loads that stay within the unit's rated 14.4W output.
Is the PSD-15A-24 appropriate for embedded 24V electronics in industrial equipment?
It is intended for compact 24V power conversion where a regulated 24V output is needed from a 9-18VAC input. Its 94.0 x 49.0 x 25.0 mm body and 0.081 kg weight make it practical for enclosed industrial assemblies.
Can this model support a small 24V automation load from a low-voltage source?
Yes, the PSD-15A-24 accepts 9-18VAC input and delivers a constant 24V output. It is suited to smaller 24V automation loads as long as the total demand stays within 14.4W.
Can the PSD-15A-24 be used outdoors or in exposed locations?
The specs provide an operating range of -10°C to +60°C, but they do not list an IP rating. That supports temperature planning, but it does not establish outdoor exposure resistance on its own.
What are the main PSD family alternatives to the PSD-15A-24?
The listed PSD range includes 5W 5V 1A models, 15W 5V 3A models, 15W 12V 1.25A models, 14.4W 24V 666A models, 25W 5V 5A models, 30W 12V 2.5A models, 30W 24V 1.25A models, 30W 5V 6A models, 45W 12V 3.75A models, 45W 24V 1.88A models, and 45W 5V 9A models. This unit is one of the 24V options and is rated at 14.4W.
Other PSD-15A Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PSD-15A-5 Switching Power Supply 15W 5V | 15W | 5V | 3A | Indoor | $11.56 | View |
| Mean Well PSD-15A-12 DC-DC Converter - 15W - 9.2~18V in 12V out | 15W | 12V | 1.25A | Indoor | $10.39 | View |
| Mean Well PSD-15A-05 DC-DC Converter - 15W - 9.2~18V in 5V out | 15W | 5V | 3A | Indoor | $9.45 | View |
