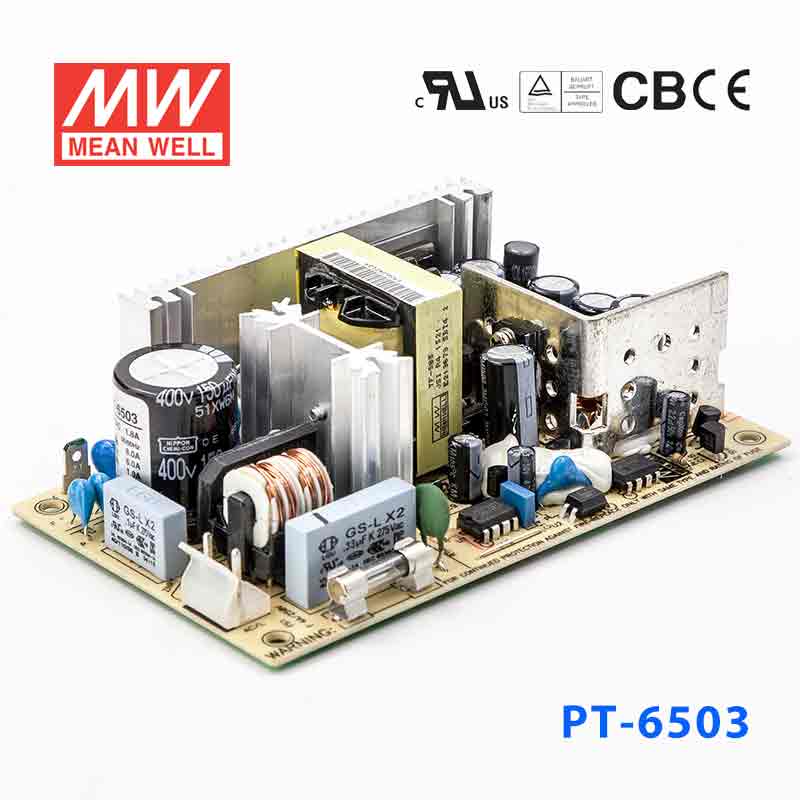

Mean Well PT-6503 Power Supply 65W 5V 5V 12V 6A
Overview
PT-6503 is the CH1: 3.3V / CH2: 5V / CH3: 12V output model of this series: rated current CH1: 6A / CH2: 6A / CH3: 1A, rated power Total power max. 61.8W(CH1+CH2 max. 54W), typical efficiency 72%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 65KHz
- 2 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 / CH2 / CH3
- DC VOLTAGE
- CH1: 3.3V / CH2: 5V / CH3: 12V
- RATED CURRENT
- CH1: 6A / CH2: 6A / CH3: 1A
- CURRENT RANGE
- CH1: 0 ~ 7A / CH2: 0.2 ~ 10A / CH3: 0 ~ 1.2A
- RATED POWER
- Total power max. 61.8W(CH1+CH2 max. 54W)
- RIPPLE & NOISE (max.)Note.2
- CH1: 50mVp-p / CH2: 50mVp-p / CH3: 100mVp-p
- VOLTAGE ADJ. RANGE
- CH1: 3 ~ 3.6V
- VOLTAGE TOLERANCENote.3
- CH1: ±3.0% / CH2: +4,-2% / CH3: ±8.0%
- LINE REGULATION
- CH1: ±1.0% / CH2: ±1.0% / CH3: ±2.0%
- LOAD REGULATION
- CH1: ±3.0% / CH2: ±3.0% / CH3: ±8.0%
- SETUP, RISE TIME
- 800ms, 50ms at full load
- HOLD UP TIME (Typ.)
- 60ms at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(-), AC/L(+)]
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 72%
- AC CURRENT (Typ.)
- 1.8A/115VAC 0.9A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 20A/115V 40A/230V
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- 120 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 6.75V on +5V Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.

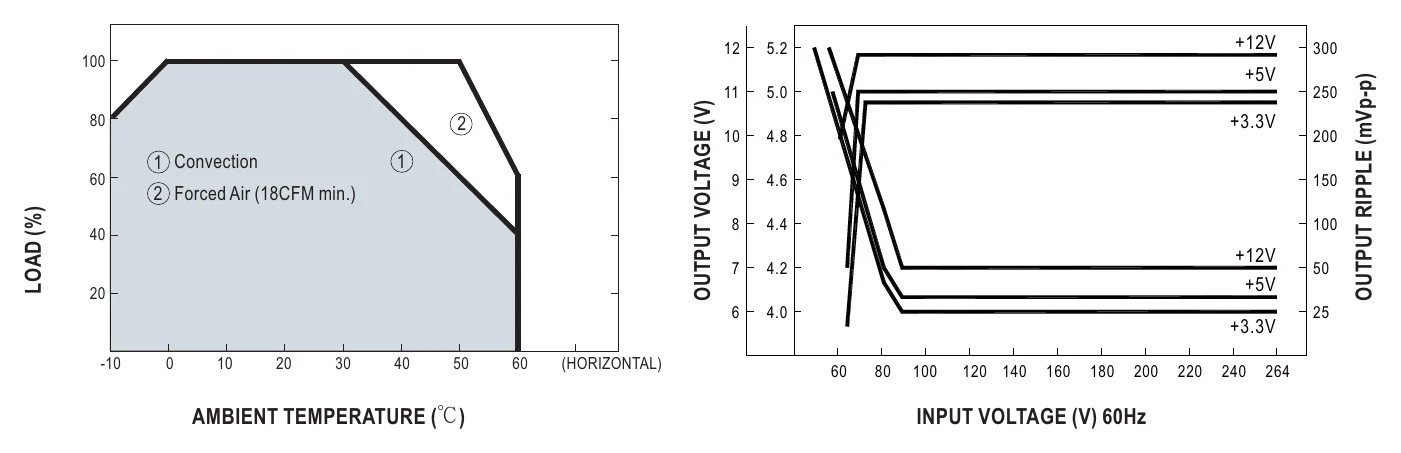

- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC 1min.
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,11, BS EN/EN55035,light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2915.9K hrs min. Telcordia SR-332 (Bellcore) ; 392.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 127*76*42mm (L*W*H)
- PACKING
- 0.28Kg; 54pcs/16.2Kg/1.28CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. Mounting holes M1 and M2 should be grounded for EMI purposes.
- 6. Heat Sink HS1,HS2 can not be shorted.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

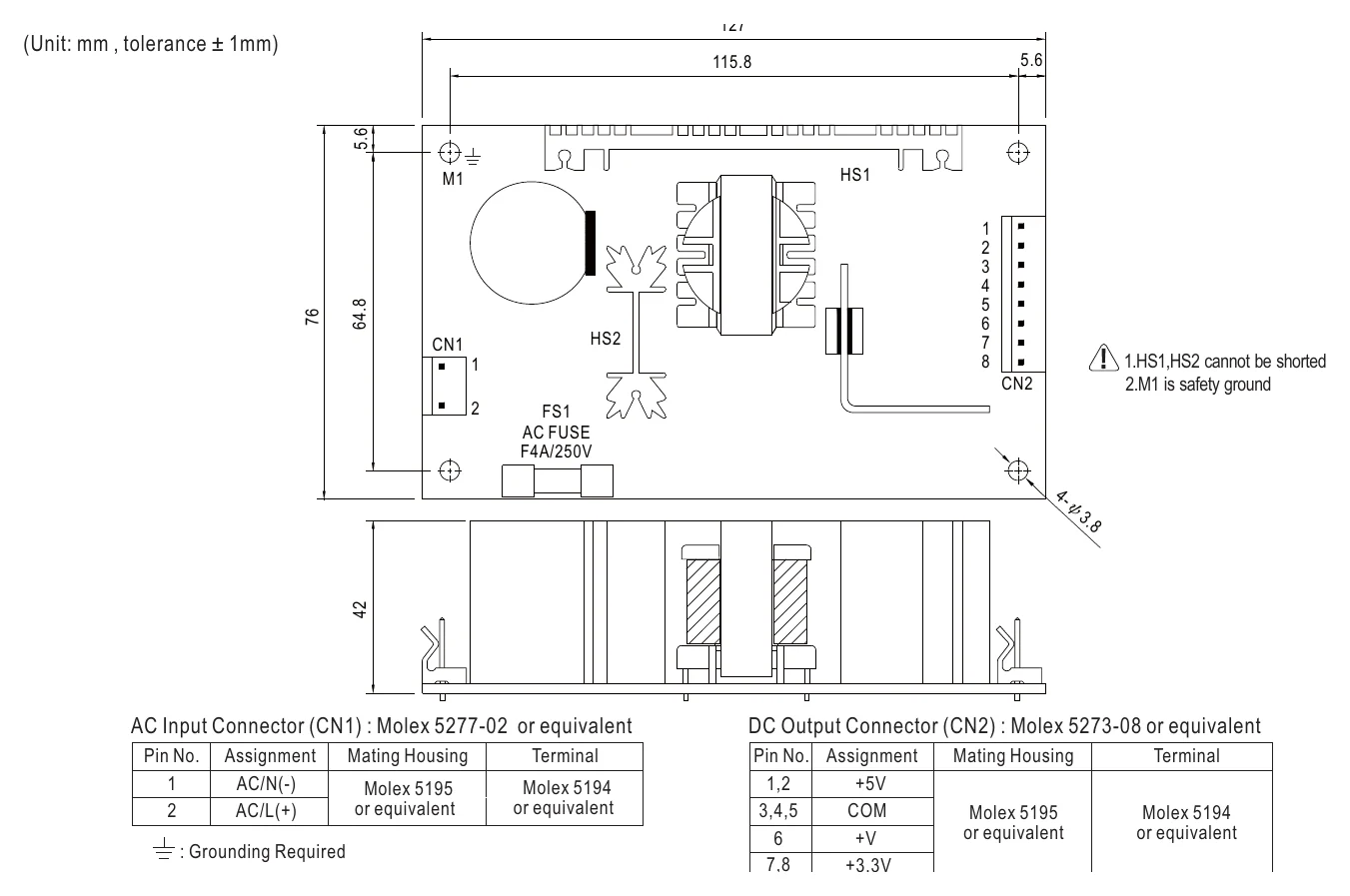

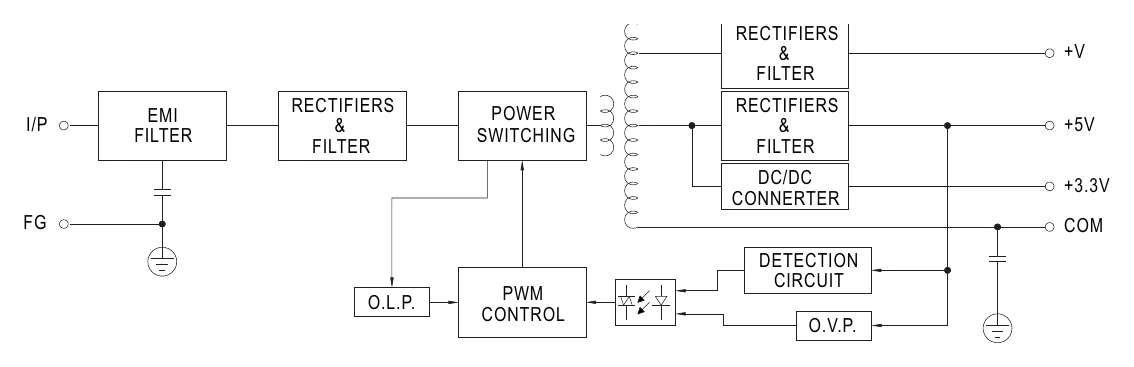

Technical drawings
Downloads
Certificates7
Test reports1
Catalogues1
FAQ
Can I use the PT-6503 for a 5V industrial controller with higher current demand?
The PT-6503 provides a 5V constant voltage output rated at 6A, with total power rated at 61.8W. That makes it a stronger fit for 5V control hardware or logic-heavy industrial assemblies than the 3A models in the same series.
Is the PT-6503 suitable for embedded or IT hardware that needs multiple 5V rails plus 12V?
Its product configuration is 3.3V, 5V, and 12V, with rated currents of 6A, 6A, and 1A respectively. With a 61.8W rating, it is appropriate for systems built around 5V power distribution with an additional 12V rail in the same supply family.
Can the PT-6503 power a denser automation assembly than the PT-45 models?
Compared with the 45W siblings, the PT-6503 is rated at 61.8W and 5V 6A. Its 127 x 76 x 42 mm body and 0.28 kg weight reflect that higher-capacity class.
Is the PT-6503 designed for outdoor installations?
The specified operating temperature range is -10°C to +60°C, but no IP rating is listed in the provided specs. It is therefore better matched to indoor equipment or protected enclosures rather than exposed outdoor conditions.
How does the PT-6503 compare with the rest of the PT series group?
The PT-6503 is rated at 61.8W with a 5V 6A output. It features a triple output configuration (3.3V, 5V, 12V) and universal AC input, distinguishing it from single-output or lower-power models in the series.
