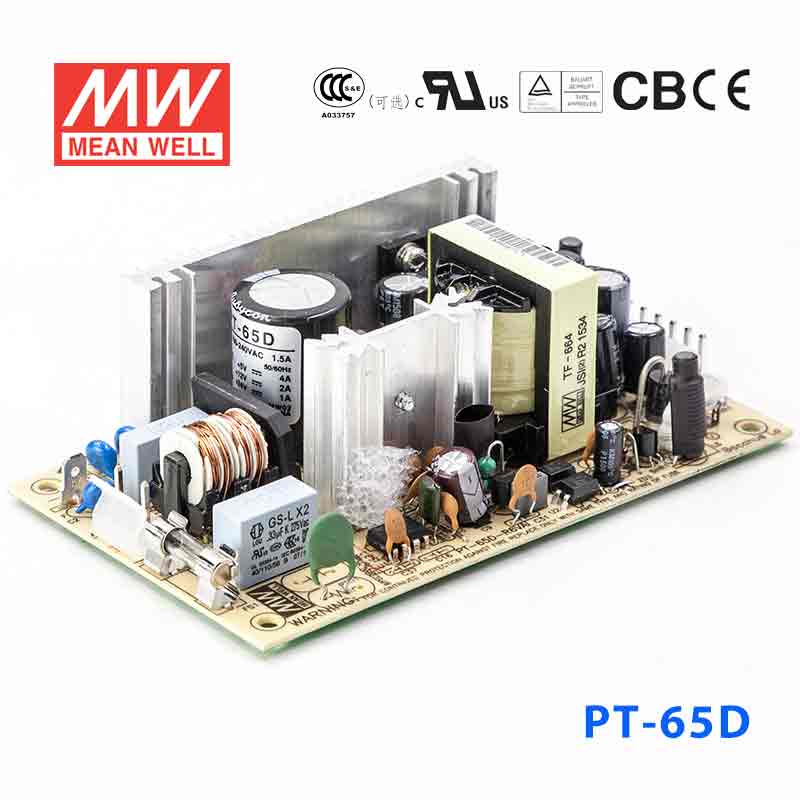

Mean Well PT-65D Power Supply 65W 5V 12V 24V 4A
Overview
PT-65D is the 5V 12V 24V output model of this series: rated current 4A 2A 1A, rated power 68W, typical efficiency 79%.
Features
- Universal AC input/Full range
- Low leakage current<0.5mA
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 65KHz
- 2 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 CH2 CH3
- DC VOLTAGE
- 5V 12V 24V
- RATED CURRENT
- 4A 2A 1A
- CURRENT RANGE
- 0.5 ~ 5A 0.2 ~ 4A 0.2 ~ 1.3A
- RATED POWER
- 68W
- OUTPUT POWER (max.)
- Rated output power for convection; 72W with 18CFM min. Forced air
- RIPPLE & NOISE (max.)Note.2
- 50mVp-p 100mVp-p 200mVp-p
- VOLTAGE ADJ. RANGE
- CH1:4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ±4.0% ±6.0% ±6.0%
- LINE REGULATION
- ±1.0% ±2.0% ±3.0%
- LOAD REGULATION
- ±2.0% ±5.0% ±5.0%
- SETUP, RISE TIME
- 800ms, 20ms at full load
- HOLD UP TIME (Typ.)
- 60ms at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~370VDC
- FREQUENCY RANGE
- 47 ~ 440Hz
- EFFICIENCY(Typ.)
- 79%
- AC CURRENT (Typ.)
- 1.5A/115VAC 0.9A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 20A/115VAC 40A/230VAC
- LEAKAGE CURRENT
- <0.75mA
PROTECTION
- OVERLOAD
- 74.8 ~ 98.6W rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed.
- OVER VOLTAGE
- 5.75 ~ 6.75VDC on CH1 Protection type : Hiccup mode, recovers automatically after fault condition is removed.
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.04%/℃ (0 ~ 50℃) on +5V output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC 1min.
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 3291.3K hrs min. Telcordia SR-332 (Bellcore) ; 456.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 127*76*42mm (L*W*H)
- PACKING
- 0.25Kg; 54pcs/15.9Kg/1.28CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. Mounting holes M1 and M2 should be grounded for EMI purposes.
- 6. Heat Sink HS1,HS2 can not be shorted.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Certificates8
Test reports1
Catalogues1
FAQ
Can I use the PT-65D for automation equipment that needs 5V, 12V, and 24V from one supply?
Yes, the PT-65D is the PT series option in this list whose product name identifies 5V, 12V, and 24V outputs in one constant-voltage unit. With 68W total power and 4A on the 5V rail, it fits control systems that combine low-voltage logic with 12V and 24V subsystems.
Is the PT-65D suitable for compact industrial control panels with mixed DC voltage requirements?
It is suited to compact panels that need several low-voltage rails from a single supply. Its 127.0 × 76.0 × 42.0 mm dimensions and 0.25 kg weight help in tighter enclosures while still providing 68W total output capacity.
Would the PT-65D work for embedded systems that mix 5V logic and 24V control circuits?
Yes, this model is relevant where a 5V rail is needed alongside 12V and 24V rails in the same assembly. The wide 90-264VAC input range also makes it easier to standardize the same design across different AC input conditions.
Can the PT-65D be used in monitoring or automation equipment that combines different DC bus levels?
Yes, the PT-65D is intended for multi-output constant-voltage use cases rather than a single-rail design. Its 68W rating and 5V output current of 4A make it a fit when the system architecture uses 5V together with 12V and 24V rails.
How does the PT-65D compare with the other PT series models?
On the PT-65 series sheet, the PT-65A is 60W with 5V 5.5A, 12V and -5V outputs; the PT-65B is 63.5W with 5V 5.5A, 12V and -12V; and the PT-65C is 65W with 5V 5.5A, 15V and -15V. The PT-65D itself is 68W with 5V 4A, 12V 2A and 24V 1A, making it the highest-rated model and the only one with a 24V output.
Is the PT-65D suitable for outdoor installations or temperature-sensitive locations?
The listed operating temperature range is -10°C to +60°C, with output derating at higher temperatures per the datasheet's derating curve, and no IP rating is provided in the supplied specs. That means it should be evaluated for locations that stay within -10°C to +60°C, with any required ingress protection handled separately.
