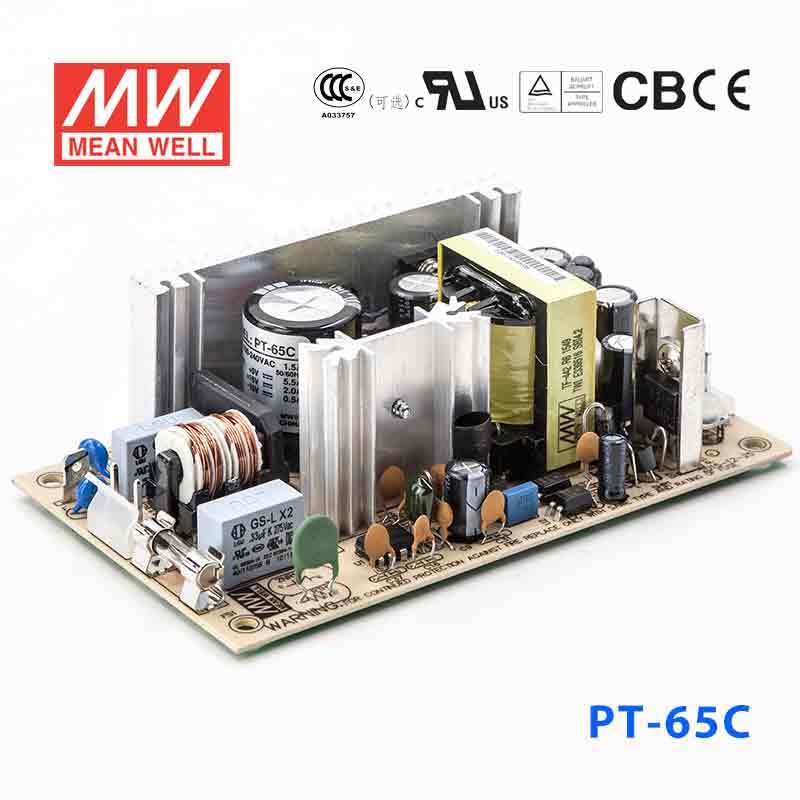

Mean Well PT-65C Power Supply 65W 5V 15V -15V 5.5A
Overview
PT-65C is the 5V 15V -15V output model of this series: rated current 5.5A 2A 0.5A, rated power 65W, typical efficiency 77%.
Features
- Universal AC input/Full range
- Low leakage current<0.5mA
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 65KHz
- 2 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 CH2 CH3
- DC VOLTAGE
- 5V 15V -15V
- RATED CURRENT
- 5.5A 2A 0.5A
- CURRENT RANGE
- 0.4 ~ 7A 0.2 ~ 2.6A 0 ~ 0.7A
- RATED POWER
- 65W
- OUTPUT POWER (max.)
- Rated output power for convection; 72W with 18CFM min. Forced air
- RIPPLE & NOISE (max.)Note.2
- 50mVp-p 120mVp-p 100mVp-p
- VOLTAGE ADJ. RANGE
- CH1:4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ±4.0% ±7.0% ±5.0%
- LINE REGULATION
- ±1.0% ±2.0% ±1.0%
- LOAD REGULATION
- ±3.0% ±4.0% ±1.0%
- SETUP, RISE TIME
- 800ms, 20ms at full load
- HOLD UP TIME (Typ.)
- 60ms at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~370VDC
- FREQUENCY RANGE
- 47 ~ 440Hz
- EFFICIENCY(Typ.)
- 77%
- AC CURRENT (Typ.)
- 1.5A/115VAC 0.9A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 20A/115VAC 40A/230VAC
- LEAKAGE CURRENT
- <0.75mA
PROTECTION
- OVERLOAD
- 73 ~ 95W rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed.
- OVER VOLTAGE
- 5.75 ~ 6.75VDC on CH1 Protection type : Hiccup mode, recovers automatically after fault condition is removed.
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.04%/℃ (0 ~ 50℃) on +5V output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC 1min.
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 3291.3K hrs min. Telcordia SR-332 (Bellcore) ; 456.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 127*76*42mm (L*W*H)
- PACKING
- 0.25Kg; 54pcs/15.9Kg/1.28CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. Mounting holes M1 and M2 should be grounded for EMI purposes.
- 6. Heat Sink HS1,HS2 can not be shorted.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Certificates8
Test reports1
Catalogues1
FAQ
Can I use the PT-65C for instrumentation or signal-processing equipment that needs 5V and plus/minus 15V rails?
Yes, the PT-65C is configured for applications that need 5V along with 15V and -15V outputs from one constant-voltage supply. With 65W total power and 5.5A on the 5V rail, it fits mixed-signal equipment where logic and analog stages share a common power source.
Is the PT-65C appropriate for embedded control hardware that combines digital logic with analog circuitry?
It is a practical option when the system needs a 5V logic rail plus 15V and -15V rails for analog sections. The 90-264VAC input range also supports deployments across a broad range of AC input conditions.
Can the PT-65C be used in factory test fixtures or lab equipment with multiple low-voltage rails?
Yes, this model is suited to compact test or measurement assemblies that need 5V together with 15V and -15V outputs. Its 127.0 × 76.0 × 42.0 mm size and 0.25 kg weight also help where space is limited.
Would the PT-65C work for automation subsystems that rely on 5V control electronics and plus/minus 15V analog stages?
Yes, that is the kind of mixed-rail application this version is designed for. The 65W rating, constant-voltage operation, and combined 5V, 15V, and -15V outputs make it relevant for control and analog interface assemblies.
What is the difference between the PT-65C and the other PT family models?
On the PT-65 series sheet, the PT-65A is 60W with 5V 5.5A, 12V and -5V outputs; the PT-65B is 63.5W with 5V 5.5A, 12V and -12V; and the PT-65D is 68W with 5V 4A, 12V and 24V. The PT-65C itself is 65W with 5V 5.5A, and its additional rails are 15V 2A and -15V 0.5A.
Can the PT-65C be used in outdoor locations or wider temperature environments?
The product specs list an operating temperature range of -10°C to +60°C, with output derating at higher temperatures per the derating curve, but no IP rating is provided. For environment planning, keep the application within -10°C to +60°C and confirm that any required ingress protection is provided outside the power supply itself.
