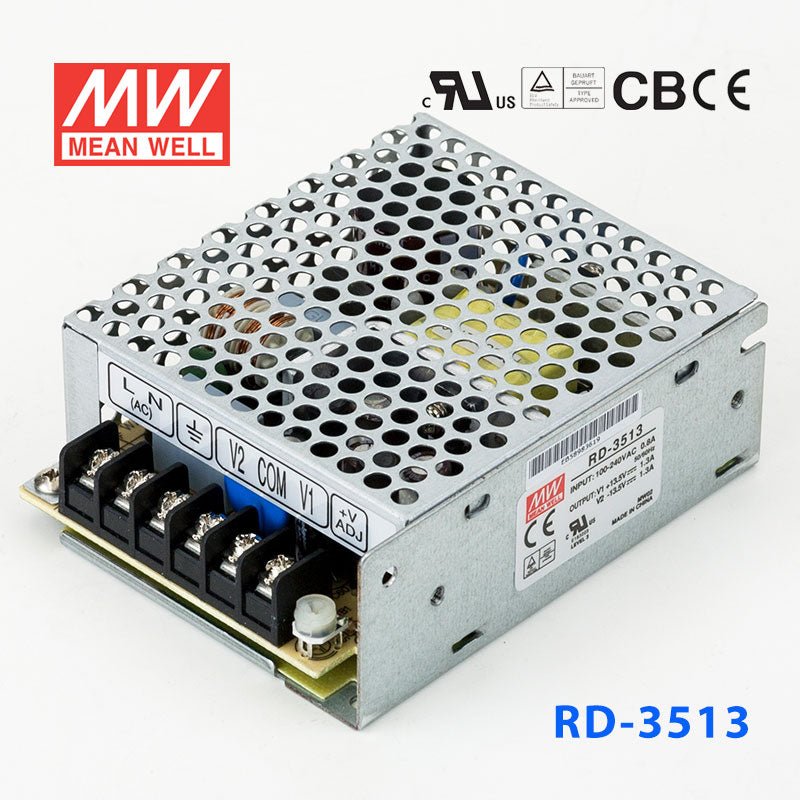

Mean Well RD-3513 Power Supply 35W 13.5V -13.5V 1.3A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RD-3513 Power Supply 35W 13.5V -13.5V 1.3A
Overview
RD-3513 is the 13.5V / -13.5V output model of this series: rated current 1.3A / 1.3A, rated power 35.1W, typical efficiency 80%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105℃ long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70℃
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 / CH2
- DC VOLTAGE
- 13.5V / -13.5V
- RATED CURRENT
- 1.3A / 1.3A
- CURRENT RANGE
- 0 ~ 2A / 0 ~ 1.5A
- RATED POWER
- 35.1W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p / 120mVp-p
- VOLTAGE ADJ. RANGE
- CH1: 11.5 ~ 15.5V
- VOLTAGE TOLERANCENote.3
- ±4.0% / ±4.0%
- LINE REGULATIONNote.4
- ±0.5% / ±0.5%
- LOAD REGULATIONNote.5
- ±3.0% / ±3.0%
- SETUP, RISE TIME
- 500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 80ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 80%
- AC CURRENT (Typ.)
- 0.8A/115VAC 0.55A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 45A/230VAC
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1: 16.87 ~ 19.57V Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)on CH1 output
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 3096.5K hrs min. Telcordia SR-332 (Bellcore) ; 541.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 99*82*36mm (L*W*H)
- PACKING
- 0.3Kg; 45pcs/14Kg/0.76CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation. (In order to meet tolerance, it is recommended that CH1 load >15% rated current for A type and CH1 load > 10% rated current for B type.)
- 4. Line regulation is measured from low line to high line at rated load.
- 5. Load regulation is measured from 0% to 100% rated load.
- 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the RD-3513 for analog or instrumentation equipment that needs plus and minus voltage rails?
Yes. The RD-3513 is a dual output constant voltage supply with +13.5V and -13.5V outputs. Its listed output current is 1.3A and total power is 35.1W, which fits lower-power equipment that needs symmetric voltage rails.
Is the RD-3513 suitable for bench or embedded test systems that use bipolar power rails?
It can be used where a compact AC-DC supply with +13.5V and -13.5V outputs is needed. The unit is rated at 35.1W and uses an 88-264VAC input range. That makes it appropriate for embedded or industrial electronics that require dual polarity rails from universal AC input.
Can the RD-3513 be used in small industrial enclosures with vibration or elevated ambient temperatures?
Yes. The feature list includes 5G vibration resistance and operation up to +70°C. The full operating temperature range is -25°C to +70°C, which supports use in enclosed equipment exposed to cold starts or warmer cabinet conditions.
Is the RD-3513 indoor-only, or can it be used outdoors?
These specifications do not include an IP rating, so it should be treated as an indoor power supply or one that needs a protective enclosure. The temperature range is -25°C to +70°C, but no ingress protection is stated for outdoor exposure.
How does the RD-3513 differ from the other RD models listed in this group?
The RD-3513 is a dual output model with +13.5V and -13.5V rails, rated at 35.1W. Unlike the RD-35A and RD-35B which provide 5V primary outputs, the RD-3513 is designed for symmetric bipolar applications. It shares the same 99x82x36mm dimensions and universal 88-264VAC input as other RD-35 series units.
