Mean Well

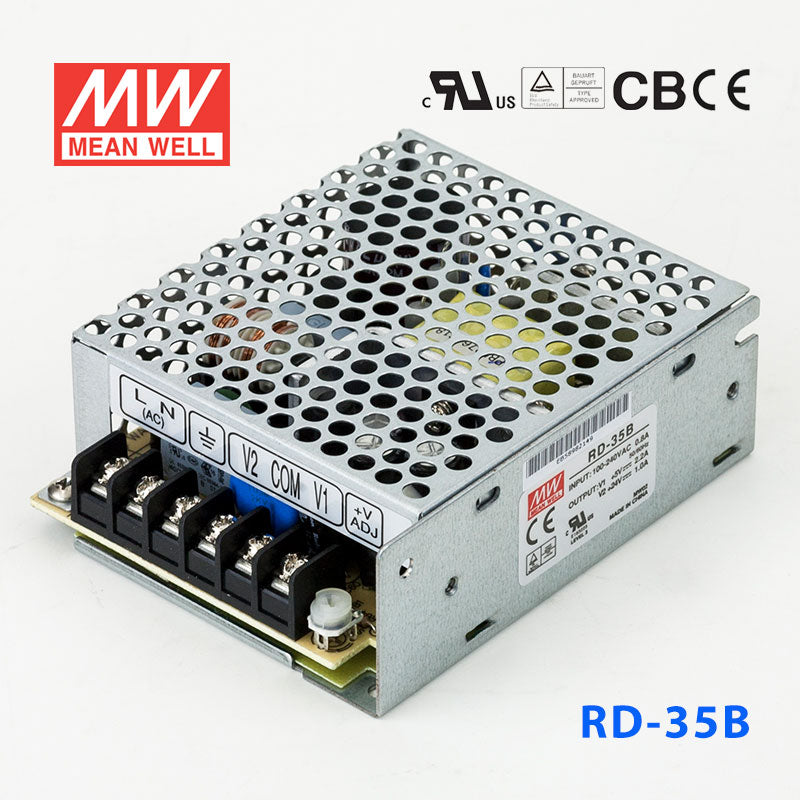

Mean Well RD-35B Power Supply 35W 5V 24V 2.2A

miniature sizeeconomicalwithstand 5G vibration and 70°C operationdual output
SKU RD-35B
$17.51 USD
Shipping calculated at checkout.

Select model — 5 in this family

RD-35B
|

Your order will be processed within 24 hours

Overview

RD-35B is the 5V / 24V output model of this series: rated current 2.2A / 1A, rated power 35W, typical efficiency 80%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RD-35BSpecifications from the official datasheet (2024-11-22 edition)

OUTPUT

OUTPUT NUMBER
CH1 / CH2
DC VOLTAGE
5V / 24V
RATED CURRENT
2.2A / 1A
CURRENT RANGE
0 ~ 4A / 0 ~ 1.3A
RATED POWER
35W
RIPPLE & NOISE (max.)Note.2
80mVp-p / 120mVp-p
VOLTAGE ADJ. RANGE
CH1: 4.75 ~ 5.5V
VOLTAGE TOLERANCENote.3
±2.0% / ±5.0%
LINE REGULATIONNote.4
±0.5% / ±1.0%
LOAD REGULATIONNote.5
±0.5% / ±2.0%
SETUP, RISE TIME
500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
80ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
80%
AC CURRENT (Typ.)
0.8A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ.)
COLD START 45A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)on CH1 output
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF
3096.5K hrs min. Telcordia SR-332 (Bellcore) ; 541.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
99*82*36mm (L*W*H)
PACKING
0.3Kg; 45pcs/14Kg/0.76CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation. (In order to meet tolerance, it is recommended that CH1 load >15% rated current for A type and CH1 load > 10% rated current for B type.)
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 0% to 100% rated load.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RD-35B Mechanical Specification
Mechanical Specification
RD-35B Block Diagram
Block Diagram
RD-35B Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RD-35B for a compact system that needs 5V control power and a 24V rail?

Yes. The RD-35B is a dual output constant voltage supply with 5V and 24V outputs. Its listed 5V output current is 2.2A and total power is 35W, which suits lower-power embedded, control, or automation assemblies using both voltages.

Is the RD-35B a fit for small industrial or embedded devices with universal AC input requirements?

It can fit those applications because it accepts 88-264VAC input and provides dual constant voltage outputs. The unit is rated at 35W total power and comes in a compact 99.0 x 82.0 x 36.0 mm package. That combination works well for smaller control hardware using 5V and 24V rails.

Can the RD-35B be used in enclosed equipment that experiences vibration or temperature variation?

Yes. The listed features include 5G vibration resistance and operation up to +70°C. Its operating temperature range is -25°C to +70°C, which supports use in protected industrial enclosures with changing ambient conditions.

Is the RD-35B rated for indoor or outdoor environments?

These specifications do not provide an IP rating, so it should be used indoors or inside a protective enclosure rather than in exposed outdoor conditions. The temperature range is -25°C to +70°C, but no ingress protection is stated.

What distinguishes the RD-35B from other RD series models in the same list?

The RD-35B is a 35W model with a listed 5V output current of 2.2A and 24V output current of 1A. Other specified siblings are RD-35A at 32W with 5V 4A and 12V 1A, RD-3513 at 35.1W with 13.5V 1.3A and -13.5V 1.3A, RD-50A at 54W with 5V 6A, RD-50B at 53.6W with 5V 4A, RD-65A at 66W with 5V 6A, RD-65B at 68W with 5V 4A, RD-85A and RD-85B at 88W with 5V 8A, RD-125A at 130.9W with 5V 7.7A, and RD-125B at 133.4W with 5V 4.6A.
